Bullet quick splice wire terminals FRD&MPD type

Send Inquiry
Category: Tag:
Description

Description

Description of male wire crimp connectors

MalMale wire crimp connectors also named wire crimp connectors or bullet quick splice.Female bullet quick splice are used to terminate stranded wires,creating a quality,reliable connection by ensuring each wire strand conducts current when properly crimped.Splice wire terminals especially useful when multiple reconnections could be necessary within terminal blocks or other similar devices. No breakage of wire strands when wire is bent,under stress or in a vibration environment.Wire terminals designs allow two individual stranded conductors to be connected to the same termination,most beneficial in jumpering or other similar applications.

Material of female bullet quick splice

Tin plated copper,PVC

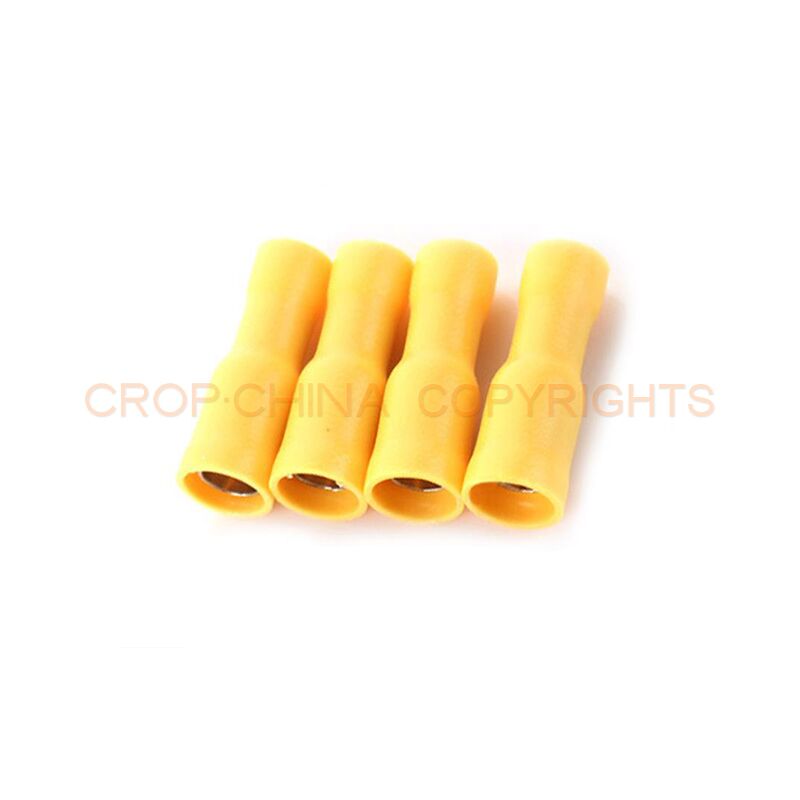

Product picture of splice wire terminals

male wire crimp connectors,wire crimp connectors,female bullet quick splice,splice wire terminals, wire terminals
male wire crimp connectors,wire crimp connectors,female bullet quick splice,splice wire terminals, wire terminals
Item No. Material thickness
(mm)
Dimension(mm) Colour Specification
D b F L H
FRD 1.25-156 0.4 1.7 4 6.3 24.5 13.0 Red Conductor section:0.5-1.5mm2
A.W.G.: 22-16
Max Current:I max.=10A
FRD 2-156 0.4 2.3 4 6.3 24.5 14.0 Blue Conductor section:1.5-2.5mm2
A.W.G.: 16-14
Max Current:I max.=15A
FRD 2-195 0.4 5 7 25.5
FRD 5.5-195 0.4 3.4 5 7 29.5 14.0 Yellow Conductor section:4-6mm2
A.W.G.: 12-10
Max Current:I max.=24A
male wire crimp connectors,wire crimp connectors,female bullet quick splice,splice wire terminals, wire terminals
Item No. Material thickness
(mm)
Dimension(mm) Colour Specification
D d F L H
MPD 1.25-156 0.4 1.7 4 11 21.0 10.0 Red Conductor section:0.5-1.5mm2
A.W.G.: 22-16
Max Current:I max.=10A
MPD 2-156 0.4 2.3 4 11 21.0 10.0 Blue Conductor section:1.5-2.5mm2
A.W.G.: 16-14
Max Current:I max.=15A
MPD 2-195 0.4 5
MPD 5.5-195 0.4 4.3 5 12 25 13 Yellow Conductor section:4-6mm2
A.W.G.: 12-10
Max Current:I max.=24A

Related Product

Bullet quick splice wire terminals

Features of bullet quick splice

1.Smooth funnel entry to make wire insertion easier.
2.Secure contacting even after multiple reconnections.
3.Long-term contact resistance.
4.No fraying of strands.
5.No breakage of wire strands when wire is bent,under stress or in vibration environment.
