Description of cold crimping wire terminal

Cold crimping wire terminal are also named crimping wire terminal or wire terminal connector.Terminal connector are used to terminate stranded wires,creating a quality,reliable connection by ensuring each wire strand conducts current when properly crimped.Especially useful when multiple reconnections could be necessary within terminal blocks or other similar devices. No breakage of wire strands when wire is bent,under stress or in a vibration environment.Twin ferrule designs allow two individual stranded conductors to be connected to the same termination,most beneficial in jumpering or other similar applications.

Material of crimping wire terminal

Tin plated copper,PVC

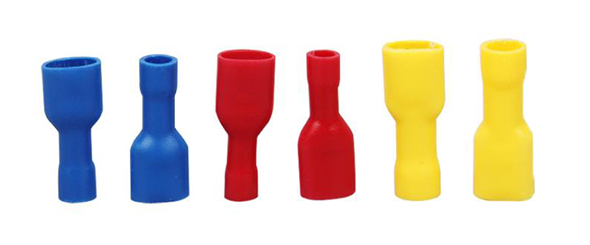

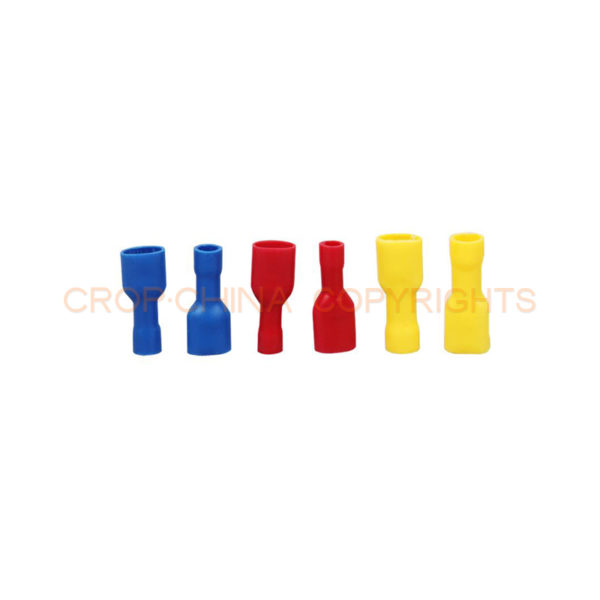

Product picture of terminal connector

Cold crimping wire terminal,crimping wire terminal,wire terminal,wire terminal connector,terminal connector
Cold crimping wire terminal,crimping wire terminal,wire terminal,wire terminal connector,terminal connector
Item No. Name Tab
(mm)
Dimension(mm) Colour Specification
B D d L W
FDFD 1.25-110(5) 0.5X2.8 3.2 4 1.7 19 6.2 Red Conductor section:0.5-1.5mm2
A.W.G.: 22-16
Max Current:I max.=10A
FDFD 1.25-187(5) 0.5X4.75 5 20 7.8
FDFD 1.25-187(8) 0.8X4.75 5 20 7.8
FDFD 1.25-250 0.8X6.3 6.6 22.5 9.3
FDFD 2-110(5) 0.5X2.8 3.2 4.5 2.3 19 6.2 Blue Conductor section:1.5-2.5mm2
A.W.G.: 16-14
Max Current:I max.=15A
FDFD 2-187(5) 0.5X4.75 5 20 7.8
FDFD 2-187(8) 0.8X4.75 5 20 7.8
FDFD 2-250 0.8X6.3 6.6 23 9.3
FDFD 5.5-187(5) 0.5X4.8 5 5.7 3.4 23 7.8 Yellow Conductor section:4-6mm2
A.W.G.: 12-10
Max Current:I max.=24A
FDFD 5.5-250 0.8X6.3 6.6 23 9.3
FDFD 5.5-375 1.2X9.4 10.9 30 13

Related Product

Wire terminal connector

Features of wire terminal connector

1.Smooth funnel entry to make wire insertion easier.
2.Secure contacting even after multiple reconnections.
3.Long-term contact resistance.
4.No fraying of strands.
5.No breakage of wire strands when wire is bent,under stress or in vibration environment.
