Welding Cable Lugs

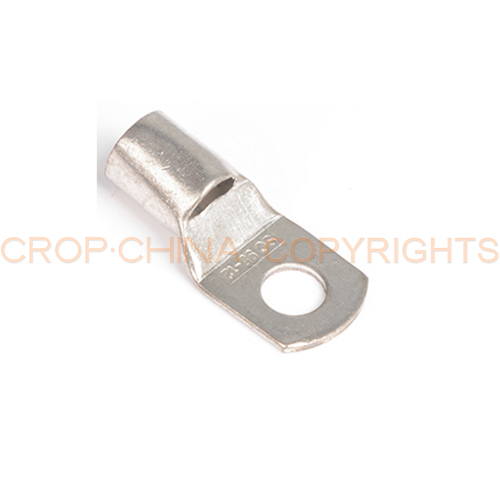

Welding cable lugs also named termination lug.There are many different types of welding cable lugs, but all of them have the same basic purpose: to connect the cables to the electric equipment.Welding cable lugs come in a variety of sizes and shapes, so it is important to select the right one for the application.
Cable Lugs Material
Termination lug are made from a variety of materials, including copper, aluminum and bimetallic.
Types of lugs
Crimping Cable Lugs JG Series
| Model | Ø | D(mm) | d(mm) | L(mm) |
| JG-10 | Ø6.2 Ø8.5 | 8 | 5.4 | 38 |
| JG-16 | Ø6.2 Ø8.5 Ø10.5 | 9 | 6.5 | 41 |
| JG-25 | Ø6.2 Ø8.5 Ø10.5 | 10 | 7 | 46 |
| JG-35 | Ø6.2 Ø8.5 Ø10.5 Ø12.5 | 11 | 8 | 52 |
| JG-50 | Ø8.5 Ø10.5 Ø12.5 | 13 | 10 | 54 |
| JG-70 | Ø8.5 Ø10.5 Ø12.5 Ø14.5 | 16 | 12 | 61 |
| JG-95 | Ø8.5 Ø10.5 Ø12.5 Ø14.5 | 18 | 14 | 66 |
| JG-120 | Ø10.5 Ø12.5 Ø14.5 Ø16.5 | 19 | 15 | 73 |
| JG-150 | Ø10.5 Ø12.5 Ø14.5 Ø16.5 | 22 | 17 | 77 |
| JG-185 | Ø12.5 Ø14.5 Ø16.5 | 24 | 19 | 86 |
| JG-240 | Ø12.5 Ø14.5 Ø16.5 | 26 | 21 | 93 |
| JG-300 | Ø16.5 Ø18.5 | 30 | 24 | 103 |
| JG-400 | Ø16.5 Ø18.5 | 34 | 26 | 113 |
| JG-500 | Ø20.5 | 38 | 30 | 124 |
| JG-630 | Ø22.5 | 45 | 35 | 140 |
Copper Lug JGK(SC) Series
| Model | Ø | D(mm) | d(mm) | L(mm) |
| JGK(SC)-1.5 | Ø4.2 Ø5.5 | 3.5 | 2.1 | 18 |
| JGK(SC)-2.5 | Ø4.2 Ø5.2 Ø6.2 | 4 | 2.6 | 19 |
| JGK(SC)-4 | Ø5.2 Ø6.2 | 4.8 | 3.4 | 21 |
| JGK(SC)-6 | Ø5.2 Ø6.2 Ø8.2 | 6 | 4.3 | 24 |
| JGK(SC)-10 | Ø6.2 Ø8.2 Ø10.5 | 6.8 | 5.2 | 25.5 |
| JGK(SC)-16 | Ø6.2 Ø8.2 Ø10.5 | 8 | 6.5 | 30.5 |
| JGK(SC)-25 | Ø6.2 Ø8.2 Ø10.5 | 9 | 7.5 | 34 |
| JGK(SC)-35 | Ø6.2 Ø8.2 Ø10.5 Ø12.5 | 10.5 | 8.2 | 38 |
| JGK(SC)-50 | Ø8.2 Ø10.5 Ø12.5 | 12.5 | 10 | 45 |
| JGK(SC)-70 | Ø8.2 Ø10.5 Ø12.5 | 14.5 | 12 | 50 |
| JGK(SC)-95 | Ø8.2 Ø10.5 Ø12.5 | 17 | 14 | 55.5 |
| JGK(SC)-120 | Ø10.5 Ø12.5 Ø14.5 Ø16.5 | 19 | 15 | 63 |
| JGK(SC)-150 | Ø10.5 Ø12.5 Ø14.5 Ø16.5 | 21 | 17 | 71 |
| JGK(SC)-185 | Ø12.5 Ø14.5 Ø16.5 | 23 | 19 | 78 |
| JGK(SC)-240 | Ø12.5 Ø14.5 Ø16.5 | 26 | 21 | 92 |
| JGK(SC)-300 | Ø16.5 Ø20.5 | 30 | 24 | 102 |
| JGK(SC)-400 | Ø16.5 Ø20.5 | 34 | 27 | 113 |
| JGK(SC)-500 | Ø16.5 Ø20.5 | 38 | 30 | 123 |
| JGK(SC)-630 | Ø20.5 | 45 | 35 | 135 |
Battery Cable Lug AUS Series
| Model | Ø | D(mm) | d(mm) | L(mm) |
| AUS-6 | Ø5.2 Ø6.2 Ø8.2 | 5.5 | 3.8 | 31.5 |
| AUS-10 | Ø6.2 Ø8.2 | 6 | 4.5 | 34.5 |
| AUS-16 | Ø6.2 Ø8.2 Ø10.5 | 8.5 | 5.5 | 43.5 |
| AUS-25 | Ø6.2 Ø8.2 Ø10.5 | 10 | 7 | 48 |
| AUS-35 | Ø6.2 Ø8.2 Ø10.5 Ø12.5 | 12.5 | 8.2 | 52 |
| AUS-50 | Ø8.2 Ø10.5 Ø12.5 | 14.5 | 10 | 64 |
| AUS-70 | Ø8.2 Ø10.5 Ø12.5 | 16.5 | 11.5 | 68 |
| AUS-95 | Ø10.5 Ø12.5 | 19 | 13.5 | 78 |
| AUS-120 | Ø12.5 Ø16.5 | 21 | 15.5 | 86 |
| AUS-150 | Ø12.5 Ø16.5 | 23.5 | 17 | 94 |
| AUS-185 | Ø16.5 | 25.5 | 19 | 101 |
| AUS-240 | Ø16.5 | 29 | 21.5 | 111 |
| AUS-300 | Ø16.5 Ø20.5 | 32 | 24.5 | 119 |
Compression Lugs JGA Series
| Model | Ø | D(mm) | d(mm) | L(mm) |
| JGA-1.5 | Ø4.2 Ø5.2 | 3.5 | 1.8 | 18 |
| JGA-2.5 | Ø4.2 Ø5.2 Ø6.2 | 4 | 2.5 | 19 |
| JGA-4 | Ø5.2 Ø6.2 | 4.8 | 3.1 | 21 |
| JGA-6 | Ø5.2 Ø6.2 Ø8.2 | 5.5 | 3.8 | 24 |
| JGA-10 | Ø6.2 Ø8.2 | 6.8 | 4.8 | 25.5 |
| JGA-16 | Ø6.2 Ø8.2 Ø10.5 | 7.5 | 5.5 | 30.5 |
| JGA-25 | Ø6.2 Ø8.2 Ø10.5 | 9 | 7 | 34 |
| JGA-35 | Ø6.2 Ø8.2 Ø10.5 Ø12.5 | 10.5 | 8.2 | 38 |
| JGA-50 | Ø8.2 Ø10.5 Ø12.5 | 12.5 | 9.8 | 45 |
| JGA-70 | Ø8.2 Ø10.5 Ø12.5 | 14.5 | 11.5 | 50 |
| JGA-95 | Ø10.5 Ø12.5 | 17.5 | 13.8 | 55.5 |
| JGA-120 | Ø10.5 Ø16.5 | 19.5 | 15.5 | 63 |
| JGA-150 | Ø12.5 Ø16.5 | 21 | 16.5 | 71 |
| JGA-185 | 16.5 | 23.5 | 18.8 | 78 |
| JGA-240 | 16.5 | 26.5 | 21 | 92 |
| JGA-300 | Ø16.5 Ø20.5 | 30 | 24 | 102 |
| JGA-400 | Ø16.5 Ø20.5 | 34 | 26.5 | 113 |
| JGA-500 | Ø16.5 Ø20.5 | 38 | 30 | 123 |
| JGA-630 | 20.5 | 45 | 35 | 135 |
