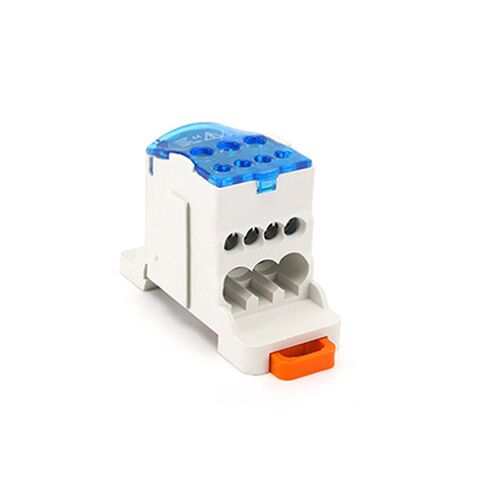

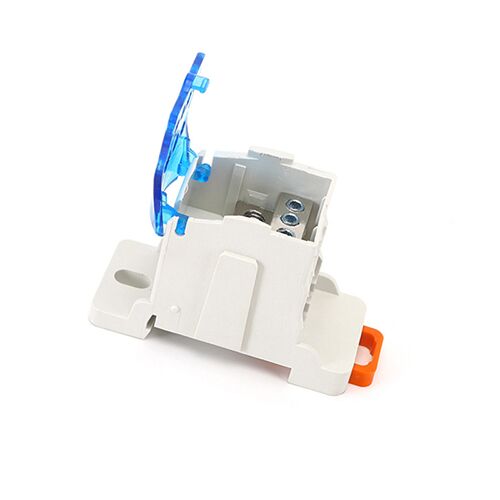

UKK-80 Din Rail Terminal Block Box
Product Technical Parameter Overview
| Product Model | UKK-80 |
|---|---|
| Current | 85A |
| Rated Voltage | 690V |
| Color | Blue and Gray |
| Input | 1×16 mm2 |
| Output | 4×6 mm2/2×16 mm2 |
| Dimension(LxWxH) | 30x69x49 mm |
| Material | Shell: Flame resistant Nylon PA66 Terminal: Brass tinned |
| Connection method | Screw Connection |
| Mounting Type | DIN Rail NS 35 |
| Standard | IEC 60947-7-1 |
| Logo | Customized |
| Certification | ISO9001 |
| Sample | Free supply |
| Original | China |

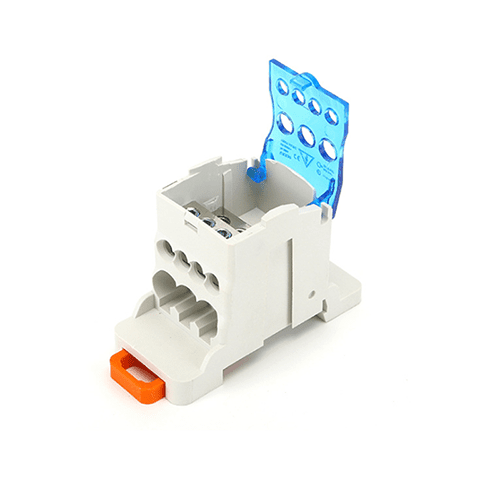

Description of UKK-80 Din Rail Terminal Block Box
The UKK-80 din rail terminal block box is a universal power junction box,which is used in the distribution cabinet,distribution box and other high voltage cabinet to branch the main line.It has 1 input hole and 6 output hole.The cable range of 1 input hole is 6 to 16 mm2,the cable range of 6 output hole is 4x(2.5 to 6)mm2,2x(2.5 to 16)mm2.
Material:
Shell: Flame retardant PA,which is high temperature resistance and strong insulation performance.
Terminal: Brass tinned,which is firm and durable, with strong corrosion resistance and good conductivity.
Screw: Zinc steel,metric thread screw,which is easy to installation.
UKK-80 Din Rail Terminal Block Box Actual product size chart

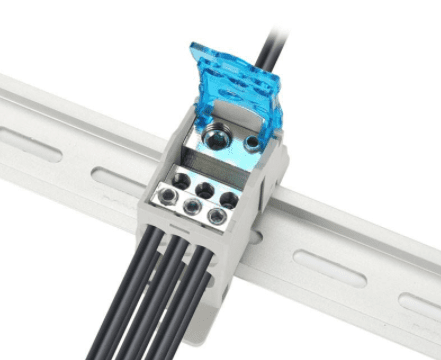

Installation diagram
The UKK-80 is a convenient, economical and safer way to distribute power from a single input source to multiple outputs. Complete with main removeable cover.High conductivity with excellent electrical contacts.It is install with 35mm wide din rail or chassis mounting with screw.

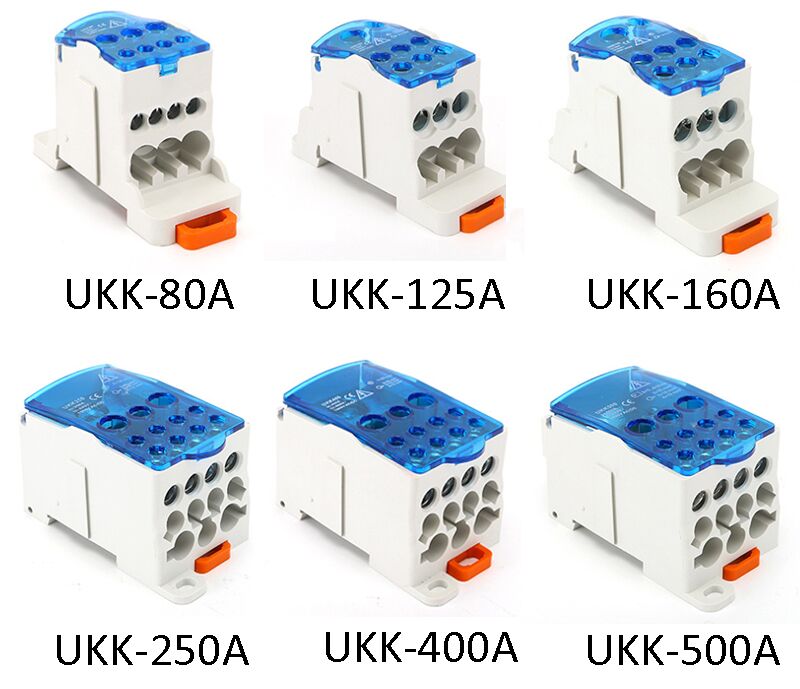

All Model Parameter
| Item No. | Current(A) | Voltage(V) | Conductors with starfix temules X-section(mm2) | Hole NO.(pcs) | Dimension(L*W*H)(mm) |
|---|---|---|---|---|---|
| UKK-80 | 85 | 690 IEC | Input 6 to 16 | x1 | 30*69*49 |
| Output 2.5 to 6 | x4 | ||||
| Output 2.5 to 16 | x2 | ||||
| UKK-125 | 150 | 690 IEC | Input 10 to 35 | x1 | 29*77*46 |
| Input 6 to 16 | x4 | ||||
| Output 2.5 to 16 | x6 | ||||
| UKK-160 | 200 | 690 IEC | Input 10 to 35 | x1 | 29*77*46 |
| Input 6 to 16 | x4 | ||||
| Output 2.5 to 16 | x6 | ||||
| UKK-250 | 255 | 690 IEC | Input 35 to 120 | x1 | 47*96*50 |
| Output 6 to 35 | x2 | ||||
| Output 2.5 to 16 | x5 | ||||
| Output 2.5 to 10 | x4 | ||||
| UKK-400 | 335 | 690 IEC | Input 95 to 185 | x1 | 47*96*50 |
| Output 6 to 35 | x2 | ||||
| Output 2.5 to 16 | x5 | ||||
| Output 2.5 to 10 | x4 | ||||
| UKK-500 | 520 | 690 IEC | Input 3×15.5×0.8 to 8×24 | x1 | 49*96*50 |
| Output 6 to 35 | x2 | ||||
| Output 2.5 to 16 | x5 | ||||
| Output 2.5 to 10 | x4 |
