Description of twin insulated ferrule
Twin insulated ferrule are also named copper crimp connector or pin cord end terminal.Crimp connectorused to terminate stranded wires,creating a quality,reliable connection by ensuring each wire strand conducts current when properly crimped.insulated ferrule especially useful when multiple reconnections could be necessary within terminal blocks or other similar devices. No breakage of wire strands when wire is bent, under stress or in a vibration environment.Twin insulated ferrule designs allow two individual stranded conductors to be connected to the same termination,most beneficial in jumpering or other similar applications.
Material of insulated ferrule
Tin plated copper,PVC

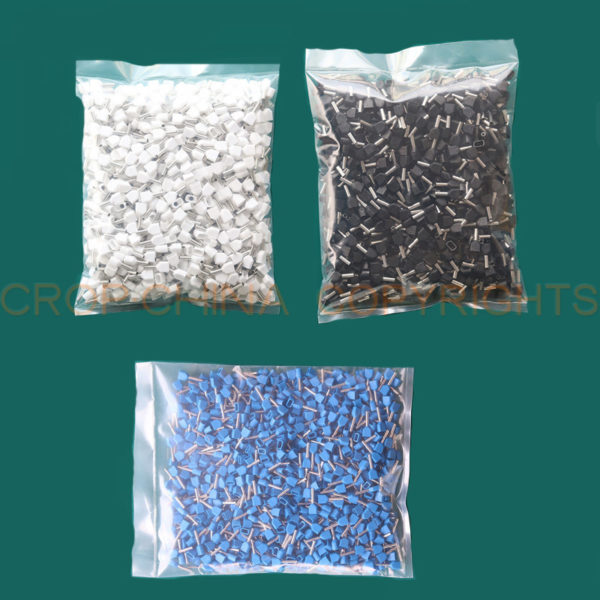

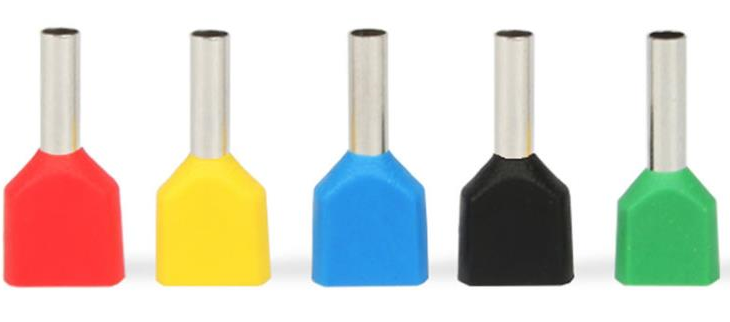

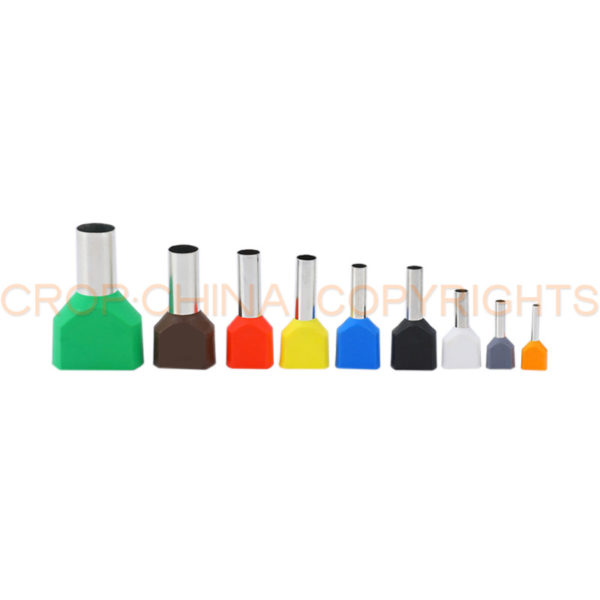

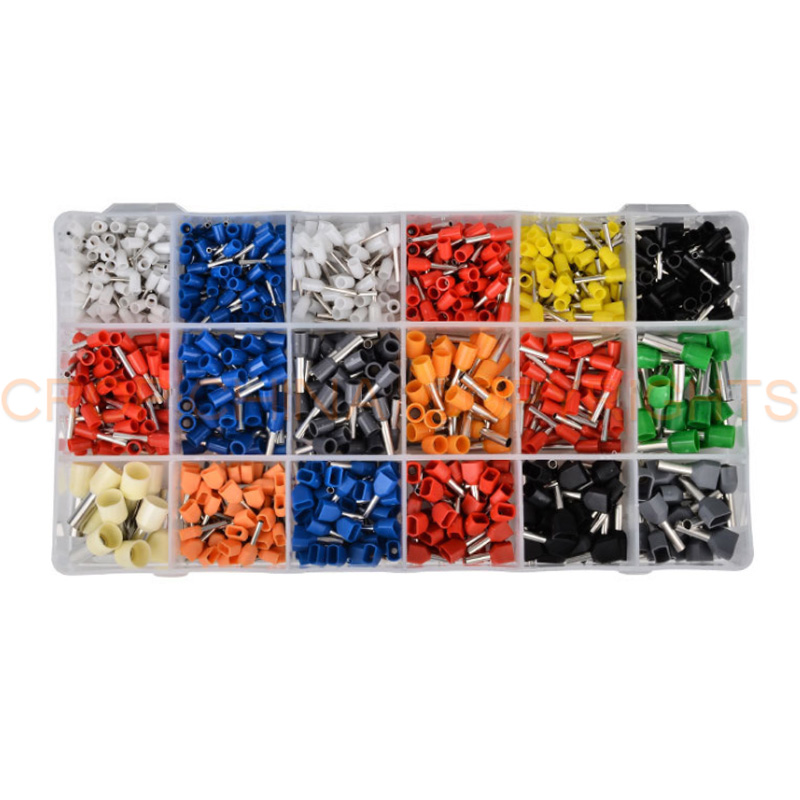

Product picture of copper crimp connector

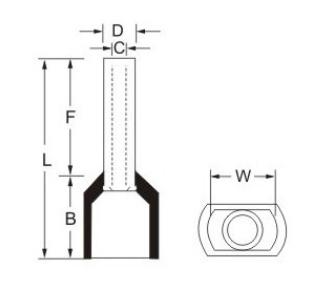

| Item No. | Size | Dimension (mm) | Colour | ||||||
|---|---|---|---|---|---|---|---|---|---|
| B | C | D | F | L | W | German | France | ||
| TE 0508 | 2×0.5 | 6.5 | 1.5 | 1.8 | 8 | 14.5 | 5.0 | White | White |
| TE 7508 | 2×0.75 | 6.7 | 18 | 2.1 | 8 | 14.7 | 5.5 | Blue | Gray |
| TE 7510 | 6.7 | 1.8 | 2.1 | 10 | 16.7 | ||||
| TE 1008 | 2×1.0 | 7.1 | 2 | 2.3 | 8 | 15.1 | 5.5 | Red | Red |
| TE 1010 | 7.1 | 2 | 2.3 | 10 | 17.1 | ||||
| TE 1508 | 2×1.5 | 7.2 | 2.3 | 2.6 | 8 | 15.5 | 6.4 | Black | Yellow |
| TE 1512 | 7.5 | 2.3 | 2.6 | 12 | 19.5 | ||||
| TE 2510 | 2×2.5 | 8.5 | 2.9 | 3.3 | 10 | 18.5 | 8.0 | Gray | Blue |
| TE 2513 | 8.5 | 2.9 | 3.2 | 13 | 21.5 | ||||
| TE 4012 | 2×4.0 | 11.1 | 3.8 | 4.2 | 12 | 23.1 | 8.8 | Orange | Gray |
| TE 6014 | 2×6.0 | 12.1 | 4.9 | 5.3 | 14 | 26.1 | 9.5 | Green | Yellow |
| TE 10-14 | 2×10.0 | 12 | 6.5 | 6.9 | 14 | 26.6 | 12.6 | Brown | Red |
| TE 16-14 | 2×16.0 | 17.3 | 8.3 | 8.7 | 14 | 31.3 | 19 | White | Blue |
Related Product
Features of pin cord end terminal
1.Smooth funnel entry to make wire insertion easier.
2.Secure contacting even after multiple reconnections.
3.Long-term contact resistance.
4.No fraying of strands.
5.No breakage of wire strands when wire is bent,under stress or in vibration environment.
