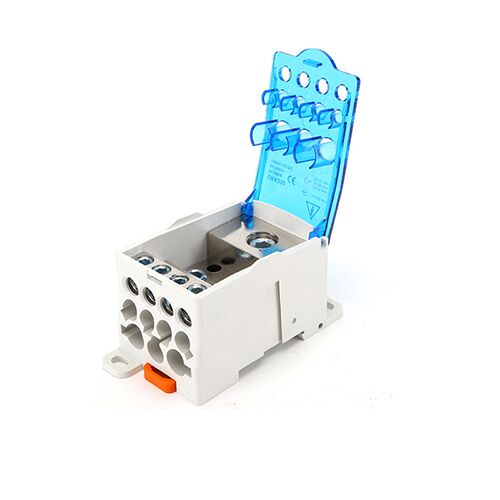

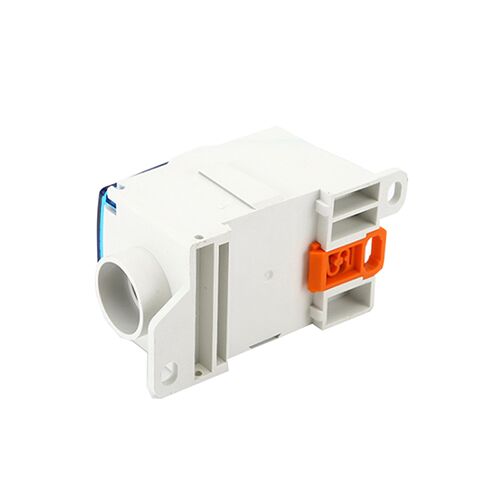

Terminal Block Distribution Box Din Rail Terminal Block UKK Series

Product Model: UKK Series

Material: Shell: Flame resistant Nylon PA66
Terminal: Brass tinned

Sample: Free supply

Original: China

Send Inquiry
描述

描述

Terminal Block Distribution Box Din Rail Terminal Block

Description

The terminal block distribution box plays an important role in branching the mian line.Generally it is used for distribution cabinet and various high voltage cabinet.An electric power distribution terminal block is a convenient, economical and safer way to distribute power from a single input source to multiple outputs.It is always used with the din rail,so it is also named din rail terminal block.

Product parameter

terminal block distribution box















































Item No. Current(A) Voltage(V) Conductors with starfix temules X-section(mm2) Hole NO.(pcs) Dimension(L*W*H)(mm)
CRUKK-80 85 690 IEC Input 6 to 16 x1 30*69*49
Output 2.5 to 6 x4
Output 2.5 to 16 x2
CRUKK-125 150 690 IEC Input 10 to 35 x1 29*77*46
Input 6 to 16 x4
Output 2.5 to 16 x6
CRUKK-160 200 690 IEC Input 10 to 35 x1 29*77*46
Input 6 to 16 x4
Output 2.5 to 16 x6
CRUKK-250 255 690 IEC Input 35 to 120 x1 47*96*50
Output 6 to 35 x2
Output 2.5 to 16 x5
Output 2.5 to 10 x4
CRUKK-400 335 690 IEC Input 95 to 185 x1 47*96*50
Output 6 to 35 x2
Output 2.5 to 16 x5
Output 2.5 to 10 x4
CRUKK-500 520 690 IEC Input 3×15.5×0.8 to 8×24 x1 49*96*50
Output 6 to 35 x2
Output 2.5 to 16 x5
Output 2.5 to 10 x4

Material of din rail terminal block

Terminal material: the terminal is made of excellent brass tinned,which is firm and durable,with strong corrosion resistance and good conductivity.

Shell material: the shell is made of Flame retardant nylon material,which is high strength and strong insulation performance.

Screw material: zinc steel,metric thread screw.

Features of Terminal Block Distribution Box

●Made of flame-retardant shell, it is high temperature resistant and corrosion resistant.

●The installation is simple and safety.The terminal block distribution box is easy and quick to install on the din rail.

●The transparent cover can easily see if the cable is conneted reliably.

●Cable fixing screw diameters>95% fill ratio: excellent electrical.

●Clip-on DIN rail or mount to panel with screws: easy fixing.keeping only one input, the blocks can be connected in parallel using a jumper wire.

●DIN rail or panel mount

●Wire ready: captive termination screws shipped backed out to save time on conductor installations

Installation diagram

The UKK series  terminal block distribution box is a convenient, economical and safer way to distribute power from a single input source to multiple outputs. Complete with main removeable cover.High conductivity with excellent electrical contacts.It is install with 35mm wide din rail or chassis mounting with screw.

Din Rail Terminal Block Box
