Description

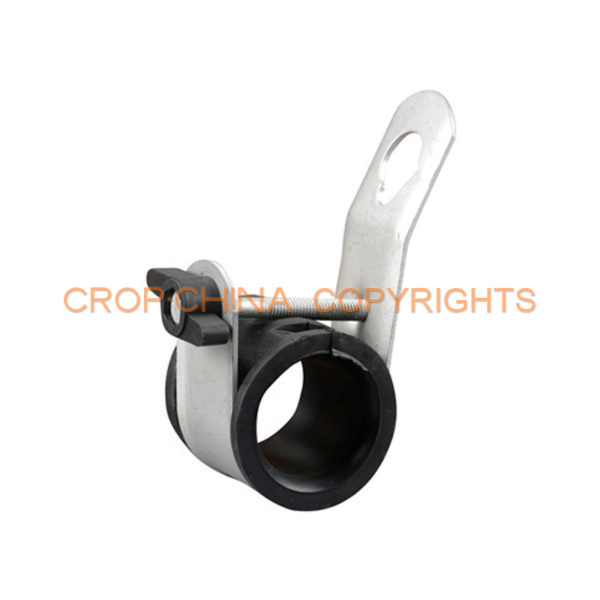

SUSPENSION CLAMP FOR ABC CABLE

Suspension clamp PS
• Can be installed in straight direction and in line deviation angle up to 30°
• Tool free installation, equipped with wing nut
• Exceeds requirements according to ESI 43-14 and VDE 0211
• Made of weather and UV-light resistant elastomer and hot dip galvanized steel
• Fits to hooks and pigtails up to a diameter of 21 mm
• Operating load 2,5 kN

Models	PT-1	PT-2
Cable range (mm²)	4×(25-50)	4×(70-95)
Bundled dia.(mm)	25	40
MBL (daN)	800	800
