Suspension clamps for ADSS/Round Cable PS Series

Suspension clamps for ADSS

Send Inquiry
Description

Description

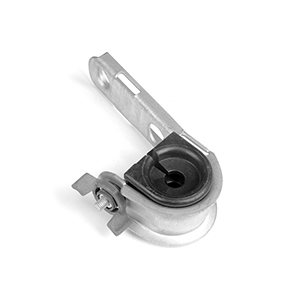

SUSPENSION CLAMP FOR ROUND ADSS CABLE

Description

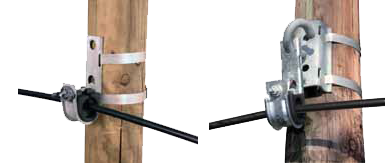

The clamps PS-ADSS can be installing on hook bracket, also can be use with stainless steel straps.

Features
Up to 25° deviation angle

Models PS615ADSS(*) PS1520ADSS(*) PS2227ADSS(*)
Max spans(m) 150 150 150
Cable diameter(mm) 6~15 15 ~ 20 22 ~ 27
Min tensile (daN) 300 300 300
L (mm) 120 120 120

(*)Add “F” in the reference to order a suspension clamp with a shear-off wing nut

  • Bracket or Stainless steep strap bending please check CROP Catalogue.
