SUSPENSION CLAMPS TRUNNION TYPE

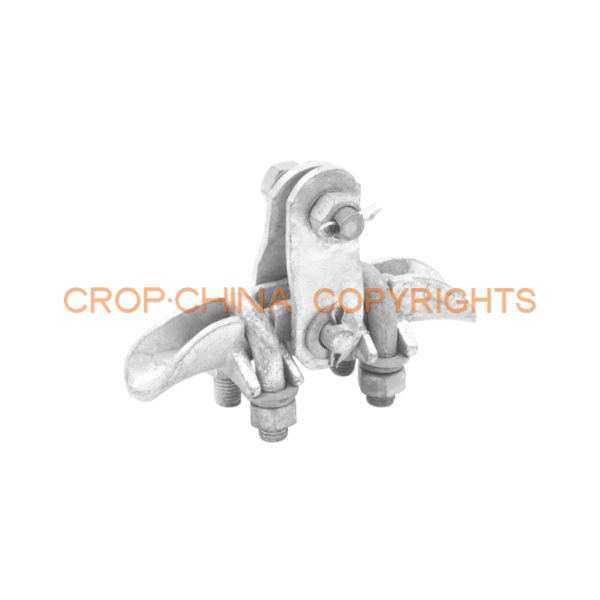

Suspension clamp,XGU trunnion type are used to hang conductor or ground wire through insulators or link fitting to tower arms or substation structures.The clamps are made of malleable iron or aluminium alloy.
As the suspension clamps are used to AAC and ACSR,the conductor may be wound by aluminium tapes or preformed armour rods for protecting these taps or rods are included in the diameter of suitable conductor.
Dimension of Suspension clamp,XGU trunnion type
| Type | Applicable Conductor(mm²) |
Dimensions(mm) | Specified Failure Load(kN) |
Weight(kg) | ||
| H | L | R | ||||
| XGU-1 | 5.0~7.0 | 82 | 180 | 4 | 40 | 1.4 |
| XGU-2 | 7.1~13.0 | 82 | 200 | 7 | 40 | 1.8 |
| XGU-3 | 13.1~21.0 | 102 | 220 | 11 | 40 | 2 |
| XGU-4 | 21.1~26.0 | 110 | 250 | 13.5 | 40 | 3 |
The boady and keeper are made of malleable iron. Cotter-pins are made of stainless steel. Other parts are made of steel.
All ferrous parts are hou-dip galvanized.
