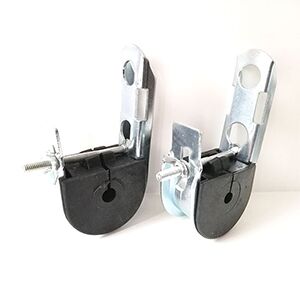

J Hook Suspension clamp with neoprene insert for ADSS cable

Description of J hook suspension clamp

J hook suspension clamp / Suspension clamp  are designed to provide a suspension for 5 to 20mm aerial ADSS cables at intermediate poles on cable routes with angle < 20° on access networks (spans up to 100m).

The suspension clamp J hook consist with J hook,screw and sleeve.

Material of suspension clamp

J hook made of galvanized steel

The sleeve made of neoprene

The screw made of protected steel

Product Code Cable size
(mm)
Strength (kN) Matreials
HC5-8 5-8 4 Galvanized stell,
UV resistant plastic
HC8-12 8-12 4
HC10-15 10-15 4
HC15-20 15-20 4

Related Product

Suspension Clamp

Feature of suspension clamp with J hook

1.Two sizes to cover the full range of ADSS cables from 5 to 20mm.

2.The shape of the J hook suspension clamp allows a running out of  the cable directly in the hook.

3.The suspension clamps can be directly secured to the poles using bolts or bandings.

4.Hook clamps also can be installed on hook bolts to provide some flexible suspension point and give extra protection to the cable against wind induced vibrations.

Suspension clamp with pole banding

J hook suspension clamp suspended with stainless steel banding or hose clamp.

The suspension clamp can be installed on  wood poles,round concrete poles and polygonal metallic poles using one or two 20mm pole stainless steel banding and two buckles.

Suspension clamp with hook bolt

J hook suspension clamp suspended with a hook bolt

The suspension clamp can be installed on a 14mm or 16mm hook bolt on drilled wood poles.

Suspension clamp with bolt

J hook suspension clamp suspended with a bolt

The suspenson clamp can be secured with a 14mm or 16mm bolt on drilled wood poles.
