Description

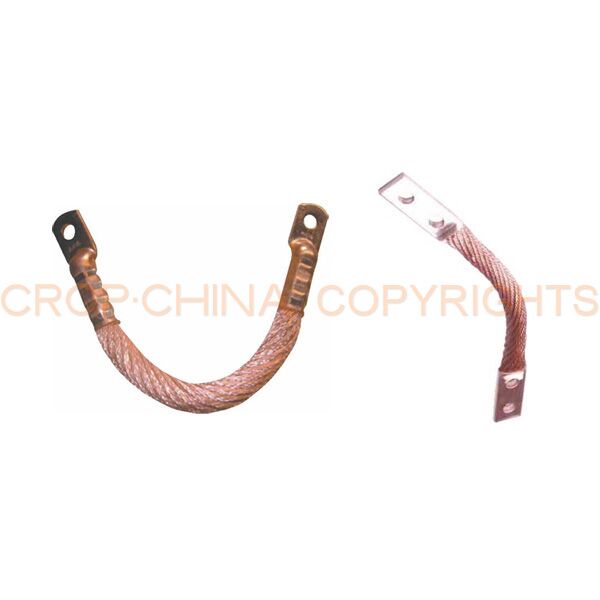

Description of stranded busbar connectors copper
Stranded busbar connectors copper manufactured by flexible uncoated or tinned copper cables,the wire-φ0.15mm(standard)or 0.05/0.07/0.10mm on request with copper terminals.
Manufacturing in largeas well as small quantities in length add to your wishes.On request it is also possible to order an insulated design(e.g.with PVC or other material).When placing an order please specify the length and the wished changes.
Application:
The copper stranded connectors is suitable for the flexible connected wires of electrical equipment, electrical switch, electrical furnace, battery, etc.
Also can be as shielding sleeve for wire harness etc.
Customized available for special dimension,shapes and structure.We can according to your drawing customized.
| Cross-section (mm²) |
Dimensions (mm) |
||
|---|---|---|---|
| B | d | L | |
| 10 | 11 | 6.5 | According to customer requirement |
| 16 | 14 | 8.5 | |
| 25 | 16 | 8.5 | |
| 35 | 16 | 8.5 | |
| 50 | 18 | 10.5 | |
| 70 | 22 | 10.5 | |
| 95 | 24 | 13 | |
| 120 | 24 | 13 | |
| 150 | 30 | 13 | |
| 185 | 36 | 17 | |
| 240 | 38 | 17 | |
| 300 | 50 | 21 | |
Related Product of stranded ground strap
