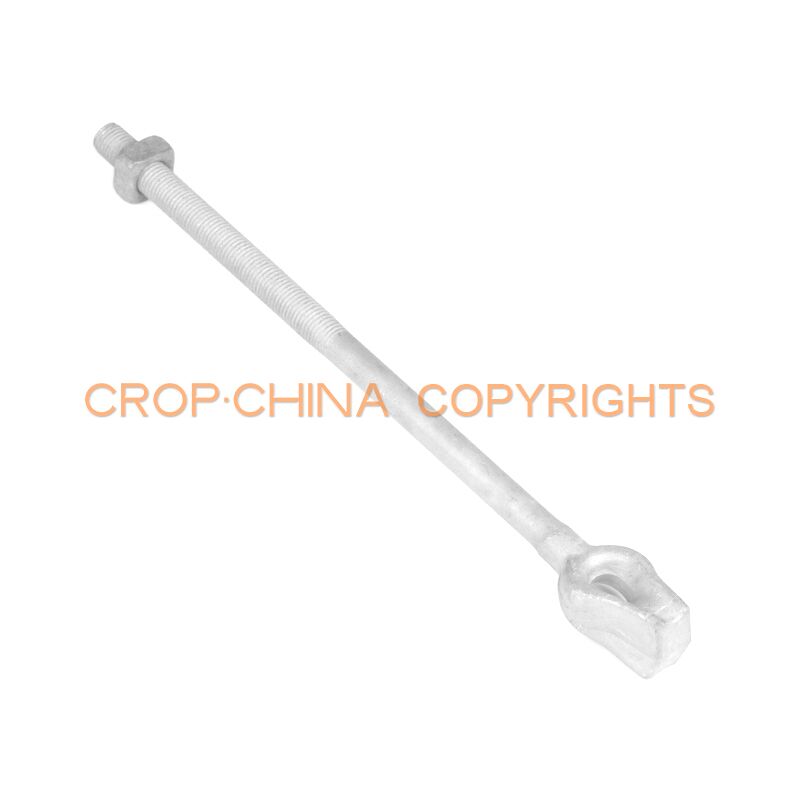

Straight Thimbleye Bolt STB Series

Bolt, Straight Thimbleye Contoured eye keeps guy strand from kinking, bending, or spreading. Drop-forged steel. Hot dip galvanized. Cone-type points. Standard:  ASTM A-153, BS729, ISO1461.

Send Inquiry
Categories: ,
Description

Description

STRAIGHT THIMBLEYE BOLT
Description
Produced in Steel Q235, hot dip galvanized according to ASTM A-153, BS729, ISO1461.
Furnished with 1 square nut.

Type Dimensions in inches and millimeters
C D L T
STB01 1 3/8(34) 5/8″(16) 8″(200) 4″(100)
STB02 1 3/8(34) 5/8″(16) 10″(250) 4″(100)
STB03 1 3/8(34) 5/8″(16) 12″(300) 6″(150)
STB04 1 3/8(34) 5/8″(16) 14″(350) 6″(150)
STB05 1 3/8(34) 5/8″(16) 16″(400) 6″(150)
STB06 1 3/8(34) 5/8″(16) 18″(450) 6″(150)
STB07 1 3/8(34) 5/8″(16) 20″(500) 6″(150)
STB08 1 1/2″(38) 3/4″(20) 10″(250) 4″(100)
STB09 1 1/2″(38) 3/4″(20) 12″(300) 6″(150)
STB10 1 1/2″(38) 3/4″(20) 14″(350) 6″(150)
STB11 1 1/2″(38) 3/4″(20) 16″(400) 6″(150)
STB12 1 1/2″(38) 3/4″(20) 18″(450) 6″(150)
STB13 1 1/2″(38) 3/4″(20) 20″(500) 6″(150)
