Insulation Piercing Connector CRT  Piercing Connector CRT401 The waterproof insulation piercing connectors are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores. When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed(fuse nut). Stripping of insulation is avoided. Service condition: <1kV, 50/60Hz, -10°C to 55°C Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.

Send Inquiry
描述

描述

Solar IPC Connector Insulation Piercing Connector TTD041

Description of Solar IPC Connector

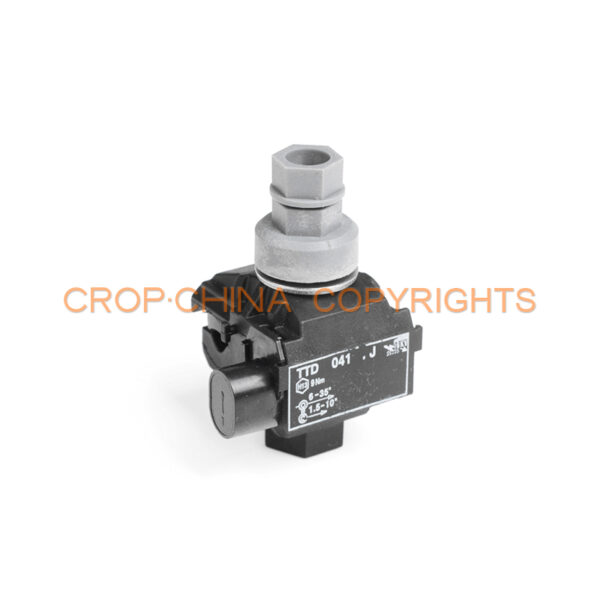

Solar IPC Connector insulation piercing connector provide protection, insulation, and high-quality sealing of the electrical connections thanks to the Insulation Piercing Connector (IPC) that doesn’t require stripping the conductor insulation before making the connection. It is used for the branch connection of insulated cables in building power distribution systems, the connection of low-voltage overhead insulated cables, the branch connection of low-voltage insulated household cables, and street lamp power distribution systems.

Cable range:

Main line: 6-35 mm2,insulated copper or aluminum

Branch line: 1.5-10 mm2,insulated copper or aluminum



CRTFJ Series Insulation Piercing Connector

CRTFVO Series Insulation Piercing Connector

Equal to Code TTD041FJ TTD051FJ TTD101FJ TTD151FJ TTD201FJ TTD251FJ TTD271FJ TTD281FJ TTD401FJ TTD431FJ TTD441FJ TTD451FJ
Models CRT041FJ CRT051FJ CRT101FJ CRT151FJ CRT201FJ CRT251FJ CRT271FJ CRT281FJ CRT401FJ CRT431FJ CRT441FJ CRT451FJ
Main Line(mm2) 6-35 16-95 6-50 25-95 35-95 50-150 35-120 50-185 50-185 70-240 95-240 95-240
Service Line (mm2) 1.5-10 1.5-10 2.5-35 2.5-35 25-95 25-95 35-120 2.5-35 50-150 16-95 50-150 95-240
Bolt No. 1 1 1 1 1 1 1 1 2 2 2 2
Torque (Nm)
Remarks ISO to ISO ISO to ISO ISO to ISO ISO to ISO ISO to ISO ISO to ISO ISO to ISO ISO to ISO ISO to ISO ISO to ISO ISO to ISO ISO to ISO

Material

Body:UV and weather resistant thermoplastic,It is good to make sure that the product you are buying meets the national and international standards.
Teeth: Copper tinned, Brass tinned, Aluminum.Copper tinned teeth can be used for copper or aluminum conductor.The aluminum teeth can be used for aluminum conductor.
End cap: UV and weather resistant thermoplastic
Grease: Silica gel
Bolt: galvanized steel or stainless steel
Washer, Nut: galvanized steel or stainless steel
Fuse nut: UV and weather resistant thermoplastic

Related Product

PIERCING CONNECTOR

Features

1.It can be operated with electricity or power failure.
2.The main body of the insulation piercing connector is made of high-strength, mechanical and weather-resistant insulating materials.
3.The screws equipped with tightening torque nuts are treated with anti-corrosion. The torque nuts make the installation easier, safer and faster. Its constant puncture pressure can ensure the cable link to achieve the best electrical effect.
4.The piercing connector has a waterproof function and can withstand a voltage of 6KV in water without breakdown.
5.Sealed and waterproof branch line end caps can prevent water from entering the branch line conductors, and can be branched on the left or right side as needed.
