Description

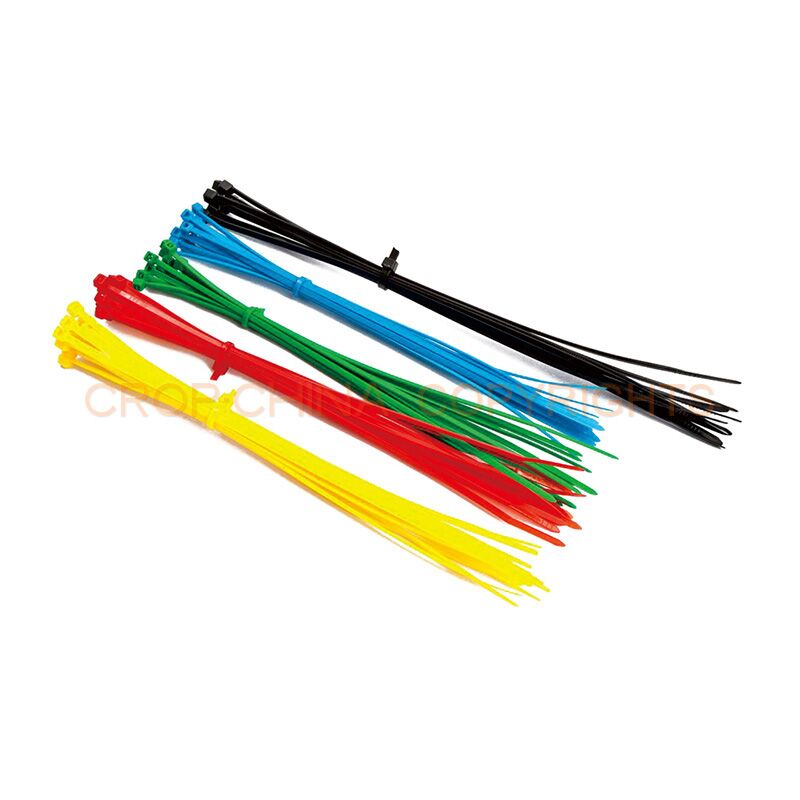

Description of cable zip tie
Cable zip tie (as known as a hose tie, zip tie) is used as fastener,for holding items like cables, wires, conducts, plants or other things in the industry of electrical & electronic,lighting,hardware,pharmaceutical,chemical,computer,machinery,agriculture together,primarily electrical cables or wires.Cause the low cost and ease of use,cable zip ties are use in a wide range of other applications.
The common cable tie, normally made of nylon, has a flexible tape section with teeth that engage with a pawl in the head to form a ratchet so that as the free end of the tape section is pulled the cable tie tightens and does not come undone. Some ties include a tab that can be depressed to release the ratchet so that the tie can be loosened or removed, and possibly reused
Working temperature:Applied form -10℃ to 85℃。
Material:Nylon 66,94V-2 UL.
Cable tie HS code:3916901000
Feature:Flame-retardant(94V-2),heat-resistant,insulated well and not easy to age.
Usage: Self-locking cable ties which are easily assembled by hand or with pliers.
Colour:White,Black,nature standard color or other colour according to customer request.
We can do OEM according to the samples or drawings.
| Item No. | Length | W (mm) | Bundle diameter E(mm) | Min Tensile strength | ||
|---|---|---|---|---|---|---|
| Inch | L(mm) | LBS | KGS | |||
| CT-3×60 | 2 3/8″ | 60 | 2.5 | 2-11 | 18 | 8 |
| CT-3×80 | 3 3/16″ | 80 | 2.5 | 2-16 | 18 | 8 |
| CT-3×100 | 4” | 100 | 2.5 | 2-22 | 18 | 8 |
| CT-3×120 | 4 3/4” | 120 | 2.5 | 2-30 | 18 | 8 |
| CT-3×150 | 6” | 150 | 2.5 | 2-35 | 18 | 8 |
| CT-3×160 | 6 1/4” | 160 | 2.5 | 2-40 | 18 | 8 |
| CT-3×200 | 8” | 200 | 2.5 | 3-50 | 18 | 8 |
| CT-3×250 | 10” | 250 | 3 | 3-65 | 18 | 8 |
| CT-3×300 | 12” | 300 | 3 | 3-80 | 18 | 8 |
| CT-4×100 | 4” | 100 | 3.5 | 3-22 | 40 | 18 |
| CT-4×120 | 4 3/4” | 120 | 3.5 | 3-30 | 40 | 18 |
| CT-4×150 | 6” | 150 | 3.5 | 3-35 | 40 | 18 |
| CT-4×160 | 6 1/4” | 160 | 3.5 | 3-40 | 40 | 18 |
| CT-4×180 | 7” | 180 | 3.5 | 3-42 | 40 | 18 |
| CT-4×200 | 8” | 200 | 3.5 | 3-50 | 40 | 18 |
| CT-4×220 | 8 5/8” | 220 | 3.5 | 3-58 | 40 | 18 |
| CT-4×250 | 10” | 250 | 3.5 | 3-65 | 40 | 18 |
| CT-4×280 | 11” | 280 | 3.5 | 3-70 | 40 | 18 |
| CT-4×300 | 12” | 300 | 3.5 | 3-80 | 40 | 18 |
| CT-4×370 | 14 1/2” | 370 | 3.5 | 3-102 | 40 | 18 |
| CT-5×120 | 4 3/4” | 120 | 4.6 | 3-24 | 50 | 22 |
| CT-5×150 | 6” | 150 | 4.6 | 3-35 | 50 | 22 |
| CT-5×180 | 7” | 180 | 4.6 | 3-42 | 50 | 22 |
| CT-5×200 | 8” | 200 | 4.6 | 3-50 | 50 | 22 |
| CT-5×250 | 10” | 250 | 4.6 | 3-65 | 50 | 22 |
| CT-5×280 | 11” | 280 | 4.6 | 3-70 | 50 | 22 |
| CT-5×300 | 12” | 300 | 4.6 | 3-82 | 50 | 22 |
| CT-5×350 | 14” | 350 | 4.6 | 3-90 | 50 | 22 |
| CT-5×380 | 15” | 380 | 4.7 | 3-102 | 50 | 22 |
| CT-5×400 | 16″ | 400 | 4.7 | 3-105 | 50 | 22 |
| CT-5×450 | 18″ | 450 | 4.7 | 3-130 | 50 | 22 |
| CT-5×500 | 20” | 500 | 4.7 | 3-150 | 50 | 22 |
| CT-5×550 | 22” | 550 | 4.7 | 3-160 | 50 | 22 |
| CT-8×150 | 6” | 150 | 6.8 | 3-33 | 85 | 38 |
| CT-8×180 | 7” | 180 | 6.8 | 3-42 | 85 | 38 |
| CT-8×200 | 8” | 200 | 6.8 | 3-50 | 85 | 38 |
| CT-8×250 | 10” | 250 | 7.5 | 4-63 | 120 | 55 |
| CT-8×300 | 12” | 300 | 7.5 | 4-82 | 120 | 55 |
| CT-8×350 | 14” | 350 | 7.5 | 4-90 | 120 | 55 |
| CT-8×370 | 14 1/2” | 370 | 7.5 | 4-98 | 120 | 55 |
| CT-8×400 | 16″ | 400 | 7.5 | 4-105 | 120 | 55 |
| CT-8×450 | 18″ | 450 | 7.5 | 4-118 | 120 | 55 |
| CT-8×500 | 20” | 500 | 7.5 | 4-150 | 120 | 55 |
| CT-8×550 | 22” | 550 | 7.5 | 4-160 | 120 | 55 |
| CT-8×750 | 30″ | 750 | 7.5 | 4-220 | 120 | 55 |
