Double Arming Bolt SDAB Series

BOLTS, DOUBLE-ARMING FULL THREAD

Bolts permit replacement ease in double arms and offer added flexibility
of use. Cone type point for easy starting and driving-out without
damage to threads. Each bolt provided with four square nuts. Hot dip
galvanized steel.

Standard: ASTM A-153, BS729, ISO1461.

Send Inquiry
描述

描述

DOUBLE ARMING BOLT
Description
Produced in Steel Q235, hot dip galvanized according to ASTM A-153, BS729, ISO1461.
Furnished with 4 square nut.

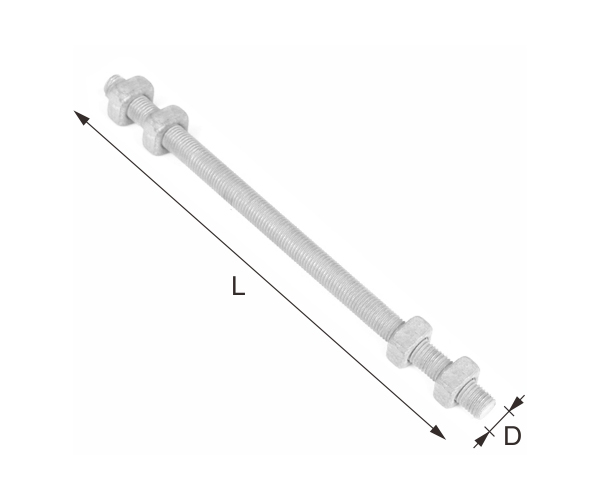

Type Dimensions in inches and millimeters
D L
SDAB01 1/2″(12) 10″(250)
SDAB02 1/2″(12) 12″(300)
SDAB03 1/2″(12) 14″(350)
SDAB04 1/2″(12) 16″(400)
SDAB05 5/8″(16) 10″(250)
SDAB06 5/8″(16) 12″(300)
SDAB07 5/8″(16) 14″(350)
SDAB08 5/8″(16) 16″(400)
SDAB09 5/8″(16) 18″(450)
SDAB10 5/8″(16) 20″(500)
SDAB11 5/8″(16) 22″(550)
SDAB12 5/8″(16) 24″(600)
SDAB13 5/8″(16) 26″(650)
SDAB14 5/8″(16) 28″(700)
SDAB15 5/8″(16) 30″(750)
SDAB16 5/8″(16) 32″(800)
SDAB17 3/4″(20) 12″(300)
SDAB18 3/4″(20) 14″(350)
SDAB19 3/4″(20) 16″(400)
SDAB20 3/4″(20) 18″(450)
SDAB21 3/4″(20) 20″(500)
SDAB22 3/4″(20) 22″(550)
SDAB23 3/4″(20) 24″(600)
SDAB24 3/4″(20) 26″(650)
SDAB25 3/4″(20) 28″(700)
SDAB26 3/4″(20) 30″(750)
*Note:This bolt has Chamfering type,If you need this type,pls explain when you place an order
