Description

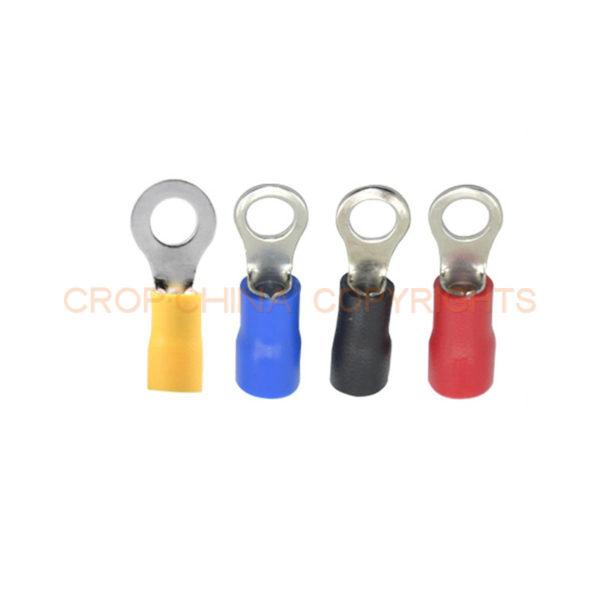

Description of insulated crimp ring terminal
Insulated crimp ring terminal are also named crimp ring terminal and ring terminal. Terminal are used to terminate stranded wires,creating a quality,reliable connection by ensuring each wire strand conducts current when properly crimped.Crimp ring terminal are especially useful when multiple reconnections could be necessary within terminal blocks or other similar devices. No breakage of wire strands when wire is bent, under stress or in a vibration environment.Ring terminal designs allow two individual stranded conductors to be connected to the same termination,most beneficial in jumpering or other similar applications.
Material of crimp ring terminal
Tin plated copper,PVC
| Item No. | Stud size | Dia.of Bolt | Dimension(mm) | Color | Specification | ||||
|---|---|---|---|---|---|---|---|---|---|
| d2(mm) | B | D | F | H | L | ||||
| RV 1.25-3 | #4 | 3.2 | 5.7 | 4.3 | 4.95 | 10 | 17.8 | Red | Conductor section:0.5-1.5mm2 A.W.G.: 22-16 Max Current:I max.=19A Thickness: 0.7mm |
| RV 1.25-3.5S | #6 | 3.7 | 5.7 | 4.95 | 17.8 | ||||
| RV 1.25-3.5M | #6 | 3.7 | 6.6 | 6.3 | 20.1 | ||||
| RV 1.25-3.5L | #6 | 3.7 | 7.2 | 7.0 | 21.5 | ||||
| RV 1.25-4S | #8 | 4.3 | 6.6 | 6.3 | 20.1 | ||||
| RV 1.25-4L | #8 | 4.3 | 8.0 | 7.0 | 21.5 | ||||
| RV 1.25-5S | #10 | 5.3 | 8.0 | 7.0 | 21.5 | ||||
| RV 1.25-5L | #10 | 5.3 | 9.5 | 8.0 | 23.0 | ||||
| RV 1.25-5LL | #10 | 5.3 | 11.6 | 11.1 | 27.5 | ||||
| RV 1.25-6S | 1/4 | 6.5 | 9.5 | 8.0 | 23.0 | ||||
| RV 1.25-6 | 1/4 | 6.5 | 11.6 | 11.1 | 27.5 | ||||
| RV 1.25-8 | 5/16 | 8.5 | 11.6 | 11.1 | 27.5 | ||||
| RV 1.25-10 | 3/8 | 10.5 | 13.6 | 13.9 | 31.6 | ||||
| RV 1.25-10L | 3/8 | 10.5 | 19.2 | 16.0 | 35.0 | ||||
| RV 1.25-12 | 1/2 | 13.0 | 19.2 | 16.0 | 35.0 | ||||
| RV 2-3 | #4 | 3.2 | 6.6 | 4.9 | 4.3 | 10 | 17.8 | Blue | Conductor section:1.5-2.5mm2 A.W.G.: 16-14 Max Current:I max.=27A Thickness: 0.8mm |
| RV 2-3.5S | #6 | 3.7 | 6.6 | 4.3 | 17.8 | ||||
| RV 2-3.5M | #6 | 3.7 | 6.6 | 7.0 | 21.0 | ||||
| RV 2-3.5L | #6 | 3.7 | 8.5 | 7.75 | 22.5 | ||||
| RV 2-4S | #8 | 4.3 | 6.6 | 7.00 | 21.0 | ||||
| RV 2-4L | #8 | 4.3 | 8.5 | 7.75 | 22.5 | ||||
| RV 2-5S | #10 | 5.3 | 8.5 | 7.75 | 22.5 | ||||
| RV 2-5L | #10 | 5.3 | 9.5 | 7.25 | 22.5 | ||||
| RV 2-6S | 1/4 | 6.5 | 9.5 | 7.25 | 22.5 | ||||
| RV 2-6 | 1/4 | 6.5 | 12.0 | 11.0 | 27.6 | ||||
| RV 2-8 | 5/16 | 8.5 | 12.0 | 11.0 | 27.6 | ||||
| RV 2-10 | 3/8 | 10.5 | 13.6 | 13.9 | 30.2 | ||||
| RV 2-10L | 3/8 | 13 | 19.2 | 16.0 | 35.0 | ||||
| RV 2-12 | 1/2 | 13.0 | 19.2 | 16.0 | 35.0 | ||||
| RV 3.5-4 | #8 | 4.3 | 8.0 | 6.2 | 7.7 | 12.5 | 24.5 | Black | Conductor section:2.5-4mm2 A.W.G.: 14-12 Max Current:I max.=37A Thickness: 1.0mm |
| RV 3.5-5S | #10 | 5.3 | 8.0 | 7.7 | 24.5 | ||||
| RV 3.5-5L | #10 | 5.3 | 12.0 | 7.7 | 27.9 | ||||
| RV 3.5-6 | 1/4 | 6.5 | 12.0 | 7.7 | 27.9 | ||||
| RV 3.5-8 | 5/16 | 8.5 | 15.0 | 13.5 | 32.0 | ||||
| RV 3.5-10 | 3/8 | 10.5 | 15.0 | 13.6 | 32.0 | ||||
| RV 3.5-12 | 1/2 | 13.0 | 19.2 | 16.0 | 38.1 | ||||
| RV 5.5-3.5 | #6 | 3.7 | 7.2 | 6.7 | 5.9 | 12.5 | 21.4 | Yellow | Conductor section:4-6mm2 A.W.G.: 12-10 Max Current:I max.=48A Thickness: 1.0mm |
| RV 5.5-4S | #8 | 4.3 | 7.2 | 5.9 | 21.4 | ||||
| RV 5.5-4L | #8 | 4.3 | 9.5 | 8.3 | 25.5 | ||||
| RV 5.5-5 | #10 | 5.3 | 9.5 | 8.3 | 25.5 | ||||
| RV 5.5-6 | 1/4 | 6.5 | 12.0 | 13.0 | 31.5 | ||||
| RV 5.5-8 | 5/16 | 8.5 | 15.0 | 13.7 | 33.7 | ||||
| RV 5.5-10 | 3/8 | 10.5 | 15.0 | 13.7 | 33.7 | ||||
| RV 5.5-12 | 1/2 | 13.0 | 19.2 | 16.0 | 33.7 | ||||
Related Product
Features of ring terminal
1.Smooth funnel entry to make wire insertion easier.
2.Secure contacting even after multiple reconnections.
3.Long-term contact resistance.
4.No fraying of strands.
5.No breakage of wire strands when wire is bent,under stress or in vibration environment.
