Description of non-insulated ring crimp terminals

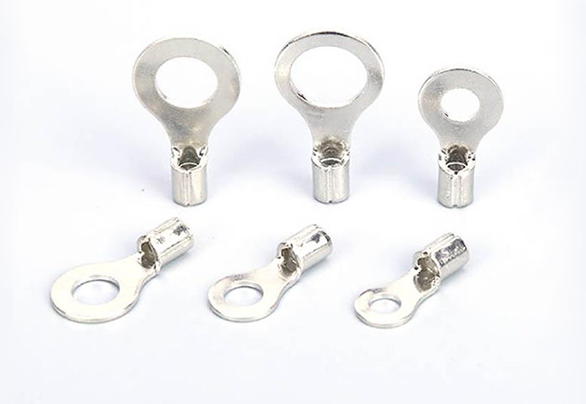

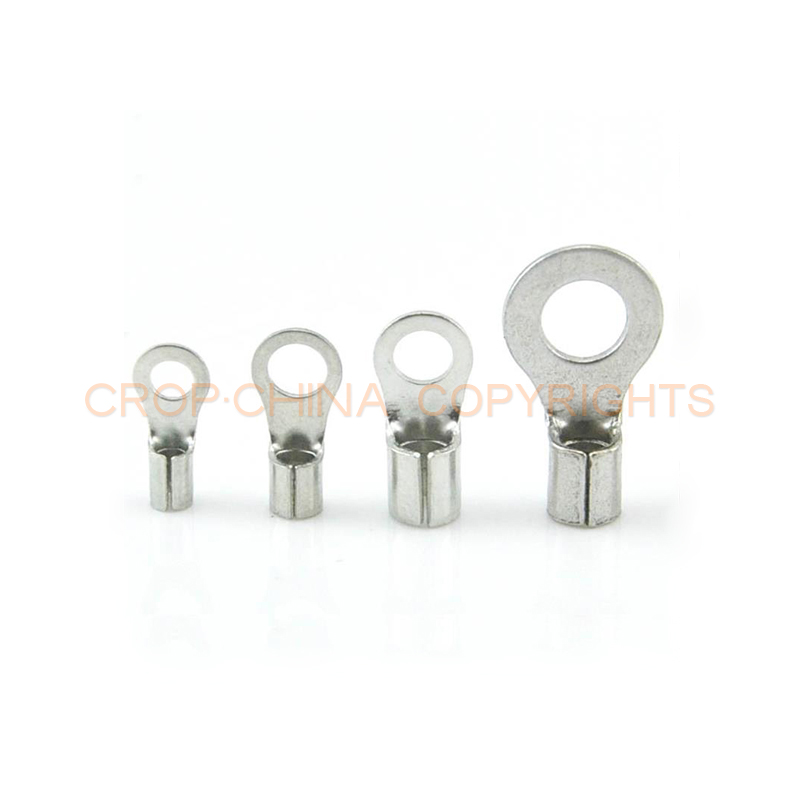

Non-insulated ring crimp terminals are also named ring crimp terminals or O type terminals.Ring crimp terminals are used to terminate stranded wires. it is made of tin plated copper,uninsulated ferrules are designed to form neat end terminations to multi-strand cables or wires.Smooth funnel entry assists in wire insertion.Crimp terminals are specifically designed to aid in termination of extra flexible fine stranded conductor,provides enhanced flexibility relating to wire termination and managementA positive contact surface helps ensure system integrity.ring crimp terminals disconnect is a kind of accessory for electrical connections,which can be crimped on cable/wire/electrical equipment.A wide range of premium quality lugs we can supply,and satisfy your different demands.
Material of ring crimp terminals
Tin plated copper
Features of O type terminals
1.Seamless barrels
2.Smooth funnel entry to make wire insertion easier

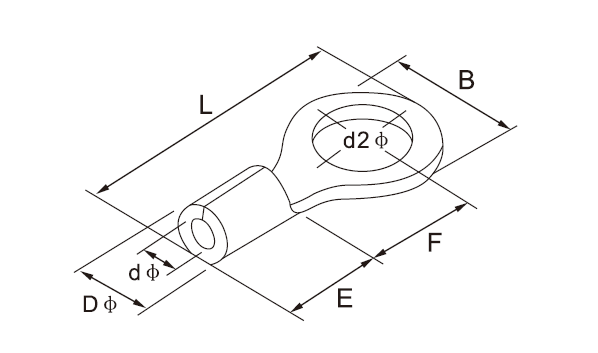

| Item No. | Bolt No. | Dia.of Bolt | Dimension(mm) | Specification | |||||
|---|---|---|---|---|---|---|---|---|---|
| d2(mm) | B | D | d | E | F | L | |||
| RNB 1.25-3 | #4 | 3.2 | 5.7 | 3.4 | 1.7 | 4.8 | 4.95 | 12.6 | Conductor section:0.5-1.5mm2 A.W.G.: 22-16 Max Current:I max.=19A Thickness: 0.7mm |
| RNB 1.25-3.5S | #6 | 3.7 | 5.7 | 4.95 | 12.6 | ||||
| RNB 1.25-3.5M | #6 | 3.7 | 6.6 | 6.3 | 14.4 | ||||
| RNB 1.25-3.5L | #6 | 3.7 | 7.2 | 7.0 | 15.8 | ||||
| RNB 1.25-4S | #8 | 4.3 | 6.6 | 6.3 | 14.4 | ||||
| RNB 1.25-4L | #8 | 4.3 | 8.0 | 7.0 | 15.8 | ||||
| RNB 1.25-5S | #10 | 5.3 | 8.0 | 7.0 | 15.8 | ||||
| RNB 1.25-5L | #10 | 5.3 | 9.5 | 8.0 | 18.0 | ||||
| RNB 1.25-5LL | #10 | 5.3 | 11.6 | 11.1 | 21.8 | ||||
| RNB 1.25-6S | 1/4 | 6.5 | 9.5 | 8.0 | 18.0 | ||||
| RNB 1.25-6 | 1/4 | 6.5 | 11.6 | 11.1 | 21.8 | ||||
| RNB 1.25-8 | 5/16 | 8.5 | 11.6 | 11.1 | 21.8 | ||||
| RNB 1.25-10 | 3/8 | 10.5 | 13.6 | 13.9 | 25.5 | ||||
| RNB 1.25-10L | 3/8 | 10.5 | 19.2 | 16.0 | 30.4 | ||||
| RNB 1.25-12 | 1/2 | 13.0 | 19.2 | 16.0 | 30.4 | ||||
| RNB 2-3 | #4 | 3.2 | 6.6 | 4.1 | 2.3 | 4.8 | 4.3 | 12.3 | Conductor section:1.5-2.5mm2 A.W.G.: 16-14 Max Current:I max.=27A Thickness: 0.8mm |
| RNB 2-3.5S | #6 | 3.7 | 6.6 | 4.3 | 12.3 | ||||
| RNB 2-3.5M | #6 | 3.7 | 6.6 | 7.0 | 16.0 | ||||
| RNB 2-3.5L | #6 | 3.7 | 8.5 | 7.75 | 16.8 | ||||
| RNB 2-4S | #8 | 4.3 | 6.6 | 7.00 | 16.8 | ||||
| RNB 2-4L | #8 | 4.3 | 8.5 | 7.75 | 16.8 | ||||
| RNB 2-5S | #10 | 5.3 | 8.5 | 7.75 | 16.8 | ||||
| RNB 2-5L | #10 | 5.3 | 9.5 | 7.25 | 16.8 | ||||
| RNB 2-6S | 1/4 | 6.5 | 9.5 | 7.25 | 16.8 | ||||
| RNB 2-6 | 1/4 | 6.5 | 12.0 | 11.0 | 21.8 | ||||
| RNB 2-8 | 5/16 | 8.5 | 12.0 | 11.0 | 21.8 | ||||
| RNB 2-10 | 3/8 | 10.5 | 13.6 | 13.9 | 25.5 | ||||
| RNB 2-10L | 3/8 | 10.5 | 19.3 | 16.0 | 30.4 | ||||
| RNB 2-12 | 1/2 | 13.0 | 19.2 | 16.0 | 30.4 | ||||
| RNB 3.5-4 | #8 | 4.3 | 8.0 | 5 | 3 | 6 | 7.7 | 18.0 | Conductor section:2.5-4mm2 A.W.G.: 14-12 Max Current:I max.=37A Thickness: 1.0mm |
| RNB 3.5-5S | #10 | 5.3 | 8.0 | 7.7 | 18.0 | ||||
| RNB 3.5-5L | #10 | 5.3 | 12.0 | 7.7 | 21.4 | ||||
| RNB 3.5-6 | 1/4 | 6.5 | 12.0 | 7.7 | 21.4 | ||||
| RNB 3.5-8 | 5/16 | 8.5 | 15.0 | 13.5 | 27.0 | ||||
| RNB 3.5-10 | 3/8 | 10.5 | 15.0 | 13.6 | 27.0 | ||||
| RNB 3.5-12 | 1/2 | 13.0 | 19.2 | 16.0 | 32.4 | ||||
| RNB 5.5-3.5 | #6 | 3.7 | 7.2 | 5.6 | 3.4 | 6.8 | 5.9 | 15.7 | Conductor section:4-6mm2 A.W.G.: 12-10 Max Current:I max.=48A Thickness: 1.0mm |
| RNB 5.5-4S | #8 | 4.3 | 7.2 | 5.9 | 15.7 | ||||
| RNB 5.5-4L | #8 | 4.3 | 9.5 | 8.3 | 19.8 | ||||
| RNB 5.5-5 | #10 | 5.3 | 9.5 | 8.3 | 19.8 | ||||
| RNB 5.5-6 | 1/4 | 6.5 | 12.0 | 13.0 | 25.8 | ||||
| RNB 5.5-8 | 5/16 | 8.5 | 15.0 | 13.7 | 28.0 | ||||
| RNB 5.5-10 | 3/8 | 10.5 | 15.0 | 13.7 | 28.0 | ||||
| RNB 5.5-12 | 1/2 | 13.0 | 19.2 | 16.0 | 32.4 | ||||
