Description

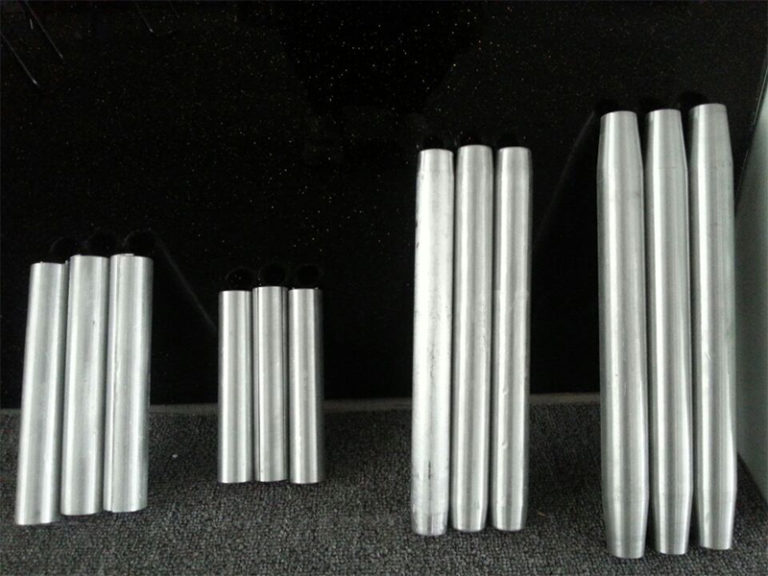

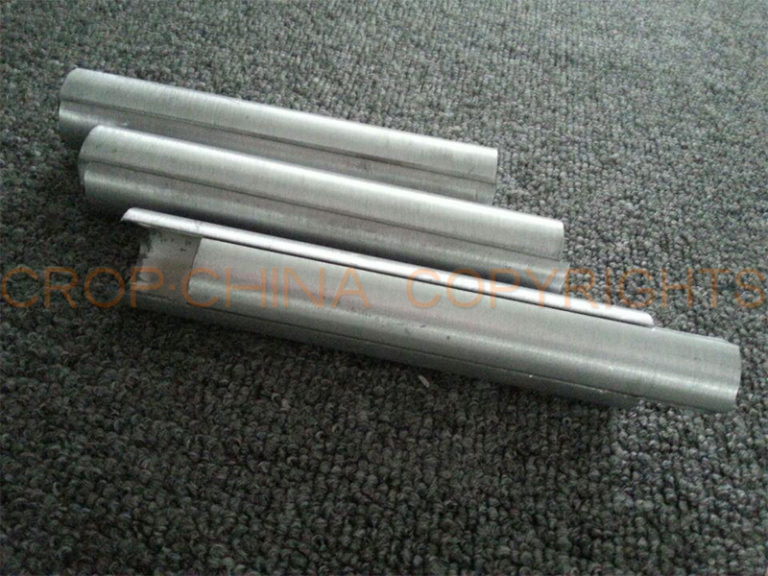

Description of ACSR repair sleeves
ACSR repair sleeves are also named mid span splice,repair sleeves are used for splicing or repairing aluminium conductor of overhead transmission and distribution lines.mid span splice provide a reliable,economical,and easy to install splicing method for overhead transmission and distribution lines.
onductor joint for aluminium conductor not only satisfy the basic tension requirements, but also deal with the problems of “cold flow” of aluminum and the oxide file which forms on the strands.The DC resistance of cable sleeve must be less than that of the equi-length conductor,the temperature rise of all conductor joint must be less than the splicing conductor.The slip strength of the splice connector must be less than 95% of the rated strength of conductor.
Features of repair sleeves
Easy to install,just for use with CRIMP tools only.
For ACSR,compact,5005,6201 and ACAR partial tension (40% tension rating) conductor jumper splicing.
Aluminum alloy conductor recommendations include 5005 and ACAR having the same diameter as a given ACSR conductor shown below. In addition, compressed (compact) conductor sizes within the same decimal conductor range are recommended.
Suitable conductor of mid span splice
ACSR conductor,steel wire
Material of splice
Sleeve: Aluminum
| Type | Suitable Conductor | Dimensions (mm) | ||
|---|---|---|---|---|
| D | L | R | ||
| JX-70/10 | LGJ-70/10 | 22 | 150 | 6.25 |
| JX-70/40 | LGJ-70/40 | 24 | 150 | 8.10 |
| JX-95 | LGJ-95/15/20 | 24 | 170 | 7.25 |
| JX-95/55 | LGJ-95/55 | 32 | 170 | 9.00 |
| JX-120 | LGJ-120/7/20 | 30 | 170 | 8.25 |
| JX-150 | LGJ-150/20/25 | 30 | 170 | 9.00 |
| JX-150/35 | LGJ-150/35 | 32 | 170 | 9.50 |
| JX-185/10 | LGJ-185/10 | 32 | 170 | 10.00 |
| JX-185 | LGJ-185/25/45 | 32 | 170 | 10.50 |
| JX-210 | LGJ-210/25/35 | 34 | 220 | 11.00 |
| JX-240 | LGJ-240/30/40 210/50 | 36 | 220 | 11.50 |
| JX-240/55 | LGJ-240/55 | 36 | 220 | 12.00 |
| JX-300/15 | LGJ-300/15 | 40 | 270 | 12.50 |
| JX-300 | LGJ-300/20/25/40/50 | 40 | 270 | 13.00 |
| JX-300/70 | LGJ-300/70 | 42 | 270 | 13.50 |
| JX-400 | LGJ-400/20/25/35/50 | 45 | 320 | 14.50 |
| JX-400/65 | LGJ-400/65 | 48 | 320 | 15.00 |
| JX-400/95 | LGJ-400/95 | 48 | 320 | 15.50 |
| JX-500 | LGJ-500/35/45/65 | 52 | 320 | 16.00 |
| JX-560/40 | LGJ-560/40 | 60 | 340 | 17.00 |
| JX-630 | LGJ-630/45/55/80 | 60 | 370 | 18.00 |
| JX-800/55 | LGJ-800/55 | 65 | 370 | 20.00 |
| JX-800 | LGJ-800/70/100 | 65 | 370 | 20.50 |
| JX-25G | GJ-25 | 14 | 100 | 7.20 |
| JX-35G | GJ-35 | 16 | 100 | 8.40 |
| JX-50G | GJ-50 | 18 | 100 | 9.60 |
| JX-55G | GJ-55 | 20 | 120 | 10.30 |
| JX-70G | GJ-70 | 22 | 120 | 11.60 |
| JX-80G | GJ-800 | 24 | 140 | 12.00 |
| JX-100G | GJ-100 | 26 | 160 | 14.00 |
| JX-120G | GJ-120 | 28 | 170 | 15.00 |
| JX-150G | GJ-150 | 32 | 200 | 16.50 |
