Description

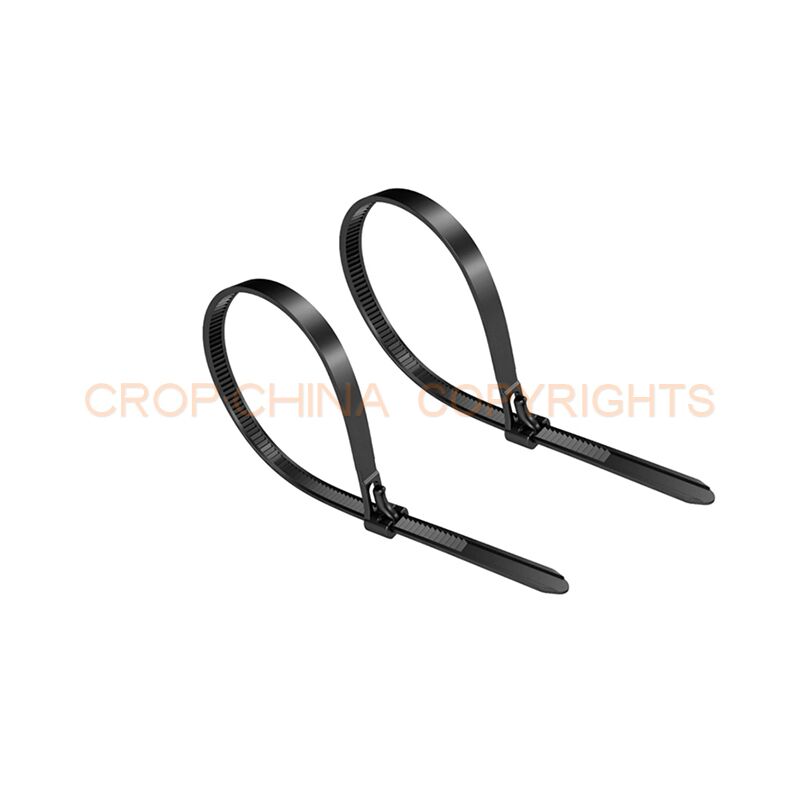

Description of nylon cable tie with releasable head
Nylon cable tie with releasable head (as known as a hose tie, zip tie) is used as fastener.For holding items like electrical cables,wires or other things in the electrical & electronic together.Cause the low cost and ease of use,cable zip ties are use in a wide range of other applications.
The common cable tie, normally made of nylon.It has a flexible tape section with teeth that engage with a pawl in the head to form a ratchet.so that as the free end of the tape section is pulled the cable tie tightens and does not come undone. Some ties include a tab that can be depressed to release the ratchet, so that the tie can be loosened or removed,and possibly reused.
Working temperature:Applied form -10℃ to 85℃。
Material:Nylon 66,94V-2 UL.
Cable tie HS code:3916901000
Feature:Flame-retardant(94V-2),heat-resistant,insulated well and not easy to age, releasable and reuseable.
Usage:Releasable cable ties which are easily assembled by hand or with pliers.
Colour:White,Black,nature standard color or other colour according to customer request.
We can do OEM according to the samples or drawings.
| Item No. | Length | W(mm) | Bundle diameter (mm) |
Min Tensile strength | ||
|---|---|---|---|---|---|---|
| Inch | L(mm) | LBS | KGS | |||
| CT-150RT | 6″ | 150 | 7.2 | 35 | 50 | 22 |
| CT-200RT | 8″ | 200 | 50 | 50 | 22 | |
| CT-250RT | 10″ | 250 | 65 | 50 | 22 | |
| CT-300RT | 12″ | 300 | 80 | 50 | 22 | |
| CT-400RT | 16″ | 400 | 100 | 50 | 22 | |
| Item No. | Length (mm) |
W(mm) | Bundle diameter (mm) |
Min Tensile strength | ||
|---|---|---|---|---|---|---|
| LBS | KGS | |||||
| CT-100 | 100 | 3.6 | 22 | 40 | 18 | |
| CT-150 | 150 | 4.7 | 35 | 50 | 22 | |
| CT-200 | 200 | 4.7 | 50 | 50 | 22 | |
| CT-250 | 250 | 4.8 | 65 | 50 | 22 | |
| CT-300 | 300 | 4.7 | 65 | 50 | 22 | |
