Description

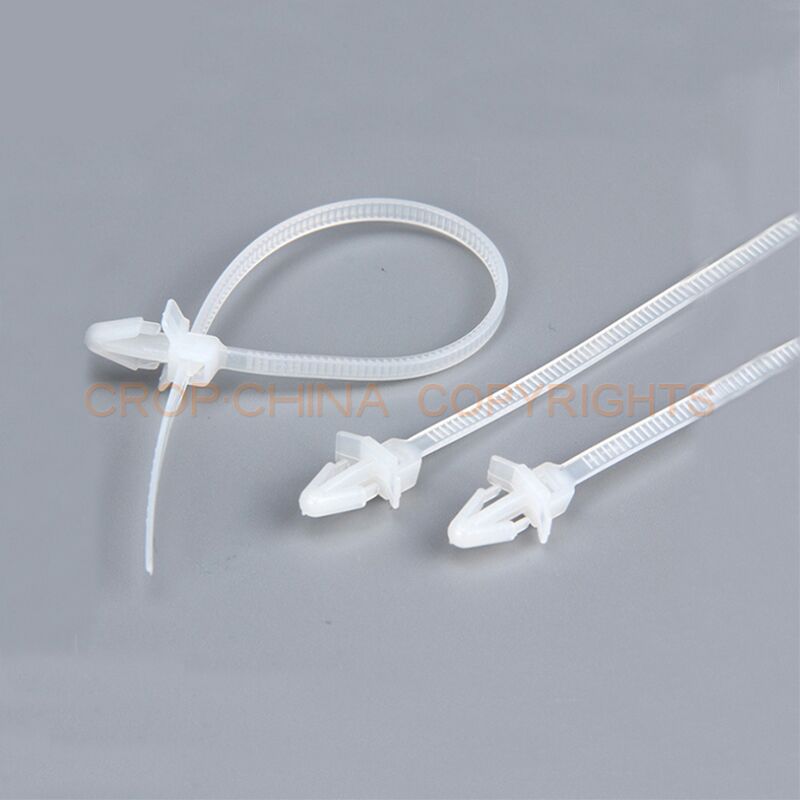

Description of nylon cable tie mount
Cable tie mount (as known as a hose tie, zip tie) is used as fastener,for holding items like cables, wires, conducts, plants or other things in the industry of electrical & electronic,lighting,hardware,pharmaceutical,chemical,computer,machinery,agriculture together,primarily electrical cables or wires.Cause the low cost and ease of use,cable zip ties are use in a wide range of other applications.
The common cable tie, normally made of nylon, has a flexible tape section with teeth that engage with a pawl in the head to form a ratchet so that as the free end of the tape section is pulled the cable tie tightens and does not come undone. Some ties include a tab that can be depressed to release the ratchet so that the tie can be loosened or removed,and possibly reused.
Working temperature:Applied form -10℃ to 85℃
Material:Nylon 66,94V-2 UL.
Cable tie HS code:3916901000
Feature:Flame-retardant(94V-2),heat-resistant,insulated well and not easy to age, releasable and reuseable.
Usage:Insert the cable tie to the hole of table and tighten it.
Colour:White,Black,nature standard color or other colour according to customer request.
We can do OEM according to the samples or drawings.
| Item No. | Length | W(mm) | Max.Bundle diameter (mm) | Min Tensile strength | Hole Diameter (mm) | Panel Thickness | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Inch | L(mm) | LBS | KGS | Inch | mm | Inch | mm | |||
| CT-100PT | 4″ | 100 | 2.5 | 25 | 18 | 8.0 | 0.189 | 4.5 | 0.094 | 2.4 |
| CT-150PT | 6″ | 155 | 3.6 | 35 | 40 | 18 | 0.181 | 4.6 | 0.091 | 2.3 |
| CT-200PT | 8″ | 200 | 4.8 | 50 | 50 | 22 | 0.236 | 6.0 | 0.118 | 3.0 |
| Item No. | Length | W(mm) | Max.Bundle diameter (mm) | Min Tensile strength | Hole Diameter (mm) | Panel Thickness | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Inch | L(mm) | LBS | KGS | Inch | mm | Inch | mm | |||
| CT-190PT | 7.6″ | 190 | 4.8 | 3-42 | 50 | 22 | 0.236 | 6 | 0.118 | 3 |
