Protection sleeves for overhead insulated conductor JY-LY series

Send Inquiry
Category:
Description

Description

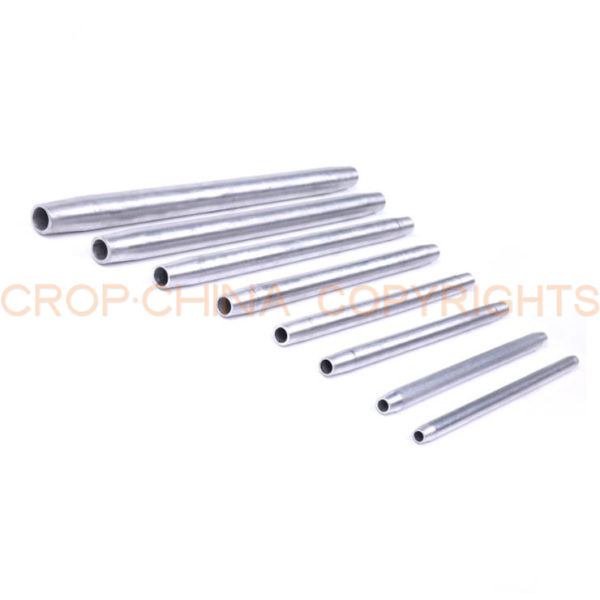

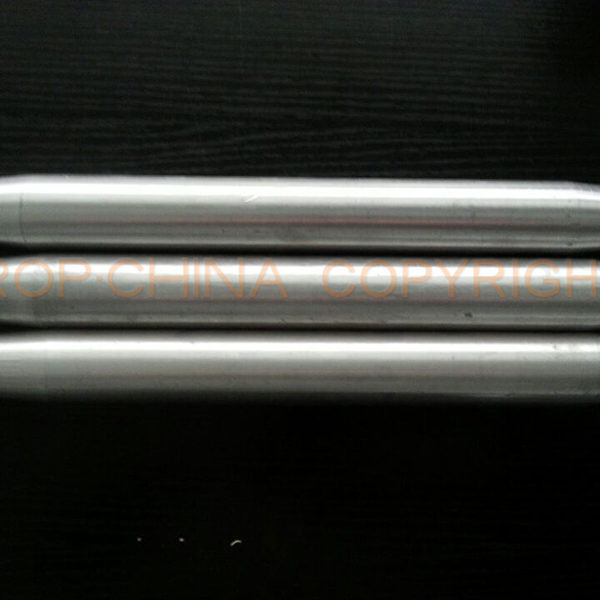

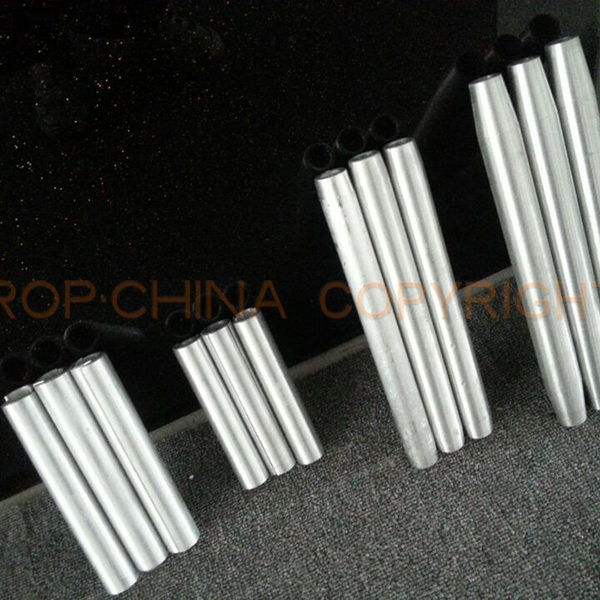

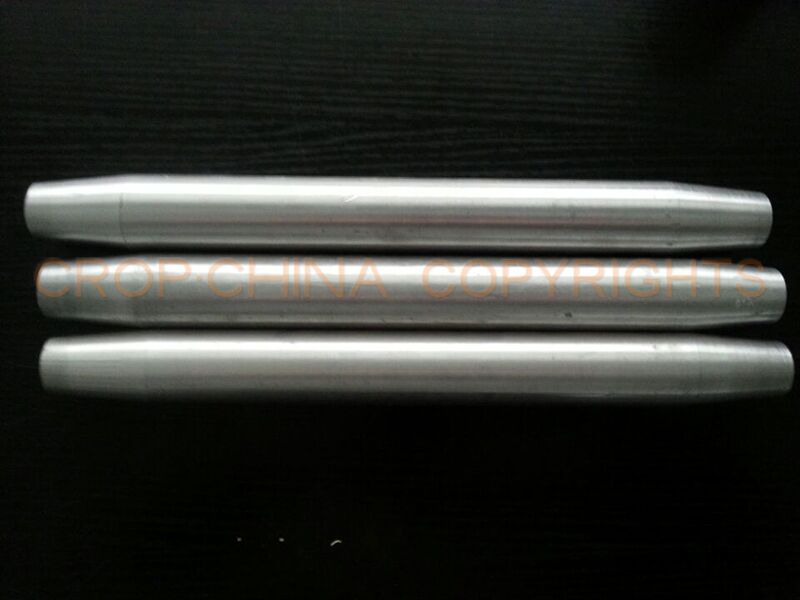

Description of mid span splice protection sleeves

Mid span splice protection sleeves are also named conductor joint,splice protection sleeves are used for splicing or repairing overhead insulated conductor of overhead transmission and distribution lines.line splice provide a reliable,economical,and easy to install splicing method for overhead transmission and distribution lines.
conductor joint for aluminium conductor not only satisfy the basic tension requirements, but also deal with the problems of “cold flow” of aluminum and the oxide file which forms on the strands.The DC resistance of cable sleeve must be less than that of the equi-length conductor,the temperature rise of all mid span splice must be less than the splicing conductor.The slip strength of the splice connector must be less than 95% of the rated strength of conductor.

Features of splice protection sleeves

Easy to install,just for use with CRIMP tools only.
For ACSR,compact,5005,6201 and ACAR partial tension (40% tension rating) conductor jumper splicing.
Aluminum alloy conductor recommendations include 5005 and ACAR having the same diameter as a given ACSR conductor shown below. In addition, compressed (compact) conductor sizes within the same decimal conductor range are recommended.

Suitable conductor of conductor joint

Aluminum conductor

Material of mid span splice

Sleeve: Aluminum

Mid span splice protection sleeves, conductor joint,splice protection sleeves,Mid span splice,protection sleeves
Insulation cover
Mid span splice protection sleeves, conductor joint,splice protection sleeves,Mid span splice,protection sleeves

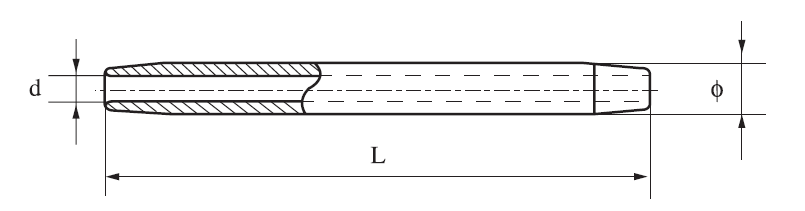

Item No. Conductor(mm2) Dimension(mm) Grip Strength
(kN)
Insulation cover No.
d φ L
JY-35LY JKLYJ-35 7.6 20 130 4.9 JY-35/50
JY-50LY JKLYJ-50 9 20 140 6.7
JY-70LY JKLYJ-70 11 22 170 9.8 JY-70/95
JY-95LY JKLYJ-95 12.5 24 180 13
JY-120LY JKLYJ-120 14 26 210 16.5 JY-120/150
JY-150LY JKLYJ-150 15.5 28 240 20
JY-185LY JKLYJ-185 17 32 260 25.4 JY-185/240
JY-240LY JKLYJ-240 19.5 34 290 33
JY-300LY JKLYJ-300 22 36 310 38.7 JY-300
