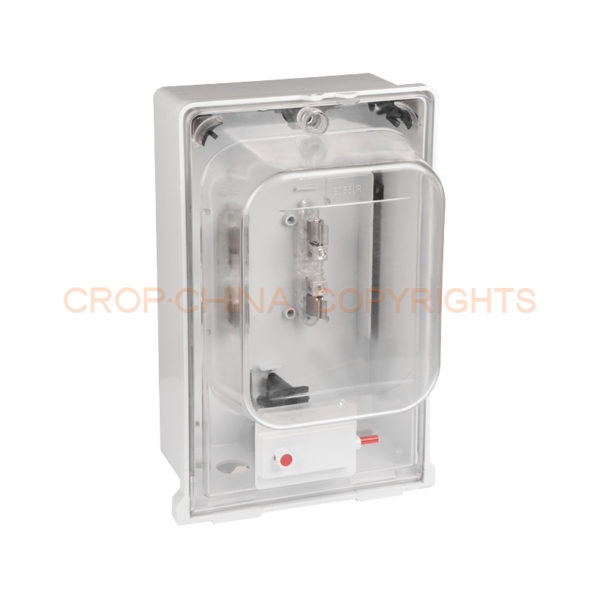

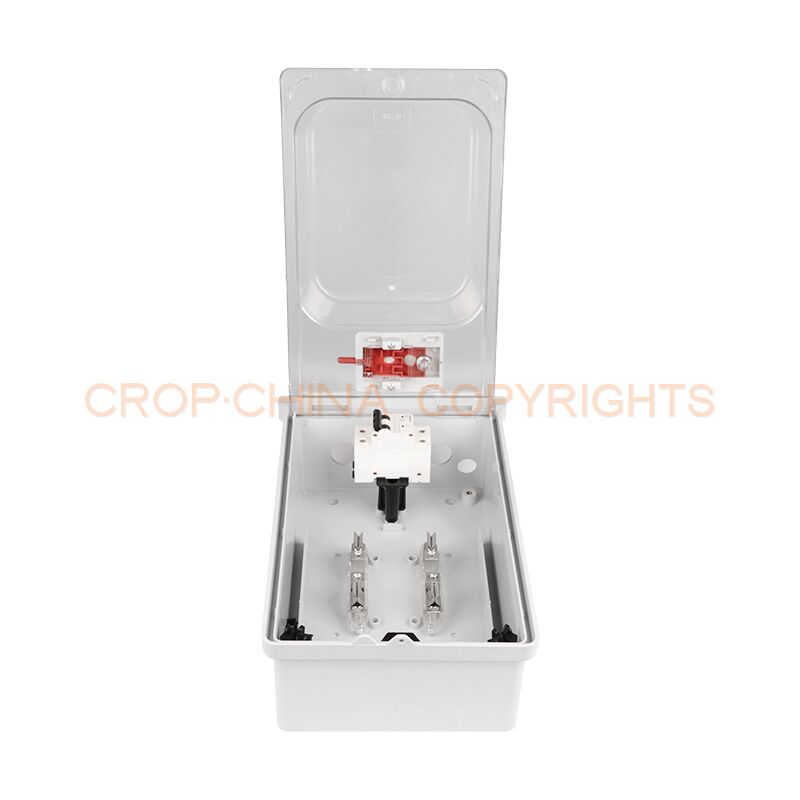

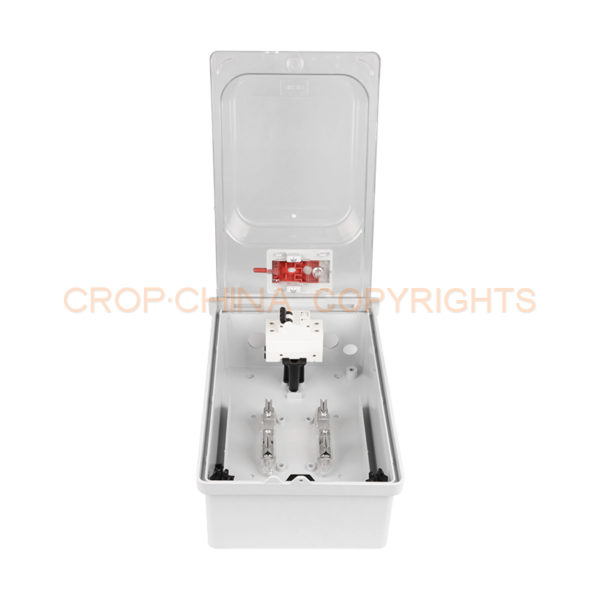

Polyphase Meter Box

Suitable for receiving a single-phase or two-phase meter with energy boxes the thermo-magnetic switch or a three-phase meter without switch. It allows to install removable gauges type “socket” or meters “bottom”, according to the case is provided with respective accessories. Optionally you can install a device for driving a unipolar or bipolar

Send Inquiry
Category:
Description

Description



Polyphase Meter Box

PMB005(No-breaker)

Size: 345×207×200
Height: 345mm
Base height: 120mm
Base deep: 109mm
Width: 207mm
System
Voltage: 120V/240V, Max: 600V
Current: 100A, Max: 125A
Max earth conductor size: 25mm2
Cable Gland: 2×M32, 1×M21
Contacting: copper tinned with Stainless steel “S”

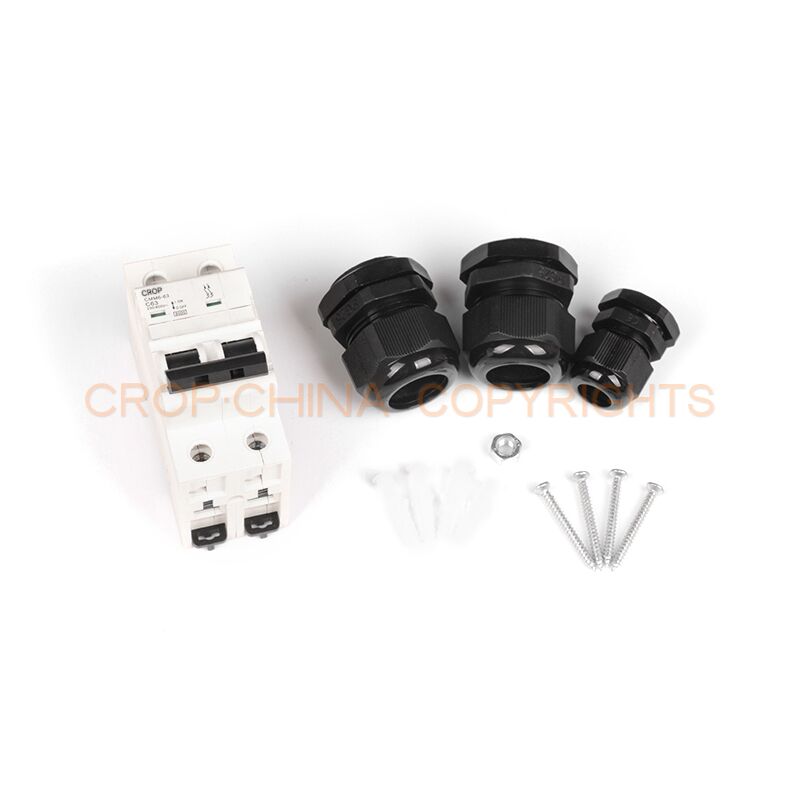

Accessories
Connector: copper tinned with Allen head screw
Comply with UNE 50298

PMB005(120V)

Size: 345×207×200
Height: 345mm
Base height: 120mm
Base deep: 109mm
Width: 207mm
System
Voltage: 120V/240V, Max: 600V
Current: 100A, Max: 125A
Max earth conductor size: 25mm2
Breaker: 600V, 1P, C, 40A, 10kA
Cable Gland: 2×M32, 1×M21
Contacting: copper tinned with Stainless steel “S”
Accessories
Connector: copper tinned with Allen head screw
Comply with UNE 50298

PMB005(240V)

Size: 345×207×200
Height: 345mm
Base height: 120mm
Base deep: 109mm
Width: 207mm
System
Voltage: 120V/240V, Max: 600V
Current: 100A, Max: 125A
Max earth conductor size: 25mm2
Breaker: 600V, 2P, C, 63A, 10kA
Cable Gland: 2×M32, 1×M21
Contacting: copper tinned with Stainless steel “S”
Accessories
Connector: copper tinned with Allen head screw
Comply with UNE 50298
