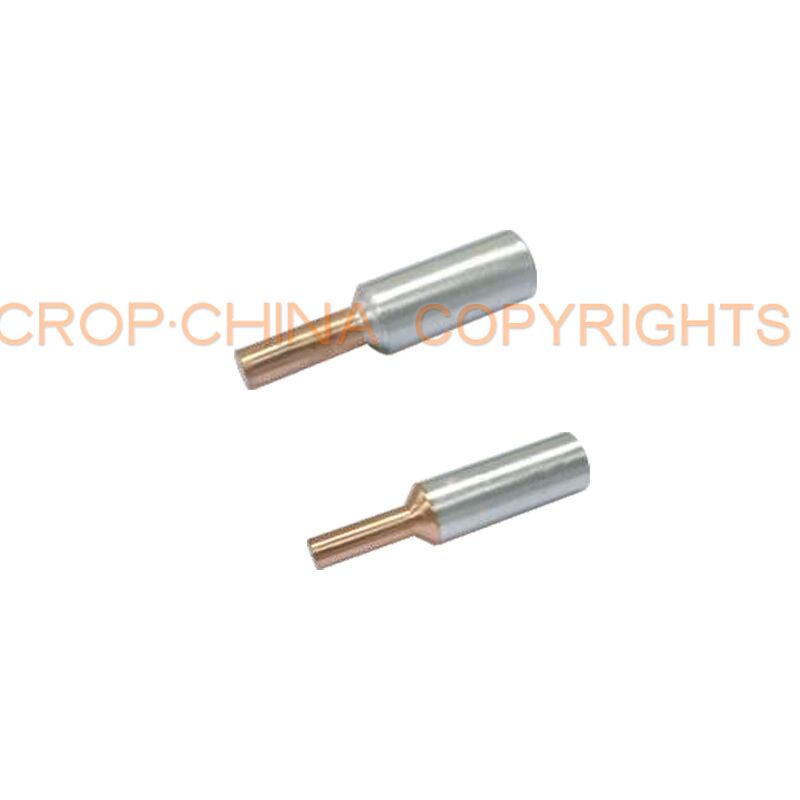

PIN type connectors

Description:

The pin type connectors are friction welded from the highest quality aluminum and copper,\

The barrels are coated with jointing compound

Material:

AC99.6% DIN40501,E-Cu DIN 40500

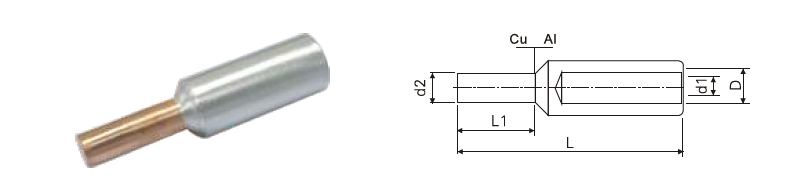

PIN type connectors

Type Section(mm² Dimension
d1 D d2 L1 L
PBL-16A 16 5.5 12 6 20 58
PBL-25A 25 6.8 12 6 20 58
PBL-35A 35 8.3 14 7 22 71
PBL-50A 50 10 16 8 25 74
PBL-70A 70 11.5 18.5 10 30 87
PBL-95A 95 13.2 22.5 12 33 91
PBL-120A 120 14.7 23 12 38 98
PBL-150A 150 16.3 25 12 38 108
PBL-185A 185 18.3 28.5 14 44 116
PBL-240A 240 21 32 16 44 128
PBL-300A 300 23.3 38.5 18 46 131
PBL-400A 400 26 40 18 56 153
