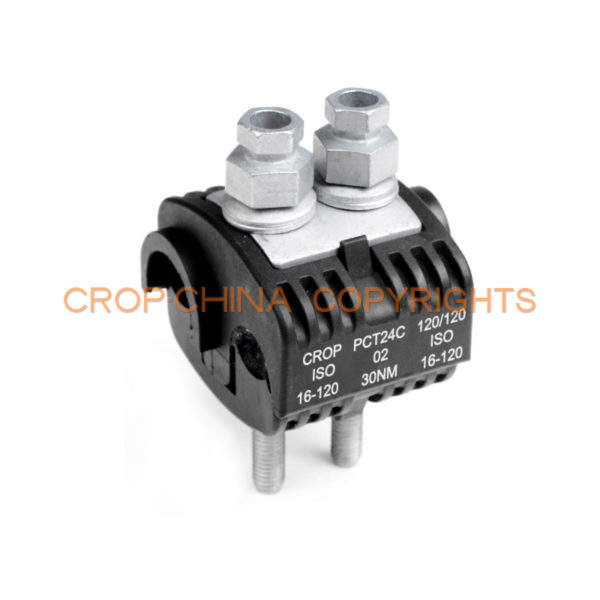

Piercing Connector PCT24C Series

CROP Catalogue No.: 110-01 Insulation Piercing Connector 2 bolt  1KV & 10kV The waterproof insulation piercing connectors are suitable for majority types of 10kV ABC conductors as well as connections to service and lighting cable cores. When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed(fuse nut). Stripping of insulation is avoided. Service condition: 10kV, 50/60Hz, -10°C to 55°C Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.

Send Inquiry
Category:
Description

Description

waterproof piercing connectors

Description of waterproof piercing connectors

The waterproof piercing connectors are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores. When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed(fuse nut). Stripping of insulation is avoided.
Service condition: <1kV, 50/60Hz, -10°C to 55°C
Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.

Material of piercing connectors

Body: Thermoplastic polyamide 66 with fiberglass
Connecting bridge: Copper tinned, Brass tinned, Al
Sealing parts: Flexible PVC
End cap: Flexible PVC
Grease: Silica gel
Bolt: Hot dip galvanized steel, 8.8 grade
Washer, Nut: Hot dip galvanized steel
Fuse nut: Zinc alloy

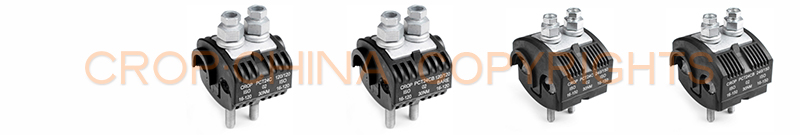

Models PCT24C 120/120 PCT24CB 120/120 PCT24C 240/150 PCT24CB 240/150
Main Line(mm²) 16-120 16-120 95-240 95-240
Service Line (mm²) 16-120 (B)16-120 16-150 (B)16-150
Bolt No. 2 2 2 2
Torque (Nm) 22NM 22NM 30NM 30NM
Remarks ISO to ISO ISO to Bare ISO to ISO ISO to Bare

10KV Piercing Connector

Related Product

waterproof piercing connectors

Features of insulation piercing connector

• Tested for watertightness at a voltage of 6 kV for 30 min in a water bath
• Potential free tightening bolts allow safe installations on life lines
• Bimetallic, suitable for aluminium and copper conductors
• Long neck 13 mm shear head nut ensuring reliable installations
• Components not isolated, end cap attached to body
• Insulation material made of weather and UV resistant glass fibre reinforced polymer
