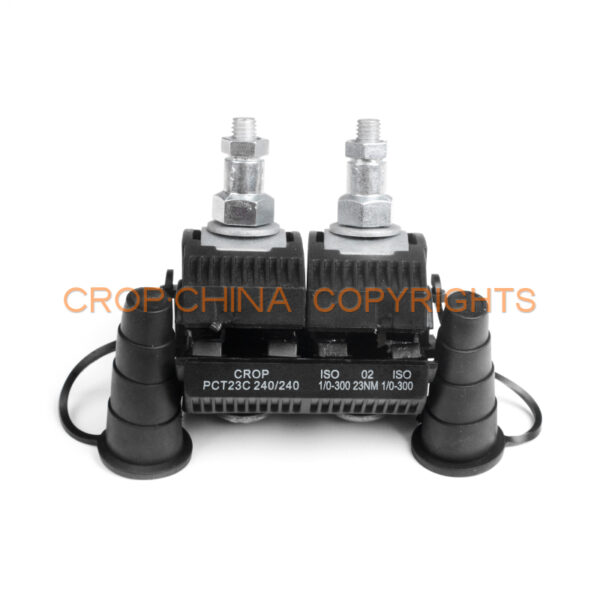

Piercing Connector for LV ABC PCT23C 240/240

Piercing connector for LV ABC

Origin: China

Type: PCT23C 240/240

Cable range: Main: 50-240 mm2,Branch: 50-240 mm2

Bolt No.: 2

Torque: 23Nm

*Copper tinned teeth can be used for copper or aluminum conductor.

Aluminum teeth can be used for aluminum conductor.

Sample: Free supply

OEM/ODM: Can be customized

Send Inquiry
描述

描述

Piercing Connector for LV ABC Insulated Networks (connection to main conductor from 95 to 240 mm2)PCT23C 240/240

Description of piercing connector for ab cable

Piercing connector for lv abc as well as connections to service and lighting cable cores.The Connection of piercing connector for ab cable shall be achieved by a simple operation of a fully insulated tightening bolt without this tightening bolt coming into contact with live component. The screw head of the bolt shall shear off when the correct torque has been reached. Through such an arrangement the insulation piercing connectors shall be suitable, tested and guaranteed for installation on energized lines.  The piercing connector body shall be made of a mechanically strong, weather resistant insulating material having also UV resistant characteristics.The fastening bolt and associated tightening nut shall be made of stainless steel and the tightening operation shall only require standard tools.

waterproof insulated piercing connectors

Models JBC-0 JBC-1 JBC-2 PCT23C 240-240
Main Line(mm²) 25-70 35-70 35-150 50-240
Service Line (mm²) 6-35 6-35 35-150 50-240
Bolt No. 1 1 1 2
Torque (Nm) 10NM 13NM 17NM 23NM
Remarks ISO to ISO ISO to ISO ISO to ISO ISO to ISO

















The connector shall be equipped with contact plates suitable for operation on both copper and aluminium conductors.  The plates shall have suitably rated contact teeth that will penetrate the insulation and secure the desired connection once the ‘voltage free’ bolt is tightened.  Both the main and branch conductor insulations are pierced by single bolt action. The connector must have a self-aligning flexible sealing end cap for protection of branch cable.

Service condition: <1kV, 50/60Hz, -10°C to 55°C
Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.





Material of insulation piercing connectors

Body: Thermoplastic polyamide 66 with fiberglass
Connecting bridge: Copper tinned, Brass tinned, Al
Sealing parts: Flexible PVC
End cap: Flexible PVC
Grease: Silica gel
Bolt: Hot dip galvanized steel, 8.8 grade
Washer, Nut: Hot dip galvanized steel
Fuse nut: Zinc alloy

Related Product of piercing connector

insulated piercing connectors

Features of piercing connector

• Tested for watertightness at a voltage of 6 kV for 30 min in a water bath
• Potential free tightening bolts allow safe installations on life lines
• Bimetallic, suitable for aluminium and copper conductors
• Long neck 13 mm shear head nut ensuring reliable installations
• Components not isolated, end cap attached to body
• Insulation material made of weather and UV resistant glass fibre reinforced polymer

Piercing Connector for LV ABC Catalogue Download
