Copper Connectors OT Series

Send Inquiry
Description

Description

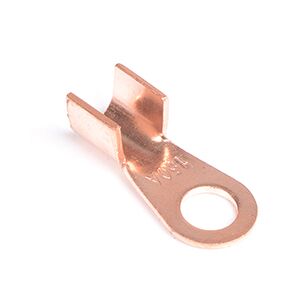

CABLE LUG (OT)

Material
OT series hole-passing connection tube is made of T2 copper tube.

Model Ø H(mm) L(mm) R(mm) R1(mm) A(mm)
OT-10A Ø5.2 6 14.5 4.5 2 0.8
OT-20A Ø6.2 7 17 5.5 2.5 1
OT-30A Ø6.2 8.2 19 5.8 3.2 1.2
OT-40A Ø6.2 9 19.5 6.2 3.5 1.2
OT-50A Ø6.2 9 21.5 6.5 3.5 1.2
OT-60A Ø8.2 10 23 7.8 4 1.4
OT-80A Ø8.2 11 25 8 4.5 1.5
OT-100A Ø8.2 12 29 8.5 5 1.5
OT-150A Ø10.2 12 31 9 5.5 1.6
OT-200A Ø10.2 14 33 10 6 1.7
OT-250A Ø10.2 15.5 36 10.5 6.5 2
OT-300A Ø12.2 16 40 11.5 7 2
OT-400A Ø12.2 18 43 13 8 2.2
OT-500A Ø14.2 20 46 14.5 8.5 2.4
OT-600A Ø16.2 22 50.5 16 10.5 2.8
OT-800A Ø18.2 26 61 17.5 12.5 3.2
OT-1000A Ø18.2 33 66 20.5 15.5 3.8
