Nylon cable tie with mountable head

Send Inquiry
Description

Description

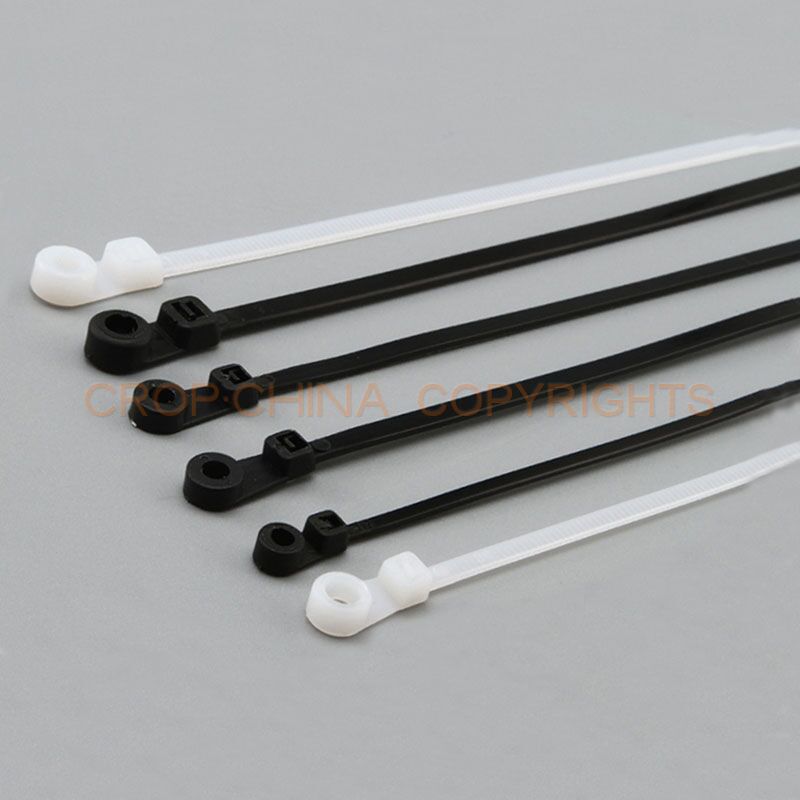

Description of tie out cable with mountable head

Tie out cable with mountable head (as known as a hose tie, zip tie) is used as fastener,for holding items like cables, wires, conducts, plants or other things in the industry of electrical & electronic,lighting,hardware,pharmaceutical,chemical,computer,machinery,agriculture together,primarily electrical cables or wires.Cause the low cost and ease of use,cable zip ties are use in a wide range of other applications.

The common cable tie, normally made of nylon, has a flexible tape section with teeth that engage with a pawl in the head to form a ratchet so that as the free end of the tape section is pulled the cable tie tightens and does not come undone. Some ties include a tab that can be depressed to release the ratchet so that the tie can be loosened or removed,and possibly reused.

Working temperature:Applied form -10℃ to 85℃。

Material:Nylon 66,94V-2 UL.

Cable tie HS code:3916901000

Feature:Flame-retardant(94V-2),heat-resistant,insulated well and not easy to age.

Usage:After bundling wires,fix them on plate with screw.

Colour:White,Black,nature standard color or other colour according to customer request.

We can do OEM according to the samples or drawings.

Item No. Length W(mm) Bundle diameter
E(mm)
Min Tensile strength
Inch L(mm) LBS KGS
CT-100MT 4″ 100 2.5 22 18 8
CT-150MT 6″ 150 3.6 32 40 18
CT-200MT 8″ 200 4.8 42 50 22
CT-300MT 12″ 300 7.2 80 120 55
