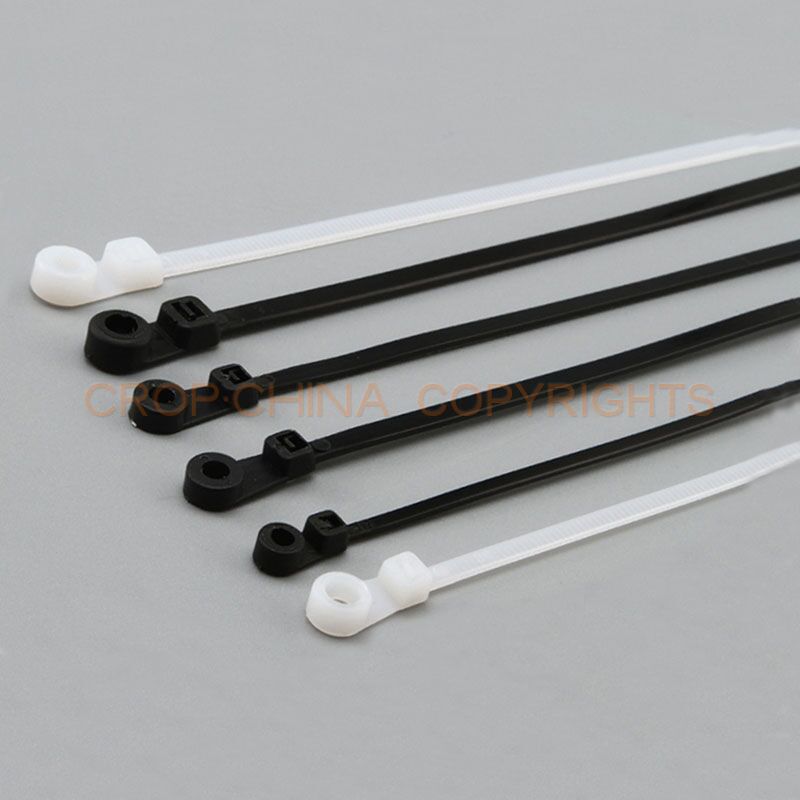

Description of tie out cable with mountable head
Tie out cable with mountable head (as known as a hose tie, zip tie) is used as fastener,for holding items like cables, wires, conducts, plants or other things in the industry of electrical & electronic,lighting,hardware,pharmaceutical,chemical,computer,machinery,agriculture together,primarily electrical cables or wires.Cause the low cost and ease of use,cable zip ties are use in a wide range of other applications.
The common cable tie, normally made of nylon, has a flexible tape section with teeth that engage with a pawl in the head to form a ratchet so that as the free end of the tape section is pulled the cable tie tightens and does not come undone. Some ties include a tab that can be depressed to release the ratchet so that the tie can be loosened or removed,and possibly reused.
Working temperature:Applied form -10℃ to 85℃。
Material:Nylon 66,94V-2 UL.
Cable tie HS code:3916901000
Feature:Flame-retardant(94V-2),heat-resistant,insulated well and not easy to age.
Usage:After bundling wires,fix them on plate with screw.
Colour:White,Black,nature standard color or other colour according to customer request.
We can do OEM according to the samples or drawings.
| Item No. | Length | W(mm) | Bundle diameter E(mm) |
Min Tensile strength | ||
|---|---|---|---|---|---|---|
| Inch | L(mm) | LBS | KGS | |||
| CT-100MT | 4″ | 100 | 2.5 | 22 | 18 | 8 |
| CT-150MT | 6″ | 150 | 3.6 | 32 | 40 | 18 |
| CT-200MT | 8″ | 200 | 4.8 | 42 | 50 | 22 |
| CT-300MT | 12″ | 300 | 7.2 | 80 | 120 | 55 |
