Description

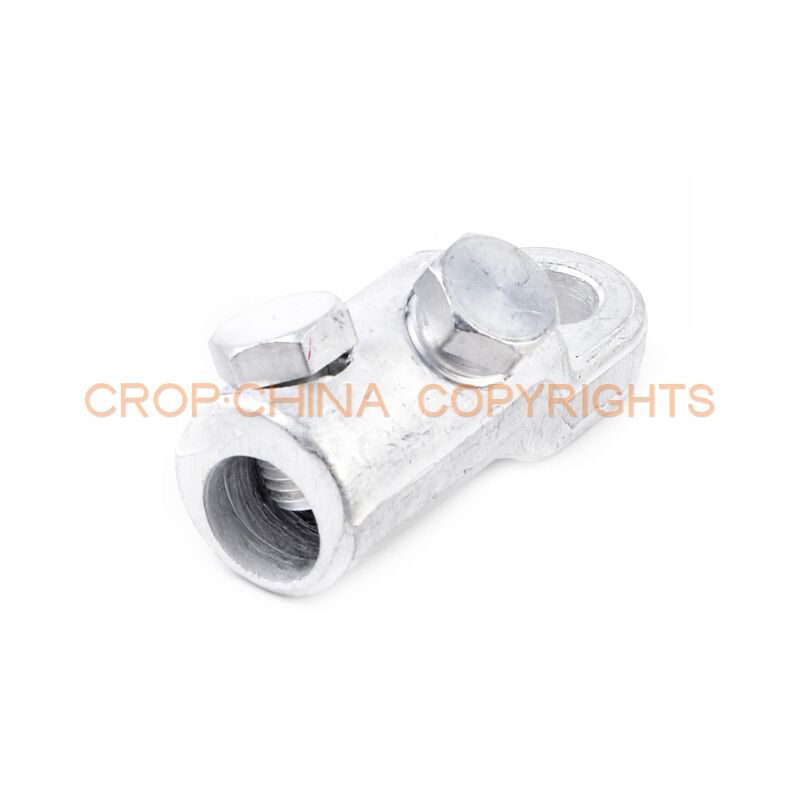

Mechanical cable lug aluminum with shear head bolts
FEATURES
1.The mechanical cable lug designed to be connected on to a conductor to facilitate the termination of the cable without the need for crimping.
2.;Low torque shear head bolts.
3.Solid moisture block between palm and barrel.
4.Range taking.
| Type | Cable range mm2 |
Dia. Of mounting hole | Dimension(mm) | No.of Torque bolts | Bolts head size | ||
| length of insert | O.D of terminal | I.D of terminal | AF | ||||
| MEC-70/120-13 | 70-120 | 13 | 47 | 27 | 17 | 2 | 16 |
| MEC-150/240-17 | 150-240 | 17 | 54 | 37.5 | 25 | 2 | 18 |
