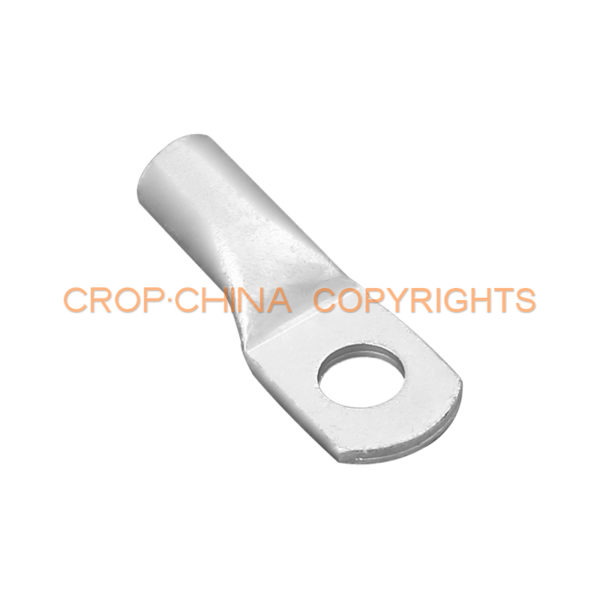

CABLE LUG (JGA)
Description
Working temperature: -55°C ~ 150°C.
Material
Copper Tinned: 99.9% pure copper tube T2 and with Tinned coating.

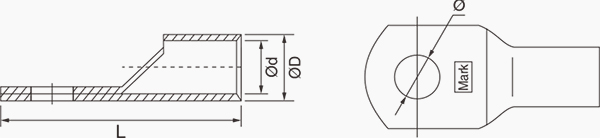

| Model | Ø | D(mm) | d(mm) | L(mm) |
| JGA-1.5 | Ø4.2 Ø5.2 | 3.5 | 1.8 | 18 |
| JGA-2.5 | Ø4.2 Ø5.2 Ø6.2 | 4 | 2.5 | 19 |
| JGA-4 | Ø5.2 Ø6.2 | 4.8 | 3.1 | 21 |
| JGA-6 | Ø5.2 Ø6.2 Ø8.2 | 5.5 | 3.8 | 24 |
| JGA-10 | Ø6.2 Ø8.2 | 6.8 | 4.8 | 25.5 |
| JGA-16 | Ø6.2 Ø8.2 Ø10.5 | 7.5 | 5.5 | 30.5 |
| JGA-25 | Ø6.2 Ø8.2 Ø10.5 | 9 | 7 | 34 |
| JGA-35 | Ø6.2 Ø8.2 Ø10.5 Ø12.5 | 10.5 | 8.2 | 38 |
| JGA-50 | Ø8.2 Ø10.5 Ø12.5 | 12.5 | 9.8 | 45 |
| JGA-70 | Ø8.2 Ø10.5 Ø12.5 | 14.5 | 11.5 | 50 |
| JGA-95 | Ø10.5 Ø12.5 | 17.5 | 13.8 | 55.5 |
| JGA-120 | Ø10.5 Ø16.5 | 19.5 | 15.5 | 63 |
| JGA-150 | Ø12.5 Ø16.5 | 21 | 16.5 | 71 |
| JGA-185 | 16.5 | 23.5 | 18.8 | 78 |
| JGA-240 | 16.5 | 26.5 | 21 | 92 |
| JGA-300 | Ø16.5 Ø20.5 | 30 | 24 | 102 |
| JGA-400 | Ø16.5 Ø20.5 | 34 | 26.5 | 113 |
| JGA-500 | Ø16.5 Ø20.5 | 38 | 30 | 123 |
| JGA-630 | 20.5 | 45 | 35 | 135 |
