Description of Insulated wire ferrules

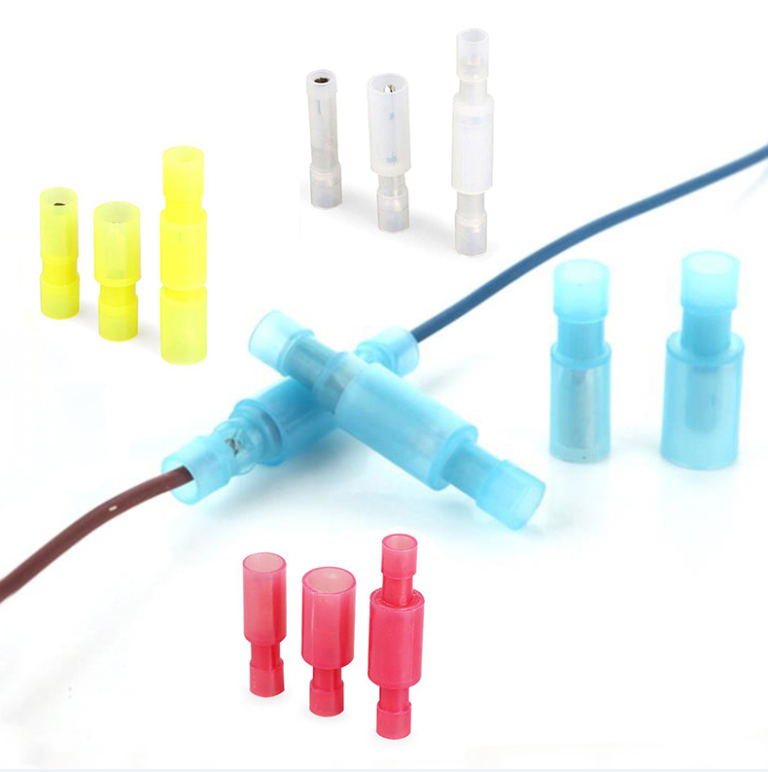

Insulated wire ferrules nylon tubular terminal FRFNY&MPFNY type are electrical connectors used to terminate stranded wires,creating a quality,reliable connection by ensuring each wire strand conducts current when properly crimped.Insulated wire ferrules nylon crimp terminal especially useful when multiple reconnections could be necessary within terminal blocks or other similar devices. No breakage of wire strands when wire is bent, under stress or in a vibration environment. Twin ferrule designs allow two individual stranded conductors to be connected to the same termination,most beneficial in jumpering or other similar applications.
Material of wire ferrules
Tin plated copper,Nylon
| Item No. | Conductor Section | Dimension(mm) | Max.Current | Colour | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A.W.G. | mm2 | B | b | D | d | F | H | L | |||
| FRFNY0.5-0.78 | 24-18 | 0.3-1 | 3.3 | 2 | 3.8 | 1.7 | 13.2 | 11.8 | 25 | 10A | White |
| MPFNY0.5-0.78 | 24-18 | 0.3-1 | 5.2 | 2 | 3.8 | 1.7 | 15.8 | 11.2 | 27.5 | 10A | White |
| FRFNY1.25-156 | 22-16 | 0.5-1.5 | 6.9 | 3.9 | 4.3 | 1.8 | 13.5 | 11 | 24.5 | 10A | Red |
| MPFNY1.25-156 | 22-16 | 0.5-1.5 | 7.4 | 4 | 4.3 | 1.8 | 14.8 | 11 | 25.5 | 10A | Red |
| FRFNY2-156 | 16-14 | 1.5-2.5 | 6.9 | 3.9 | 5 | 2.4 | 13.5 | 11 | 24.5 | 15A | Blue |
| MPFNY2-156 | 16-14 | 1.5-2.5 | 7.4 | 4 | 5 | 2.4 | 14.8 | 11 | 25.4 | 15A | Blue |
| FRFNY5.5-195 | 12-10 | 4-6 | 9.6 | 5 | 8.1 | 3.4 | 14.8 | 13 | 27.8 | 24A | Yellow |
| MPFNY5.5-195 | 12-10 | 4-6 | 7.9 | 5 | 8.1 | 3.4 | 14.2 | 13 | 27.2 | 24A | Yellow |
Related Product
Features of nylon crimp terminal
1.Smooth funnel entry to make wire insertion easier.
2.Secure contacting even after multiple reconnections.
3.Long-term contact resistance.
4.No fraying of strands.
5.No breakage of wire strands when wire is bent,under stress or in vibration environment.
