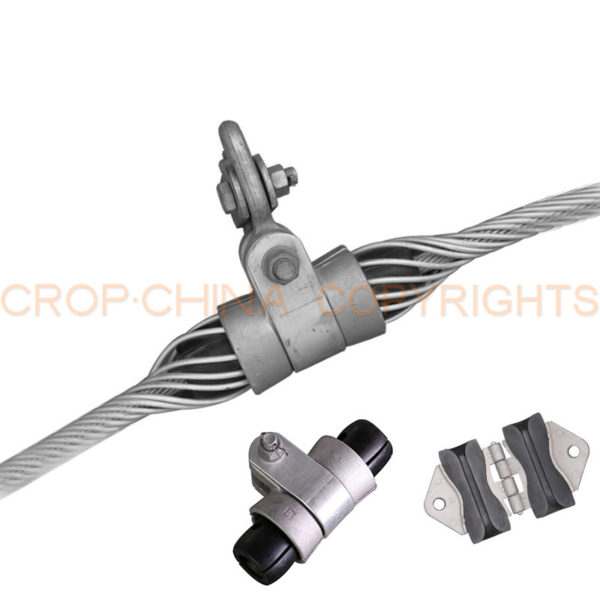

Preformed Suspension Clamp

Heliformed Suspension clamp is intended for use on aluminum based conductors,Aluminum Coated Steel Conductor and galvanize d steel st rands. It is designed to reduce the static and dynamic stresses at the support point,so that the conductor or strand is protected against the effects of oscillations. It also protects the conductor in the support against impulse and power flash-over.

Send Inquiry
Category:
Description

Description

Heliformed Suspension Clamp

Application of Armor grip suspension

1.for the reduction of static stresses at conductor suspension points and to provide greater protection to conductors against the dynamic stresses of Aeolian vibration.
2.To give conductors protection against impulse and flash-over.
3.To protect conductors against abrasion,bending and compression stresses.The protection offered by heliformed suspension clamp fittings is superior to armor-clamp combinations.
4.To install line angles up to and including 30 and through use of double units,up to 60 .
5.For proper performance and personal safety be sure to select the proper size with preformed Armor Rods and clamps according the conductors size before application.
6.Dead ends are precision devices.To insure proper performance,they should be stored in cartons under cover and handled carefully.

Safety Considerations of preformed suspension clamp
1.Armor grip suspension is intended for a single(one-time)use and for the specified application.
2.Preformed suspension clamp is intended for use by trained craftspeople only.This product sh ould not be used by anyone who is not familiar with and trained in the use of it.
3.When working in the area of energized lines with this product,extra care should be taken to prevent accidental electrical contact.

Armor grip suspension is used for hanging wire and groun wire on pole.It can not only effectively protect the wire but also greatly reduce corona discharge due to its smooth outer contour.Thus,it is particularly suitable for extra-high voltage(220KV and above)lines.Dual support gelical suspension clamp can also be used for long-distance transmission lines across the river and towers with great corner(30-60°）and is an ideal comnination of helical armor rod and suspension clamp.

①Helic armor rod: Aluminum-clad steel wire is used for ACSR with wire diameter of 7.2-12.23mm.
Aluminum alloy wire is used for ACSR with wire diameter of 12.24-56.72mm.
Aluminum-clad steel wire is used for aluminum-clad with diameter of 6.91-12.70mm.
Galvanized steel wire is used for galvanized steel conductor with wire diameter of 6.91-12.70mm.
The sizes of preformed armor rod and preformed suspension clamo are different.They can’t be used unterchangeably.
②Rubber gasket: specially formulated rubber elastic body can resist ozone erosion,as well as impact of extreme heat,cold and other harsh climate,and withstand pressure.There is an aluminum plate in the rubber elastic body.
③Metal sheath: high-strength aluminum alloy castings.
④Fixing clip: high strength aluminum alloy.
⑤/⑥/⑦Bolt/fastening washer/nuts: hot galvanizing parts.

Armor grip suspension for ACSR

Model Applicabke type of guide wire
(GB1179-83)
LGJ/LGJF		 Applicable diameter
of guide wire
(mm)		 Reference length of wire clamp(mm) Color code Vertical breaking strength(KN) Optional mating
Suspension loop
Min. Max.
CL-35/6 35/6 8.03 8.31 660 Red 66 YB-15-B
CL-50/8 50/8 9.53 9.88 660 Pink
CL-70/10 70/10 11.05 11.45 914 Blue
CL-95/15 95/15 13.49 13.78 1041 Yellow 66
CL-95/20 95/20 13.79 14.10 1118 Black
CL-120/70 120/70 14.11 14.56 1118 White
CL-120/20 120/20 14.57 15.10 1143 Brown
CL-120/25 120/25 15.42 15.74 1168 Purple
CL-150/8 150/8 15.75 16.39 1270 Red
CL-150/20 150/20 16.40 17.10 1372 Blue
CL-150/25 150/25 16.40 17.10 1372 Blue
CL-150/35 150/35 17.11 17.54 1372 Green 66
CL-185/10 185/10 17.55 18.04 1372 Yellow
CL-185/25 185/25 18.59 19 1422 White
CL-185/30 185/30 18.59 19 1422 White
CL-210/10 210/10 18.59 19 1422 White
CL-180/45 180/45 19.52 20.1 1524 Orange
CL-210/25 210/25 19.52 20.1 1524 Orange
CL-210/35 210/35 20.11 20.94 1549 Purple 89 YB-20-B
CL-210/50 210/50 20.11 20.94 1549 Purple
CL-240/30 240/30 21.48 22.09 1626 Blue
CL-240/40 240/40 21.48 22.09 1626 Blue
CL-240/55 240/55 22.10 22.59 1651 Green
CL-300/15 300/15 22.70 23.05 1651 Green
CL-300/20 300/20 23.29 23.79 1676 Black
CL-300/25 300/25 23.29 23.79 1676 Black
CL-300/40 300/40 23.80 24.45 1702 White
CL-300/50 300/50 23.80 24.45 1702 White
CL-300/70 300/70 25.08 25.54 1753 Orange
CL-400/20 400/20 26.43 27.29 2083 Blue 111 YB-25-B
CL-400/25 400/25 26.43 27.29 2083 Blue
CL-400/35 400/35 26.43 27.29 2083 Blue
CL-400/50 400/50 27.30 27.69 2083 Green
CL-400/65 400/65 27.70 28.40 2083 Yellow
CL-400/95 400/95 28.88 29.26 2083 White
CL-500/35 500/35 29.87 30.68 2083 Orange
CL-500/45 500/45 29.87 30.68 2083 Orange
CL-500/65 500/65 30.69 31.14 2235 Purple
CL-630/45 630/45 33.39 34.42 2235 Yellow
CL-630/25 630/25 34.43 35.41 2235 Black
CL-630/80 630/80 34.43 35.41 2235 Black
CL-800/55 800/55 37.53 38.51 2235 Purple
CL-800/70 800/70 38.52 39.55 2235 Red
CL-800/100 800/100 38.52 39.55 2235 Red

Preformed suspension clamp for AAAC

Model Applicabke type of guide wire
(GB1179-83)
LGJ/LGJF		 Applicable diameter
of guide wire
(mm)		 Reference length of wire clamp(mm) Color code Vertical breaking strength(KN) Optional mating
Suspension loop
Min. Max.
CL-95 95 12.24 12.69 1016 Red 66 YB-15-B
CL-120 120 14.11 14.56 1118 White
CL-150 150 15.75 16.39 1270 Red
CL-185 185 17.11 17.54 1372 Green 66
CL-210 210 18.59 19.00 1422 White
CL-240 240 19.52 20.10 1524 Orange 89 YB-20-B
CL-300 300 22.10 22.69 1651 Green
CL-400 400 25.55 25.97 2032 Purple 111 YB-25-B
CL-500 500 28.88 29.26 2083 White
CL-630 630 32 32.67 2235 Blue
CL-800 800 36.64 37.52 2235 Orange
