Description
1.Preformed dead end clamp is intended for a single (one-time) use and for the specified application.
2.Heliformed tension clamp intended for use by trained craftspeople only. dead end clamp should not be used by anyone who is not familiar with and trained in the use of it.
3.When working in the area of energized lines with this product,extra care should be taken to prevent accidental electrical contact.
4.For proper performance and personal safety be sure to select the proper size with preformed Armor Rods and clamps according the conductors size before application.
5.Tension clamp are precision devices.To insure proper performance,they should be stored in cartons under cover and handled carefully.
6.The dead end clamp are simple installation,except the need the screwdriver to seperated the conductor ends ,usually needn’t a ny other tools,just install by hand.

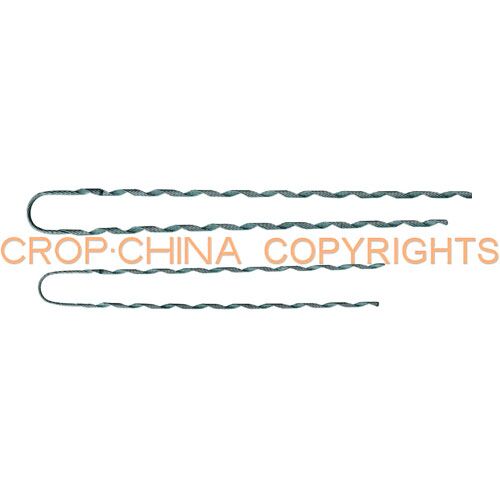

Helical earth wire tension clamp for steel conductor
| Model | Applicable type of guide wire YB/T5004-1993(mm²) |
Applicable diameter of guide wire(mm) | Reference length of wire clamp(mm) | Color code |
|---|---|---|---|---|
| NL-25/G | 25 | 6.6 | 635 | Yellow |
| NL-30/G | 30 | 6.9 | 680 | Purple |
| NL-35/G | 35 | 7.8 | 711 | Black |
| NL-45/G | 45 | 8.7 | 760 | Blue |
| NL-50/G | 50 | 9.0 | 901 | Orange |
| NL-55/G | 55 | 9.6 | 920 | Red |
| NL-60/G | 60 | 10.0 | 950 | Purple |
| NL-65/G | 65 | 10.5 | 980 | Blue |
| NL-70/G | 70 | 11.0 | 1016 | Green |
| NL-80/G | 80 | 11.4 | 1170 | Black |
| NL-90/G | 90 | 12.0 | 1180 | Red |
| NL-95/G | 95 | 12.5 | 1333 | Orange |
| NL-100/G | 100 | 13.0 | 1333 | Yellow |
| NL-120/G | 120 | 14.0 | 1460 | Yellow |
Helical earth wire tension clamp for aluminum-clad
| Model | Applicable range of wire diameter(mm) | Model of ground conductor ACSR | Reference length of wire clamp(mm) | Color code | |
|---|---|---|---|---|---|
| Min.outer diameter | Max.outer diameter | ||||
| NL-0460LB | 4.42 | 4.6 | / | 420 | Orange |
| NL-0585LB | 5.56 | 5.85 | / | 500 | Green |
| NL-0600LB | 5.86 | 6 | / | 500 | Orange |
| NL-0628LB | 6.01 | 6.28 | / | 520 | Yellow |
| NL-0656LB | 6.29 | 6.56 | / | 520 | Black |
| NL-0684LB | 6.57 | 6.84 | / | 540 | Red |
| NL-0712LB | 6.85 | 7.12 | / | 570 | Blue |
| NL-0740LB | 7.13 | 7.40 | / | 570 | Green |
| NL-0767LB | 7.41 | 7.67 | / | 580 | Yellow |
| NL-0795LB | 7.68 | 7.95 | / | 650 | Black |
| NL-0823LB | 7.96 | 8.23 | / | 650 | Red |
| NL-0854LB | 8.24 | 8.54 | / | 650 | Green |
| NL-0869LB | 8.55 | 8.69 | / | 720 | Orange |
| NL-0902LB | 8.70 | 9.02 | / | 725 | Yellow |
| NL-0925LB | 9.03 | 9.25 | / | 775 | Blue |
| NL-0963LB | 9.26 | 9.63 | / | 770 | Red |
| NL-1001LB | 9.64 | 10.01 | / | 800 | Orange |
| NL-1039LB | 10.02 | 10.39 | / | 840 | Yellow |
| NL-1082LB | 10.40 | 10.82 | / | 850 | Black |
| NL-1123LB | 10.83 | 11.23 | / | 900 | Green |
| NL-1166LB | 11.24 | 11.66 | 50/30 | 940 | Yellow |
| NL-1204LB | 11.67 | 12.04 | / | 950 | Red |
| NL-1255LB | 12.05 | 12.55 | / | 980 | Blue |
| NL-1308LB | 12.56 | 13.08 | / | 1080 | Green |
| NL-1361LB | 13.09 | 13.61 | 70/40 | 1190 | Red |
| NL-1410LB | 13.62 | 14.10 | / | 1220 | Yellow |
| NL-1448LB | 14.11 | 14.48 | / | 1250 | Blue |
| NL-1501LB | 14.49 | 15.01 | / | 1270 | Orange |
| NL-1554LB | 15.02 | 15.54 | / | 1270 | Green |
| NL-1613LB | 15.55 | 16.13 | 95/55 | 1370 | Yellow |
| NL-1679LB | 16.14 | 16.79 | / | 1420 | Black |
| NL-1742LB | 16.80 | 17.42 | / | 1500 | Blue |
| NL-1808LB | 17.43 | 18.08 | 120/7 | 1530 | Red |
| NL-1882LB | 18.09 | 18.82 | / | 1570 | Black |
| NL-1961LB | 18.83 | 19.61 | / | 1780 | Yellow |
