Ground Rod C Crimp Connector

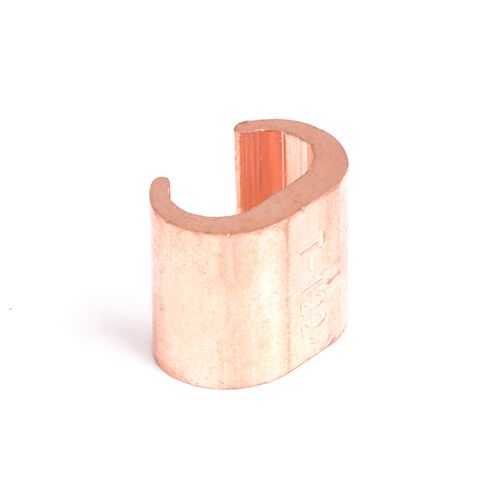

Ground rod C crimp connector also named Copper C Tap Connector.The Ground rod C crimp connector available to achieve earthing connections on copper type cable conductors with cross-section areas 10sqmm to 895sqmm. It is can be used with the ground rod on the earthing system.It is installed using appropriate ratchet, hydraulic or battery type crimping tools and associated die sets.

Copper C Tap Connector Material

99.9% pure copper

Coating: Nature or Tinned

Dimension

Parameters Table

Model	Suitable section of conductor(mm²)	A	H	L	b	C
CCT-10	7.5-14	9.5	6.2	12	1.6	4
CCT-16	14.5-16	11.8	7.8	13	2	5
CCT-20	16.5-20	12.8	9.7	13	2.9	5.4
CCT-26	21-26	14.7	10.9	16	3.2	6.5
CCT-44	27-44	19	14.4	20	4	8.5
CCT-60	45-60	21	15.1	22	4	9.7
CCT-76	61-76	24.4	17.6	22	5	10.8
CCT-98	77-98	27.8	18.8	25	5	12.8
CCT-122	99-122	29.8	21.2	26	5.5	13.5
CCT-154	123-154	34	24.4	28	6	17
CCT-190	155-190	37	25.4	35	6	17.4
CCT-240	191-240	40	28.5	40	7	19
CCT-288	141-288	44.5	31.1	45	7	22.3
CCT-365	289-365	47.5	34	50	7	24.8
CCT-450	366-450	57	41	60	10	28
CCT-560	451-560	62	45	65	11	31
CCT-700	561-700	68	49.5	70	12	34
CCT-895	630-895	72	45	66.5	12	31

battery type crimping tools and associated die sets

ELECTRIC HYDRAULIC PUMPS MANUAL

ELECTRIC HYDRAULIC PUMPS
MANUAL

THE PURPOSE AND PERFORMANCE

The pump can be used as instruments of various hydraulic pump.
The pump after be equipped with other hydraulic tools, capable oflifting, pressure-type, bend, bend row, straightening, cutting, assembly, disassembly and many other work. Reduce the labor intensity and improve work efficiency.

HOW TO USE

Open the filler before use, the electric pump and power connectionsbefore oiling, then press down the black button which next to the motor toopen, press the manual operation switch (up), after a few air pressure, press the manual operation switch (down), turn off the motor, connected to tubing. (The pressure should not exceed 63Mpa when air pressure, in order to avoid damage)
Open the motor after the pump connect with the equipment, and placedthe operation valve in pressurized position after the motor rotates 1-2minutes, this moment the hydraulic oil come into the cylinder to perform the work, and the output of the hydraulic oil will increases with the load on their own booster until 63Mpa.
The oil pump regular working temperature between 10℃~50℃,whenfind the oil temperature≥70 ℃ should stop using after continuous working under high pressure, let it self-cooling before use.
The pressure of the relief valve and safety valve have been set before thepump leave the factory, the user can not arbitrarily increase the pressure,could only reduce it according to the actual working pressure, that can improve the life of the pump station.
The motor must have reliable grounding

3.0 SPECIFICATIONS

Model	Capacity	Pressure	Flow Rate
ZCB-63A	8	2MPa	2.5L/min
ZCB-63A	8	70MPa	0.52L/min
ZCB6-5-A3	8	2MPa	2.5L/min
ZCB6-5-A3	8	70MPa	0.52L/min
ZCB6-5-AB	8	2MPa	2.5L/min
ZCB6-5-AB	8	70MPa	0.52L/min

4.0 OPERATION AND MAINTENANCE CONSIDERSTIONS

The pump use #15 hydraulic oil.
Air pressure is prohibited before oiling.
Oil storage capacity must be within the range above the oil window.
Everytime when refueling or change oil, must use 80(or more) mesh oilfilter, it’s need to wash the tank when replace, every 6 months change the oil.
Regular working temperature between 10℃~50℃.
The air nut is required to open before starting the electric pump and turnswitch to the unloading position

7.t he pump already adjustment before leave factory, can not arbitrarily increase or reduce the pressure, must use pressure gauge when need re-adjust.

Pressure tubing have 105MPA test. However, due to the aging of the hoseeasily, so users need to be inspected regularly, usually 6 months, if use frequently then 3 months, check with 87.5MPA pressure test if there have damaged, bulge,leakage, you can not use.
Bearings are generally cleaned every 6 months, add grease during assembly

5.0 TROUBLESHOOTING GUIDE

The following information is intended as an aid in determining if a problem exists

TROUBLESHOOTING
Fault	Cause	Exclusion method
Motor anomaly	Power supply fails,the switch is bad	Check the power switch
Pressure anomaly	High pressure relief valve disorders	Adjust the pressure of the high pressure relief valve to 63MPA
	Oil leak	Check and repair, replace the seals
	The vice plunger abrasion	Replace the vice plunger
Insufficient flow	Seals damaged	Replace the seals
Insufficient flow	Inappropriate choice of hydraulic oil	Use the specified oil according to the manual
