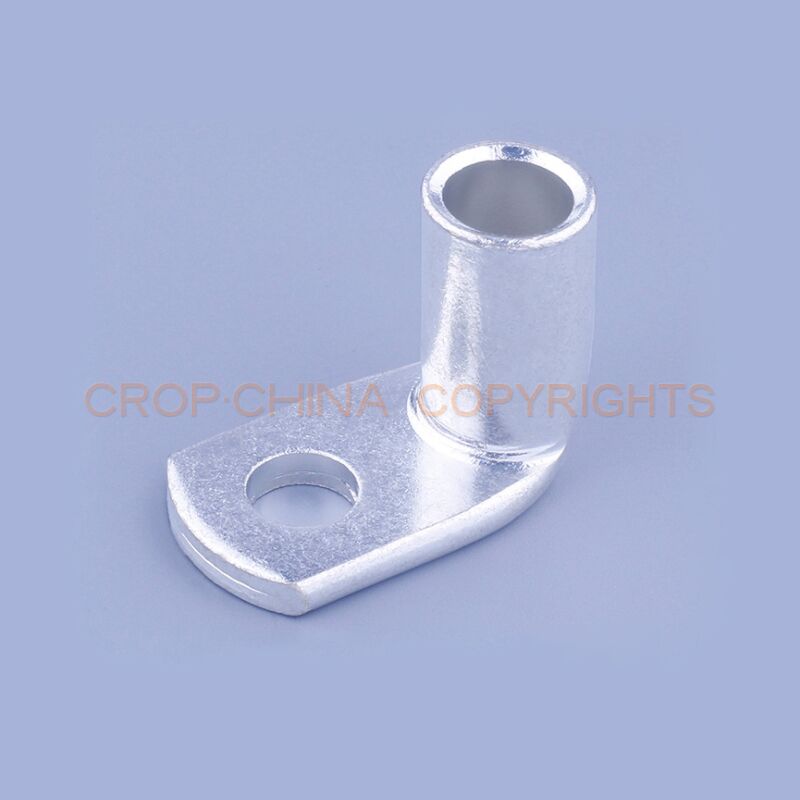

Description
Item No. | Dimension(mm) | |||||
---|---|---|---|---|---|---|
B | φD | φd | φd2 | L1 | L2 | |
GPH90-6/5 | 10 | 6.5 | 3.5 | 5.3 | 22.5 | 14 |
GPH90-6/6 | 12 | 6.4 | 24 | |||
GPH90-6/8 | 15 | 8.4 | 27.5 | |||
GPH90-6/10 | 16 | 10.5 | 29.5 | |||
GPH90-10/5 | 12 | 7 | 4.5 | 5.3 | 23 | 16 |
GPH90-10/6 | 12 | 6.4 | 24 | |||
GPH90-10/8 | 15 | 8.4 | 28 | |||
GPH90-10/10 | 18 | 10.5 | 29.5 | |||
GPH90-16/5 | 12 | 8.5 | 5.5 | 5.3 | 22.5 | 20 |
GPH90-16/6 | 14 | 6.4 | 24 | |||
GPH90-16/8 | 15 | 8.4 | 28 | |||
GPH90-16/10 | 18 | 10.5 | 31 | |||
GPH90-16/12 | 19 | 13 | 32 | |||
GPH90-25/6 | 15 | 10 | 6.9 | 6.4 | 27.5 | 21 |
GPH90-25/8 | 16 | 8.4 | 32.5 | |||
GPH90-25/10 | 18 | 10.5 | 32.5 | |||
GPH90-25/12 | 19 | 13 | 34 | |||
GPH90-35/6 | 17 | 12 | 8.5 | 6.4 | 28.5 | 24 |
GPH90-35/8 | 17 | 8.4 | 34 | |||
GPH90-35/10 | 20 | 10.5 | 34 | |||
GPH90-35/12 | 22 | 13 | 40.5 | |||
GPH90-50/6 | 20 | 14 | 10 | 6.4 | 37 | 28.5 |
GPH90-50/8 | 20 | 8.4 | 40.5 | |||
GPH90-50/10 | 20 | 10.5 | 40.5 | |||
GPH90-50/12 | 23 | 13 | 42.5 | |||
GPH90-50/16 | 28 | 17 | 50.5 | |||
GPH90-70/8 | 24 | 16.5 | 12 | 8.4 | 43 | 31 |
GPH90-70/10 | 24 | 10.5 | 43 | |||
GPH90-70/12 | 24 | 13 | 44.5 | |||
GPH90-70/16 | 28 | 17 | 53 | |||
GPH90-70/20 | 3 | 21 | 59 | |||
GPH90-95/8 | 26 | 18 | 13.5 | 8.4 | 44.5 | 35 |
GPH90-95/10 | 26 | 10.5 | 44.5 | |||
GPH90-95/12 | 26 | 13 | 46.5 | |||
GPH90-95/16 | 28 | 17 | 52 | |||
GPH90-95/20 | 30.5 | 21 | 59 | |||
GPH90-120/10 | 29 | 19.5 | 15 | 10.5 | 49 | 35.5 |
GPH90-120/12 | 29 | 13 | 49 | |||
GPH90-120/16 | 29 | 17 | 55 | |||
GPH90-120/20 | 30.5 | 21 | 61 | |||
GPH90-150/10 | 31 | 21 | 16.5 | 10.5 | 48 | 40 |
GPH90-150/12 | 31 | 13 | 51 | |||
GPH90-150/16 | 31 | 17 | 56 | |||
GPH90-150/20 | 34 | 21 | 61.5 | |||
GPH90-185/12 | 35 | 24 | 19 | 13 | 58.5 | 46 |
GPH90-185/16 | 35 | 17 | 58.5 | |||
GPH90-185/20 | 35 | 21 | 65 | |||
GPH90-240/12 | 40 | 26 | 21 | 13 | 54 | 50 |
GPH90-240/16 | 40 | 17 | 60 | |||
GPH90-240/20 | 40 | 21 | 67.8 | |||
GPH90-300/12 | 43 | 29.5 | 23.5 | 13 | 74.5 | 59 |
GPH90-300/16 | 43 | 17 | 64 | |||
GPH90-300/20 | 43 | 21 | 70.5 | |||
GPH90-400/12 | 49 | 34 | 27 | 13 | 79 | 62 |
GPH90-400/16 | 49 | 17 | 68.5 | |||
GPH90-400/20 | 49 | 21 | 75 |
