Description

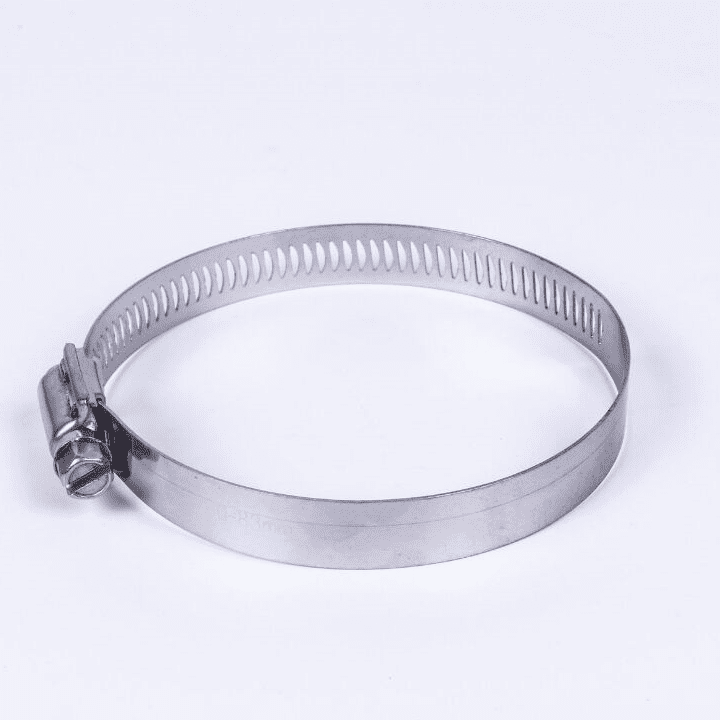

Description of hose clamp
Hose clamp german type is a kind of hose clamp. It is also named pipe clip,German type hose clamp is made of stainless steel.Pipe clip mainly used to fix hoses or pipes.stainless steel pipe clip has no-slip and shock absorbtion properied.
| Range | Band width | Package PCS/bag |
Material | |
|---|---|---|---|---|
| Inch | MM | |||
| 0.31-0.47 | 8-12 | 9mm | 100 | W1: Band,housing & screw,all zinc-plated W2: Band,housing with all stainless steel 300 or 430,zinc-plated screw W4: Band,housing & screw with all stainless steel 300 W5: Band,housing & screw with all stainless steel 316 |
| 0.39-0.63 | 10-16 | 100 | ||
| 0.47-0.87 | 12-22 | 100 | ||
| 0.75-1.14 | 19-29 | 100 | ||
| 0.91-1.38 | 23-35 | 50 | ||
| 1.18-1.77 | 30-45 | 50 | ||
| 1.26-1.97 | 32-50 | 50 | ||
| 1.57-2.36 | 40-60 | 50 | ||
| 1.97-2.76 | 50-70 | 20 | ||
| 2.36-3.15 | 60-80 | 20 | ||
| 2.76-3.54 | 70-90 | 20 | ||
| 3.15-3.94 | 80-100 | 10 | ||
| 3.54-4.33 | 90-110 | 10 | ||
| 3.93-4.72 | 100-120 | 10 | ||
| 4.33-5.12 | 110-130 | 10 | ||
| 4.72-5.51 | 120-140 | 10 | ||
| 5.12-5.91 | 130-150 | 10 | ||
| 5.52-6.30 | 140-160 | 10 | ||
| 0.63-1.06 | 16-27 | 12mm | 100 | |
| 0.79-1.26 | 20-32 | 50 | ||
| 0.98-1.57 | 25-40 | 50 | ||
| 1.26-1.97 | 32-50 | 50 | ||
| 1.57-2.36 | 40-60 | 50 | ||
| 1.97-2.76 | 50-70 | 10 | ||
| 2.36-3.15 | 60-80 | 10 | ||
| 2.76-3.54 | 70-90 | 10 | ||
| 3.15-3.94 | 80-100 | 10 | ||
| 3.54-4.33 | 90-110 | 10 | ||
| 3.94-4.72 | 100-120 | 10 | ||
| 4.33-5.12 | 110-130 | 10 | ||
| 4.72-5.52 | 120-140 | 10 | ||
| 5.12-5.91 | 130-150 | 10 | ||
| 5.52-6.30 | 140-160 | 10 | ||
| 5.91-6.69 | 150-170 | 10 | ||
| 6.30-7.09 | 160-180 | 10 | ||
| 6.69-7.48 | 170-190 | 10 | ||
| 7.09-7.87 | 180-200 | 10 | ||
