Description

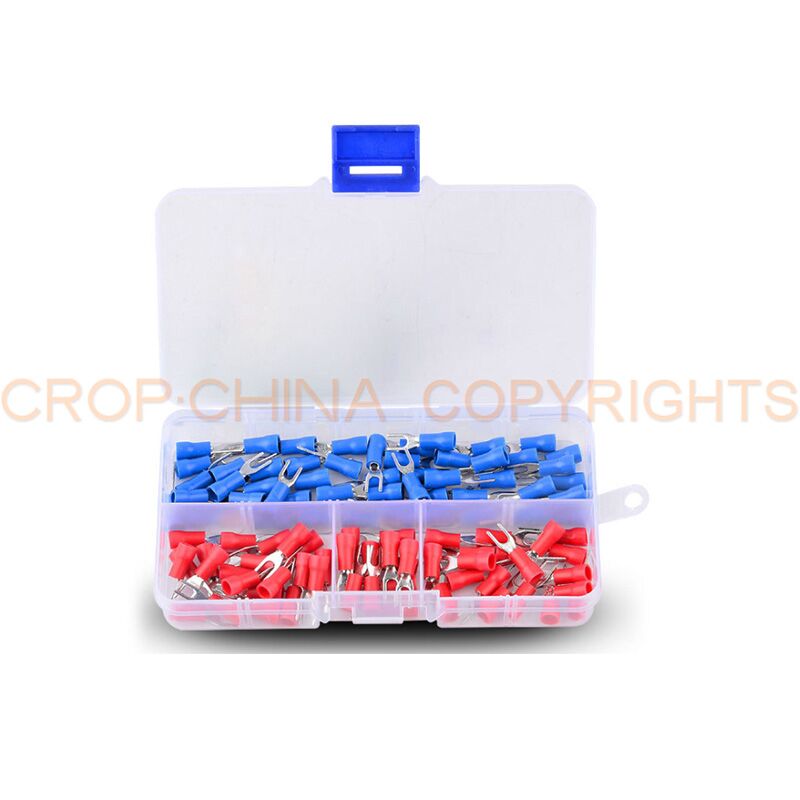

Description of fork spade crimp terminal
Fork spade crimp terminal are also named quick splice terminals or crimp terminal connectors.quick splice terminals are used to terminate stranded wires,creating a quality,reliable connection by ensuring each wire strand conducts current when properly crimped.Fork spade crimp terminal especially useful when multiple reconnections could be necessary within terminal blocks or other similar devices. No breakage of wire strands when wire is bent, under stress or in a vibration environment.Splice terminals designs allow two individual stranded conductors to be connected to the same termination,most beneficial in jumpering or other similar applications.
Material of crimp terminal
Tin plated copper,PVC

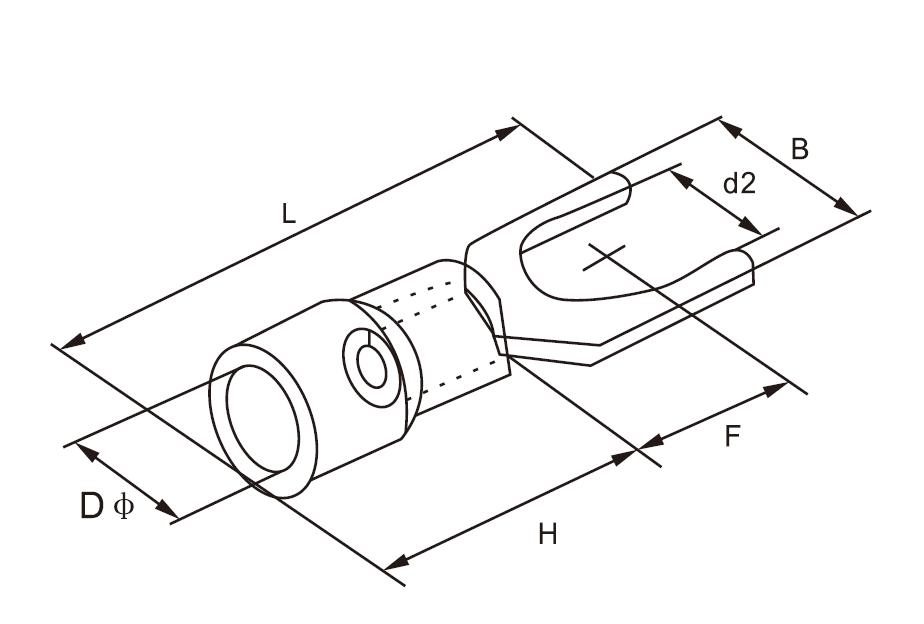

| Item No. | Bolt No. | Dia.of Bolt | Dimension(mm) | Color | Specification | ||||
|---|---|---|---|---|---|---|---|---|---|
| d2(mm) | B | D | F | H | L | ||||
| SV 1.25-3 | #4 | 3.2 | 5.7 | 4.3 | 6.5 | 10 | 21.2 | Red | Conductor section: 0.5-1.5mm2 A.W.G.: 22-16 Max. Current: I Max.=19A Thickness: 0.7mm |
| SV 1.25-3.5S | #6 | 3.7 | 5.7 | 6.5 | 21.2 | ||||
| SV 1.25-3.5L | #6 | 3.7 | 6.4 | 6.5 | 21.2 | ||||
| SV 1.25-4S | #8 | 4.3 | 6.4 | 6.5 | 21.2 | ||||
| SV 1.25-4M | #8 | 4.3 | 7.2 | 6.5 | 21.2 | ||||
| SV 1.25-4L | #8 | 4.3 | 8.1 | 6.5 | 21.2 | ||||
| SV 1.25-5S | #10 | 5.3 | 8.1 | 6.5 | 21.2 | ||||
| SV 1.25-5L | #10 | 5.3 | 9.5 | 6.5 | 21.2 | ||||
| SV 1.25-6S | 1/4 | 6.5 | 9.5 | 6.5 | 21.2 | ||||
| SV 1.25-6L | 1/4 | 6.5 | 12.0 | 11.0 | 27.2 | ||||
| SV 1.25-8 | 5/16 | 8.5 | 14.0 | 12.5 | 29.0 | ||||
| SV 2-3 | #4 | 3.2 | 5.7 | 4.9 | 6.5 | 10 | 21.2 | Blue | Conductor section:1.5-2.5mm2 A.W.G.: 16-14 Max. Current: I Max.=27A Thickness: 0.8mm |
| SV 2-3.5S | #6 | 3.7 | 5.7 | 6.5 | 21.2 | ||||
| SV 2-3.5L | #6 | 3.7 | 6.4 | 6.5 | 21.2 | ||||
| SV 2-4S | #8 | 4.3 | 6.4 | 6.5 | 21.2 | ||||
| SV 2-4M | #8 | 4.3 | 7.2 | 6.5 | 21.2 | ||||
| SV 2-4L | #8 | 4.3 | 8.1 | 6.5 | 21.2 | ||||
| SV 2-5S | #10 | 5.3 | 8.1 | 6.5 | 21.2 | ||||
| SV 2-5L | #10 | 5.3 | 9.5 | 6.5 | 21.2 | ||||
| SV 2-6S | 1/4 | 6.5 | 9.5 | 6.5 | 21.2 | ||||
| SV 2-6L | 1/4 | 6.5 | 12.0 | 11.0 | 27.2 | ||||
| SV 2-8 | 5/16 | 8.5 | 14.0 | 12.5 | 29.0 | ||||
| SV 3.5-3.5 | #4 | 3.7 | 5.7 | 6.2 | 7.0 | 12.5 | 24.8 | Black | Conductor section:2.5-4mm2 A.W.G.: 14-12 Max. Current: I Max.=37A Thickness: 1.0mm |
| SV 3.5-4 | #8 | 4.3 | 8.0 | 7.0 | 24.8 | ||||
| SV 3.5-5S | #10 | 5.3 | 8.0 | 7.0 | 24.8 | ||||
| SV 3.5-6L | 1/4 | 6.5 | 12.0 | 12.1 | 28.0 | ||||
| SV 3.5-6S | 1/4 | 6.5 | 9.0 | 7.5 | 25.2 | ||||
| SV 5.5-3.5 | #6 | 3.7 | 8.3 | 6.7 | 7.5 | 12.5 | 25.2 | Yellow | Conductor section:4-6mm2 A.W.G.: 12-10 Max. Current: I Max.=48A Thickness: 1.0mm |
| SV 5.5-4S | #8 | 4.3 | 8.3 | 7.5 | 25.2 | ||||
| SV 5.5-4L | #8 | 4.3 | 9.0 | 7.5 | 25.2 | ||||
| SV 5.5-5 | #10 | 5.3 | 9.0 | 7.5 | 25.2 | ||||
| SV 5.5-6S | 1/4 | 6.5 | 9.0 | 7.5 | 25.2 | ||||
| SV 5.5-6L | 1/4 | 6.5 | 12.0 | 12.0 | 31.2 | ||||
| SV 5.5-8 | 5/16 | 8.5 | 14.0 | 11.5 | 30.0 | ||||
Related Product
Features of quick splice terminals
1.Smooth funnel entry to make wire insertion easier.
2.Secure contacting even after multiple reconnections.
3.Long-term contact resistance.
4.No fraying of strands.
5.No breakage of wire strands when wire is bent,under stress or in vibration environment.
