Description

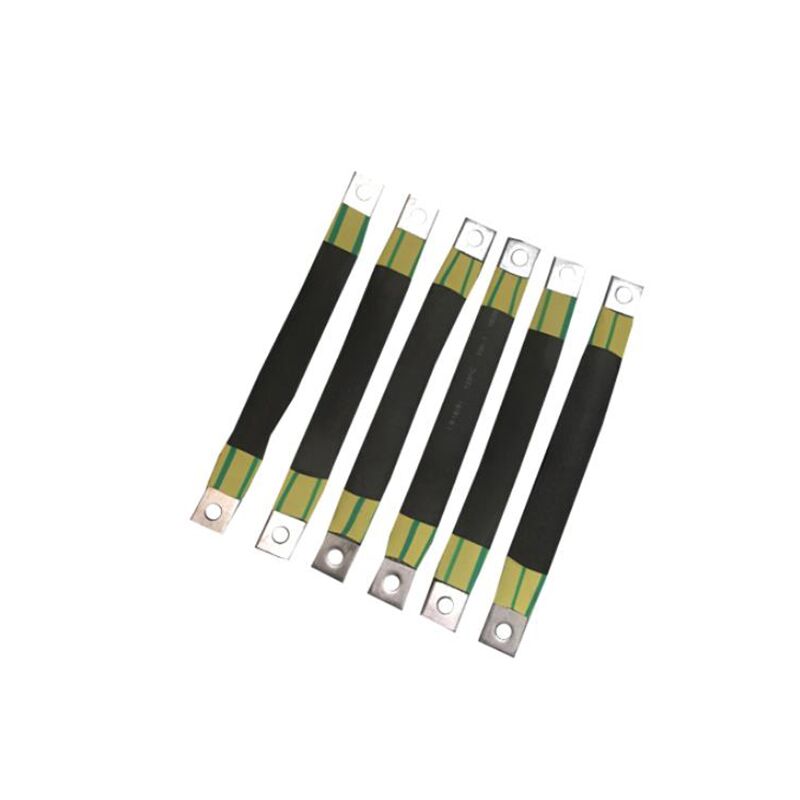

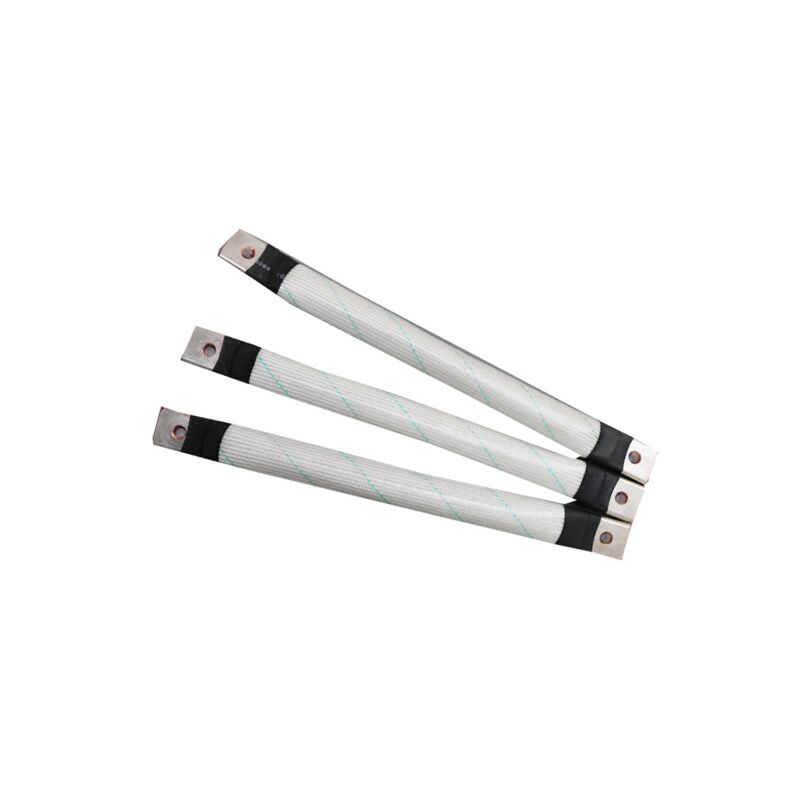

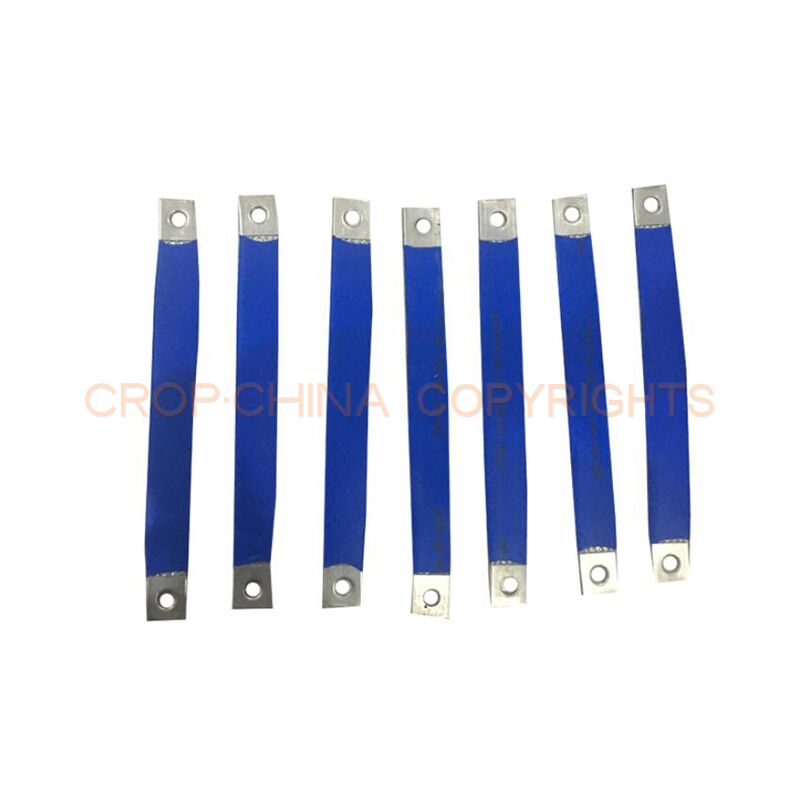

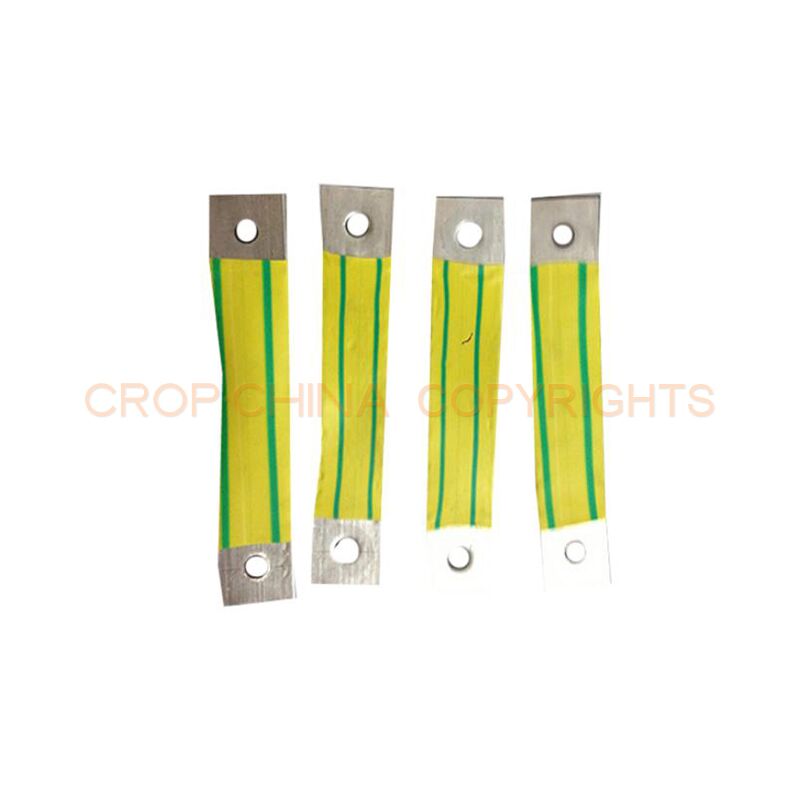

Description of flexible PVC braided copper tapes
Flexible PVC braided copper tapes manufactured by flexible PVC-extruded.The crimping process is realized without using additives like tin or soldering and welding additives.
We use exclusively materials of same analysis and same conductivity.
Caused by the technical characteristics of the insulating material, the flexibility of the braids the connectors offer multifarious applications inside switch gearsor control panel devices as well as earthing connections.
Material: It is made out of seamless Cu-ETP-tubes.
Application:
The braided copper tape is suitable for the flexible connected wires of electrical equipment, electrical switch, electrical furnace, battery, etc.
Also can be as shielding sleeve for wire harness etc.
Customiaztion available for special dimension,shapes and structure.We can according to your drawing customized.
| Cross-section (mm²) | Current-load | Dimension (mm) | |||
|---|---|---|---|---|---|
| B1 | B2 | d | L | ||
| 10 | 75-105A | 12 | 12 | 5.5 | According to customer requirement |
| 16 | 100-150A | 15 | 15 | 6.5 | |
| 25 | 145-210A | 20 | 20 | 9 | |
| 25 | 145-210A | 25 | 25 | 9 | |
| 35 | 170-250A | 20 | 20 | 9 | |
| 35 | 170-250A | 25 | 25 | 9 | |
| 50 | 205-300A | 25 | 25 | 11 | |
| 50 | 215-310A | 30 | 30 | 9 | |
| 70 | 245-355A | 25 | 25 | 11 | |
| 70 | 245-355A | 30 | 30 | 11 | |
| 70 | 270-390A | 35 | 35 | 14 | |
| 70 | 270-390A | 40 | 40 | 11 | |
| 100 | 325-470A | 35 | 35 | 14 | |
| 100 | 325-470A | 40 | 40 | 14 | |
| 120 | 375-540A | 40 | 40 | 14 | |
| 140 | 405-580A | 40 | 40 | 14 | |
| 210 | 505-730A | 40 | 40 | 14 | |
| 210 | 505-730A | 50 | 50 | 14 | |
