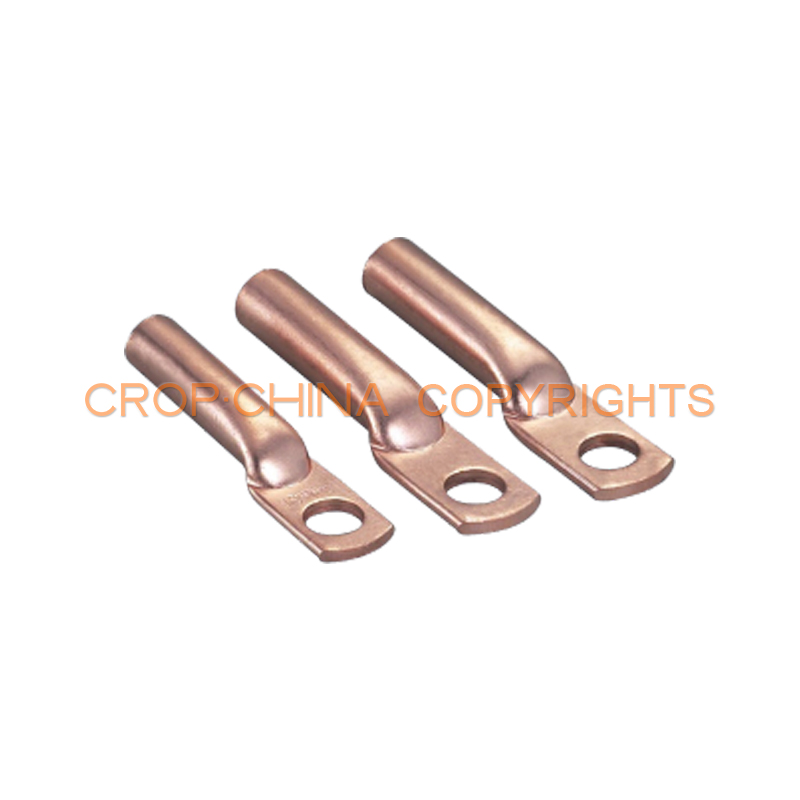

CABLE LUG (DTG)
Description
Connecting terminals are suitable for the wire in distribution equipment and the electrical equipment. DL series are made by L3 aluminum bar. DT series are made of by T2 copper bar.

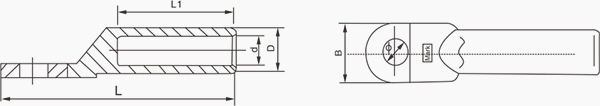

| Model | Ø | D(mm) | d(mm) | A(mm) | L3(mm) | L(mm) | L1(mm) |
| DTG-16 | Ø8.2 | 9 | 6 | 128 | 25 | 80 | 29 |
| DTG-25 | Ø8.2 | 10 | 7 | 14.1 | 25 | 85 | 32 |
| DTG-35 | Ø8.2 | 11 | 8 | 15.4 | 25 | 90 | 33 |
| DTG-50 | Ø8.2 | 13 | 10 | 18.8 | 25 | 99 | 37 |
| DTG-70 | Ø12.5 | 16 | 12 | 22.5 | 35 | 120 | 43 |
| DTG-95 | Ø12.5 | 18 | 14 | 26 | 35 | 125 | 45 |
| DTG-120 | Ø14.5 | 20 | 15.2 | 29 | 35 | 134 | 50 |
| DTG-150 | Ø14.5 | 22 | 17 | 31.7 | 35 | 139 | 52 |
| DTG-185 | Ø14.5 | 24 | 19 | 34.4 | 35 | 150 | 60 |
| DTG-240 | Ø16.5 | 26 | 21 | 37.7 | 45 | 160 | 70 |
| DTG-300 | Ø16.5 | 30 | 24 | 43.4 | 45 | 164 | 75 |
| DTG-400 | Ø16.5 | 4 | 27 | 49 | 60 | 180 | 80 |
| DTG-500 | Ø20.5 | 38 | 30 | 55.5 | 60 | 225 | 90 |
| DTG-630 | Ø20.5 | 45 | 35 | 64.7 | 60 | 235 | 105 |
