Double Arming Bolt HDAB Series

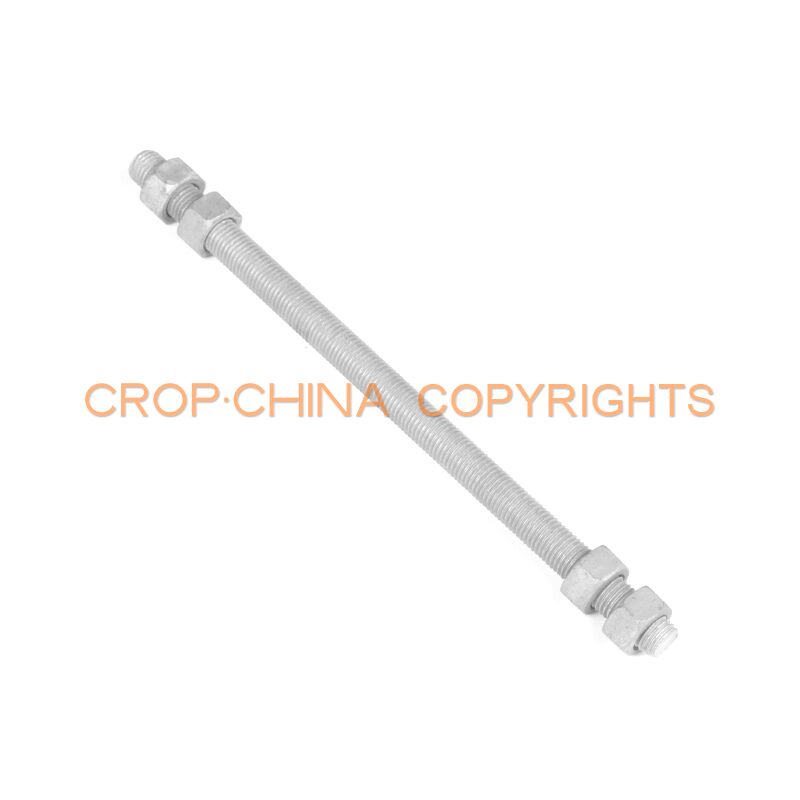

BOLTS, DOUBLE-ARMING FULL THREAD Bolts permit replacement ease in double arms and offer added flexibility of use. Cone type point for easy starting and driving-out without damage to threads. Each bolt provided with four hexagonal nuts. Hot dip galvanized steel. Standard: ASTM A-153, BS 729, ISO1461.

Send Inquiry
Categories: ,
Description

Description

DOUBLE ARMING BOLT
Description
Produced in Steel Q235, hot dip galvanized according to ASTM A-153, BS 729, ISO1461.
Furnished with 4 hexagonal nut.

Type Dimensions in inches and millimeters
D L
HDAB01 1/2″(12) 10″(250)
HDAB02 1/2″(12) 12″(300)
HDAB03 1/2″(12) 14″(350)
HDAB04 1/2″(12) 16″(400)
HDAB05 5/8″(16) 10″(250)
HDAB06 5/8″(16) 12″(300)
HDAB07 5/8″(16) 14″(350)
HDAB08 5/8″(16) 16″(400)
HDAB09 5/8″(16) 18″(450)
HDAB10 5/8″(16) 20″(500)
HDAB11 5/8″(16) 22″(550)
HDAB12 5/8″(16) 24″(600)
HDAB13 5/8″(16) 26″(650)
HDAB14 5/8″(16) 28″(700)
HDAB15 5/8″(16) 30″(750)
HDAB16 5/8″(16) 32″(800)
HDAB17 3/4″(20) 12″(300)
HDAB18 3/4″(20) 14″(350)
HDAB19 3/4″(20) 16″(400)
HDAB20 3/4″(20) 10″(250)
HDAB21 3/4″(20) 12″(300)
HDAB22 3/4″(20) 14″(350)
HDAB23 3/4″(20) 16″(400)
HDAB24 3/4″(20) 18″(450)
HDAB25 3/4″(20) 20″(500)
HDAB26 3/4″(20) 22″(550)
HDAB27 3/4″(20) 24″(600)
HDAB28 3/4″(20) 26″(650)
HDAB29 3/4″(20) 28″(700)
HDAB30 3/4″(20) 30″(750)

*Note: this bolt has Chamfering type, if you need this type, pls explain when you place an order.
