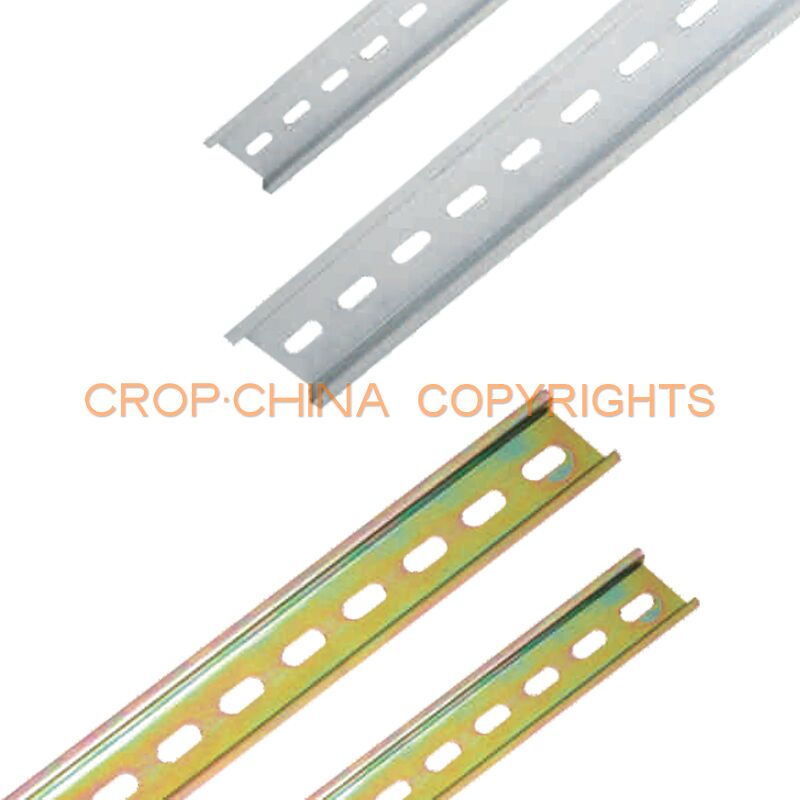

DIN rails have been accepted all over the world, so that equipment or panel manufacturers can install multiple control components, devices, terminal blocks, power supplies, etc. on the same rail. Using DIN Rails can enhance design capabilities, save space and reduce labor.
The standard guide rail is made of ordinary steel with electro-galvanized and passivation layer, and has a variety of configurations. Aluminum and stainless steel rails are also available, but only 35 mm in size and 7.5 mm deep.
Standard DIN rails are available in 35mm (deep 7.5 and 15mm deep), 32mm and 15mm widths, and are available in 1 m (3’3″) and 2 m (6’6″) lengths. It can be cut into customized lengths and punched with customized holes or perforations according to requirements.
Material
*Perforated or unperforated
*Standard steel DIN rails are steel with electro-galvanized and passivated
*Aluminum DIN rails is made of aluminum
*Stainless DIN rails are made of AISI 304 stainless steel
| Type | Width (mm) |
Height (mm) |
Thickness (mm) |
Length (M) |
Hole size (mm) |
Material |
| CR-701 | 35 | 7.5 | 1 | 1 or 2 | φ5.2×15 | Steel |
| φ6.2×15 |
| Type | Width (mm) |
Height (mm) |
Thickness (mm) |
Length (M) |
Hole size (mm) |
Material |
| CR-702 | 35 | 6.5 | 1 | 1 or 2 | φ5.2×15 | Steel |
| φ6.2×15 |
| Type | Width (mm) |
Height (mm) |
Thickness (mm) |
Length (M) |
Hole size (mm) |
Material |
| CR-703 | 35 | 15 | 1.5 | 1 or 2 | φ5.2×15 | Steel |
| φ6.2×15 |
| Type | Width (mm) |
Height (mm) |
Thickness (mm) |
Length (M) |
Hole size (mm) |
Material |
| CR-704 | 15 | 5.5 | 1 | 1 or 2 | φ4.2×12.2 | Steel |
| Type | Width (mm) |
Height (mm) |
Thickness (mm) |
Length (M) |
Hole size (mm) |
Material |
| CR-705 | 32 | 15 | 1.2 | 1 or 2 | φ6.2×15 | Steel |
| Type | Width (mm) |
Height (mm) |
Thickness (mm) |
Length (M) |
Hole size (mm) |
Material |
| CR-706 | 35 | 7.5 | 1 | 1 or 2 | φ4.8×25 | Aluminum |
| Type | Width (mm) |
Height (mm) |
Thickness (mm) |
Length (M) |
Hole size (mm) |
Material |
| CR-707 | 35 | 7.5 | 1.5 | 1 or 2 | φ5.2×15 | Aluminum |
| Type | Width (mm) |
Height (mm) |
Thickness (mm) |
Length (M) |
Hole size (mm) |
Material |
| CR-708 | 32 | 15 | 1.5 | 1 or 2 | φ6.2×15 | Aluminum |
| Type | Width (mm) |
Height (mm) |
Thickness (mm) |
Length (M) |
Hole size (mm) |
Material |
| CR-709 | 25 | 10 | 1.1 | 1 or 2 | φ4.8×25 | Aluminum |
