Aluminium contact teeth piercing connector CRS-7 used for aluminium conductor

Insulation Piercing Connector PCT13C  Function: Tap a small wire off of a large wire A convenient and fast way to safely and securely tap off of an existing line. You can tap off of the middle a line that is from #6 gauge wire to 4/0 cable to feed a 14 AWG to #10 awg wire. You do not have to cut or interrupt the main line. Install with the power shut off to the main line. Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.

Send Inquiry
描述

描述

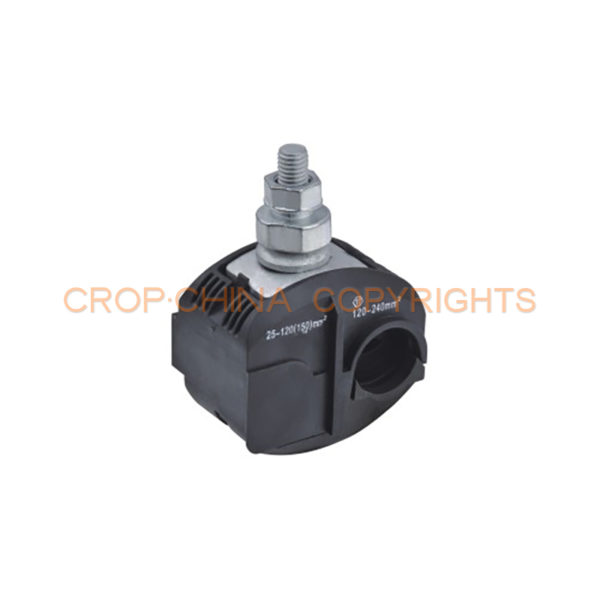

Aluminium contact teeth piercing connector CRS-7

Aluminium contact teeth piercing connector CRS-7 are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores. When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed(fuse nut). Stripping of insulation is avoided.
Service condition: <1kV, 50/60Hz, -10°C to 55°C
Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.

●Body is moulded from tough, resilient, glass filled nylon for long service life exposed to weather (particularly sunlight) and is rounded to prevent damage to adjacent conductors.

●Aluminium contact teeth cut through insulation without splitting and ensure proper penetration into the conductor and Electrical continuity without sacrificing the mechanical strength of the conductor

●Aluminium teeth ensure compatibility with aluminium conductor and will not deteriorate due to stress corrosion

●Rubber seals and grease prevent moisture entering the cable for long term performance

●End caps provided are used to seal the end of the branch core

●Suitable for Aluminium conductor

INSULATION PIERCING CONNECTOR for Main to 240

Remarks: ISO mean insulated conductor, BARE mean bare conductor.



Models CRS-7 CRS-7-1
Main Line(mm²)  120-240 150-240
Service Line (mm²) 25-120 10-25
Bolt No. 1 1
Norminal Current(A) 211 102
Remarks ISO to ISO ISO to ISO

Related Product

Insulation Piercing Connector


Features
• Tested for watertightness at a voltage of 6 kV for 30 min in a water bath
• Potential free tightening bolts allow safe installations on life lines
• Bimetallic, suitable for aluminium and copper conductors
• Long neck 13 mm shear head nut ensuring reliable installations
• Components not isolated, end cap attached to body
• Insulation material made of weather and UV resistant glass fibre reinforced polymer

Installing
