Description of Insulated crimp blade terminals

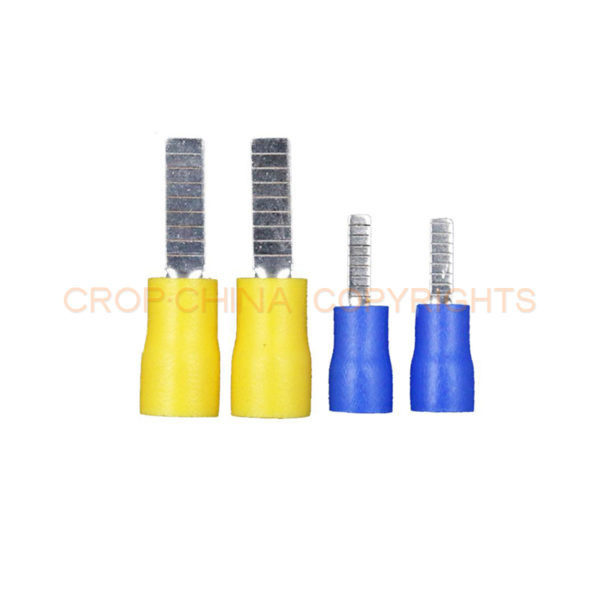

Insulated crimp blade terminals are also named blade terminals or bootlace ferrule.Crimp blade terminals are used to terminate stranded wires,creating a quality,reliable connection by ensuring each wire strand conducts current when properly crimped.Especially useful when multiple reconnections could be necessary within terminal blocks or other similar devices. No breakage of wire strands when wire is bent,under stress or in a vibration environment. blade terminals designs allow two individual stranded conductors to be connected to the same termination,most beneficial in jumpering or other similar applications.
Material of crimp blade terminals
Tin plated copper,PVC
| Item No. | Dimension(mm) | Color | Specification | ||||
|---|---|---|---|---|---|---|---|
| B | D | F | H | L | |||
| DBV 1.25-10 | 2.3 | 4.3 | 10 | 10 | 20 | Red | Conductor section:0.5-1.5mm2 A.W.G.: 22-16 Max Current:I max.=19A Thickness: 0.7mm |
| DBV 1.25-11 | 3 | 11 | 21 | ||||
| DBV 1.25-14 | 3 | 14 | 24 | ||||
| DBV 1.25-18 | 2.2 | 18 | 28 | ||||
| DBV 2-9 | 2.4 | 4.9 | 9 | 10 | 19 | Blue | Conductor section:1.5-2.5mm2 A.W.G.: 16-14 Max Current:I max.=27A Thickness: 0.8mm |
| DBV 2-14S | 2.4 | 14 | 24 | ||||
| DBV 2-14L | 3 | 14 | 24 | ||||
| DBV 2-18 | 2.2 | 18 | 28 | ||||
| DBV 5.5-10 | 2.8 | 7.2 | 10 | 13 | 22.5 | Yellow | Conductor section:4-6mm2 A.W.G.: 12-10 Max Current:I max.=48A Thickness: 1.0mm |
| DBV 5.5-14 | 4.5 | 14 | 26.5 | ||||
| DBV 5.5-18 | 4.5 | 18 | 30.5 | ||||
| DBV 8-14 | 6 | 5.6 | 14 | 15 | 30.5 | Red | |
Related Product
Features of bootlace ferrule
1.Smooth funnel entry to make wire insertion easier.
2.Secure contacting even after multiple reconnections.
3.Long-term contact resistance.
4.No fraying of strands.
5.No breakage of wire strands when wire is bent,under stress or in vibration environment.
