Copper Ground Strap

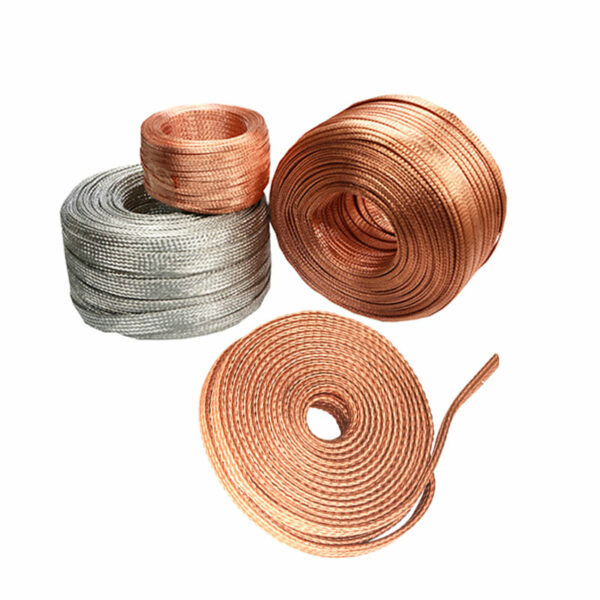

Copper ground strap also named copper braided strip,it is used as earthing straps and are also used in electrical components,earthing and electrical bonding applications.The lower current ratings are made from smaller diameter copper wire which improves flexibility.All our copper braids are comply with ROHS.It can be use alone,or can be used with cable terminal.
Material of Copper braided strip
CROP copper sleeve is made of Copper or tinned copper
| Cross-section (mm²) | structure | outer dimension | calculating weight （kg/km) | ||
|---|---|---|---|---|---|
| standard Cross-section (mm²) | calculating Cross-section (mm²) | layers*No.of strands*No.of wires/singlewire diameter (mm) | width(mm) | thickness(mm) | |
| 2 | 2.12 | 24X5X1/0.15 | 5 | 0.6 | 21 |
| 2.5 | 2.54 | 24X6X1/0.15 | 6 | 0.7 | 25.4 |
| 4 | 4.24 | 24X10X1/0.15 | 8 | 0.8 | 42 |
| 4 | 3.81 | 36X6X1/0.15 | 10 | 0.7 | 38 |
| 6 | 6.36 | 36X10X1/0.15 | 12 | 0.8 | 63 |
| 8 | 8.48 | 48X10X1/0.15 | 13 | 0.8 | 85 |
| 10 | 10.17 | 48X12X1/0.15 | 15 | 1 | 102 |
| 10 | 10.6 | 40X15X1/0.15 | 15 | 1.2 | 106 |
| 12 | 12.72 | 48X15X1/0.15 | 20 | 1.2 | 127 |
| 16 | 16.96 | 48X20X1/0.15 | 22 | 1.3 | 170 |
| 20 | 21.2 | 48X25X1/0.15 | 25 | 1.4 | 212 |
| 25 | 25.43 | 48X30X1/0.15 | 30 | 1.5 | 254 |
| 25 | 25.43 | 48X15X2/0.15 | 20 | 2.5 | 254 |
| 35 | 33.93 | 64X30X1/0.15 | 40 | 1.5 | 340 |
| 35 | 33.93 | 48X20X2/0.15 | 25 | 2.6 | 340 |
| 50 | 50.87 | 64X45X1/0.15 | 50 | 1.8 | 510 |
| 50 | 50.87 | 48X30X2/0.15 | 30 | 3 | 510 |
| 50 | 50.87 | 48X20X3/0.15 | 25 | 4 | 510 |
| 70 | 70.66 | 80X50X1/0.15 | 70 | 2 | 706 |
| 70 | 67.83 | 64X30X2/0.15 | 40 | 3 | 680 |
| 75 | 76.34 | 48X30X3/0.15 | 32 | 4.5 | 763 |
| 100 | 101.72 | 96X60X1/0.15 | 100 | 2 | 1017 |
| 100 | 101.72 | 64X45X2/0.15 | 52 | 4 | 1017 |
| 100 | 101.72 | 48X30X4/0.15 | 35 | 6 | 1017 |
| 120 | 118.68 | 96X70X1/0.15 | 120 | 2.5 | 1190 |
| 120 | 122.92 | 48X30X4+48x25x1/0.15 | 37 | 8 | 1230 |
Customiaztion available for special dimension,shapes and structure.We can according to your drawing customized.Discount are available for longer length and other size and finished can be made to order.
