Description
Copper C – tap press-on Connector
Copper C – tap press-on Connector also named Copper C Crimp Connector.It is used for making tap or parallel copper connections. “C” shape reduces install time and heavy wall construction prevents relaxing of the joint after installation.
Material of Copper C – tap press-on Connector
The copper c crimp connector is made of high quality pure copper,Copper material has high corrosion resistance and high tensile strength.

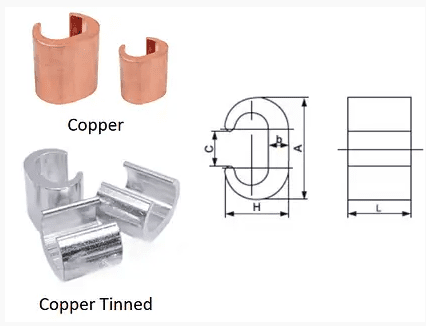

Dimension of copper c crimp connector
The C Crimp Connectors have two types,one is copper,the other is copper tinned.The copper type can be connecting copper cable.The copper tinned type can be connect the copper conductor and aluminum conductor.
Parameters Table
| Model | Suitable section of conductor(mm²) | A | H | L | b | C |
|---|---|---|---|---|---|---|
| CCT-10 | 7.5-14 | 9.5 | 6.2 | 12 | 1.6 | 4 |
| CCT-16 | 14.5-16 | 11.8 | 7.8 | 13 | 2 | 5 |
| CCT-20 | 16.5-20 | 12.8 | 9.7 | 13 | 2.9 | 5.4 |
| CCT-26 | 21-26 | 14.7 | 10.9 | 16 | 3.2 | 6.5 |
| CCT-44 | 27-44 | 19 | 14.4 | 20 | 4 | 8.5 |
| CCT-60 | 45-60 | 21 | 15.1 | 22 | 4 | 9.7 |
| CCT-76 | 61-76 | 24.4 | 17.6 | 22 | 5 | 10.8 |
| CCT-98 | 77-98 | 27.8 | 18.8 | 25 | 5 | 12.8 |
| CCT-122 | 99-122 | 29.8 | 21.2 | 26 | 5.5 | 13.5 |
| CCT-154 | 123-154 | 34 | 24.4 | 28 | 6 | 17 |
| CCT-190 | 155-190 | 37 | 25.4 | 35 | 6 | 17.4 |
| CCT-240 | 191-240 | 40 | 28.5 | 40 | 7 | 19 |
| CCT-288 | 141-288 | 44.5 | 31.1 | 45 | 7 | 22.3 |
| CCT-365 | 289-365 | 47.5 | 34 | 50 | 7 | 24.8 |
| CCT-450 | 366-450 | 57 | 41 | 60 | 10 | 28 |
| CCT-560 | 451-560 | 62 | 45 | 65 | 11 | 31 |
| CCT-700 | 561-700 | 68 | 49.5 | 70 | 12 | 34 |
| CCT-895 | 630-895 | 72 | 45 | 66.5 | 12 | 31 |
Battery type crimping tools and associated die sets
CROP can also supply the Battery type crimping tools and associated die sets.So it will be convenient for you to purchase, you can buy all cable C Crimp and tools in one place. We will be your most professional supplier.
Copper Extruded ‘C’
Related Product of Copper Compression Connector
If you have interested Copper C – tap press-on Connector,please feel free contact us.
