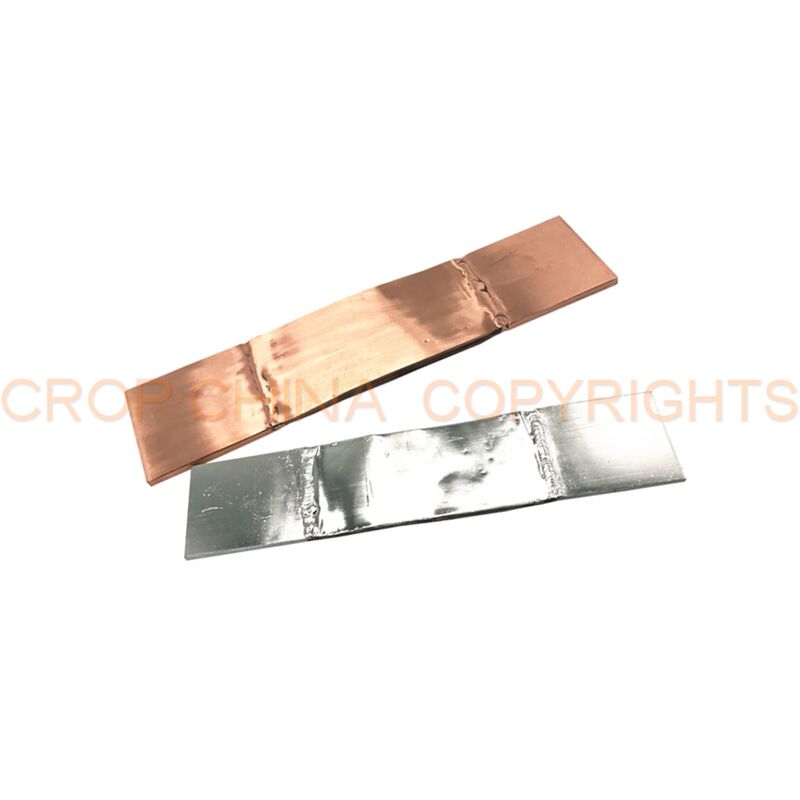

Description of laminated flexible copper connectors
Laminated flexible copper connectors consists of C 11000 copper foils,the both ends of which are press-welded together.It can be tinned coating or silver plate.The length of the contact surface can be designed according to the installation requirements.
Standard design has no drilling requirements, you can drill holes on the contact surface according to the drawings.
Insulation material: standard design without insulation material, it can use PVC insulation sleeve heat shrink fixed.
Application:
Thecopper laminated flexible connectors is suitable for the flexible connected wires of electrical equipment, electrical switch, electrical furnace, battery, etc.Also can be as shielding sleeve for wire harness etc.
Most of the laminated copper foil connectors are customized according to the drawing.
| Type | Length mm |
Width mm |
Thickness mm |
|---|---|---|---|
| CST4x40 | 290 | 40 | 4 |
| CST5x50 | 290 | 50 | 5 |
| CST6x60 | 340 | 60 | 6 |
| CST6x80 | 380 | 80 | 6 |
| CST8x80 | 380 | 80 | 8 |
| CST10x80 | 380 | 80 | 10 |
| CST10x100 | 450 | 100 | 10 |
| CST10x120 | 500 | 120 | 10 |
| CST10x125 | 500 | 125 | 10 |
| CST12x125 | 500 | 125 | 12 |
