Copper Braiding

Copper Braiding also named copper earth strap,
it is use in many different forms and components due to its strength,
flexibility and superior ability to handle large currents at low voltages.

Send Inquiry
Description

Description

Copper Braiding

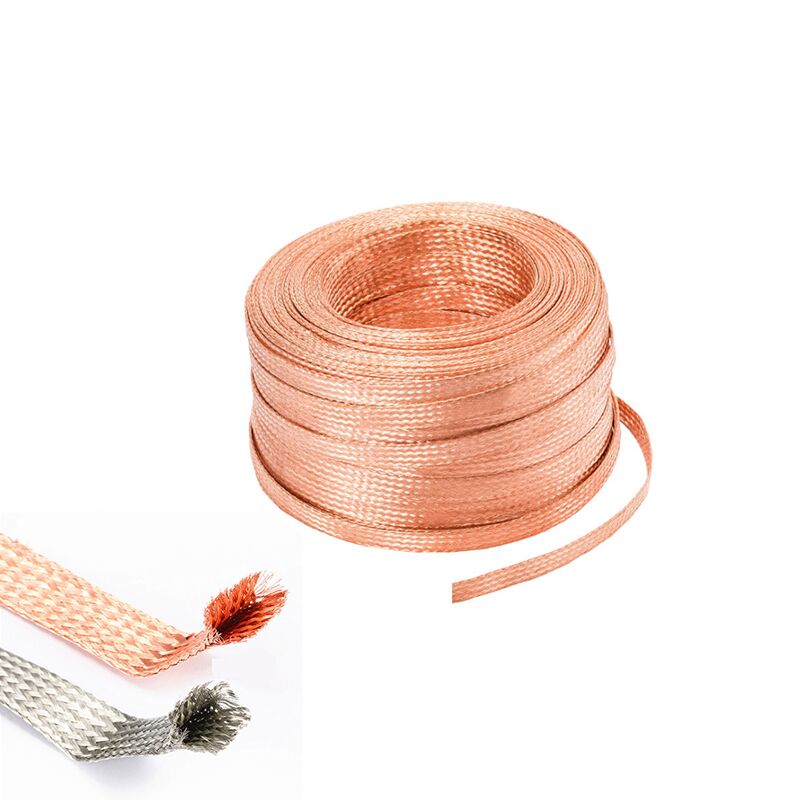

Description of Copper Braiding

Copper Braiding also named copper earth strap,it is use in many different forms and components due to its strength, flexibility and superior ability to handle large currents at low voltages.The Copper Braiding made up of a tight weave of multi-strand, soft drawn copper.The flexibility of the braid is determined by the diameter of the copper wire. The smaller the wire the greater the flexibility and the larger the volume occupied by the braid and the more expensive the braid becomes.

Types of copper earth strap

  • Flat Copper Braid
  • Tuber Copper Braid
  • Copper Braid
  • Copper tinned Braid

Advantage of Grounding Straps

  • Highly Abrasion & UV Resistant
  • Can be Used as Grounding Straps

Copper Braiding

Cross-section
(mm²)
structure outer dimension calculating weight (kg/km)
standard Cross-section (mm²) calculating Cross-section (mm²) layers*No.of strands*No.of wires/singlewire diameter (mm) width(mm) thickness(mm)
2 2.12 24X5X1/0.15 5 0.6 21
2.5 2.54 24X6X1/0.15 6 0.7 25.4
4 4.24 24X10X1/0.15 8 0.8 42
4 3.81 36X6X1/0.15 10 0.7 38
6 6.36 36X10X1/0.15 12 0.8 63
8 8.48 48X10X1/0.15 13 0.8 85
10 10.17 48X12X1/0.15 15 1 102
10 10.6 40X15X1/0.15 15 1.2 106
12 12.72 48X15X1/0.15 20 1.2 127
16 16.96 48X20X1/0.15 22 1.3 170
20 21.2 48X25X1/0.15 25 1.4 212
25 25.43 48X30X1/0.15 30 1.5 254
25 25.43 48X15X2/0.15 20 2.5 254
35 33.93 64X30X1/0.15 40 1.5 340
35 33.93 48X20X2/0.15 25 2.6 340
50 50.87 64X45X1/0.15 50 1.8 510
50 50.87 48X30X2/0.15 30 3 510
50 50.87 48X20X3/0.15 25 4 510
70 70.66 80X50X1/0.15 70 2 706
70 67.83 64X30X2/0.15 40 3 680
75 76.34 48X30X3/0.15 32 4.5 763
100 101.72 96X60X1/0.15 100 2 1017
100 101.72 64X45X2/0.15 52 4 1017
100 101.72 48X30X4/0.15 35 6 1017
120 118.68 96X70X1/0.15 120 2.5 1190
120 122.92 48X30X4+48x25x1/0.15 37 8 1230

Customiaztion available for special dimension,shapes and structure.We can according to your drawing customized.
