Description

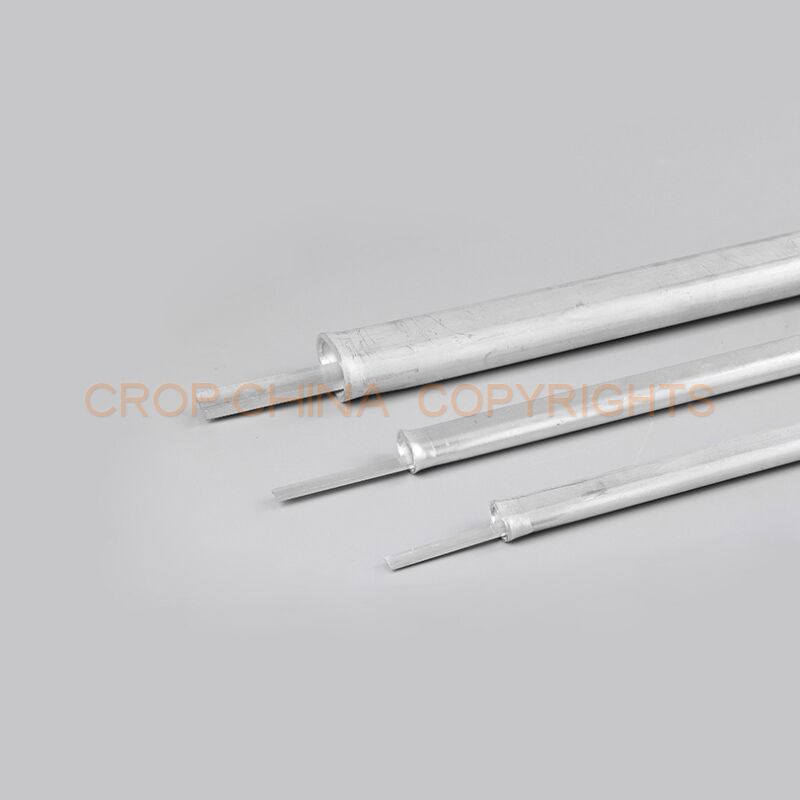

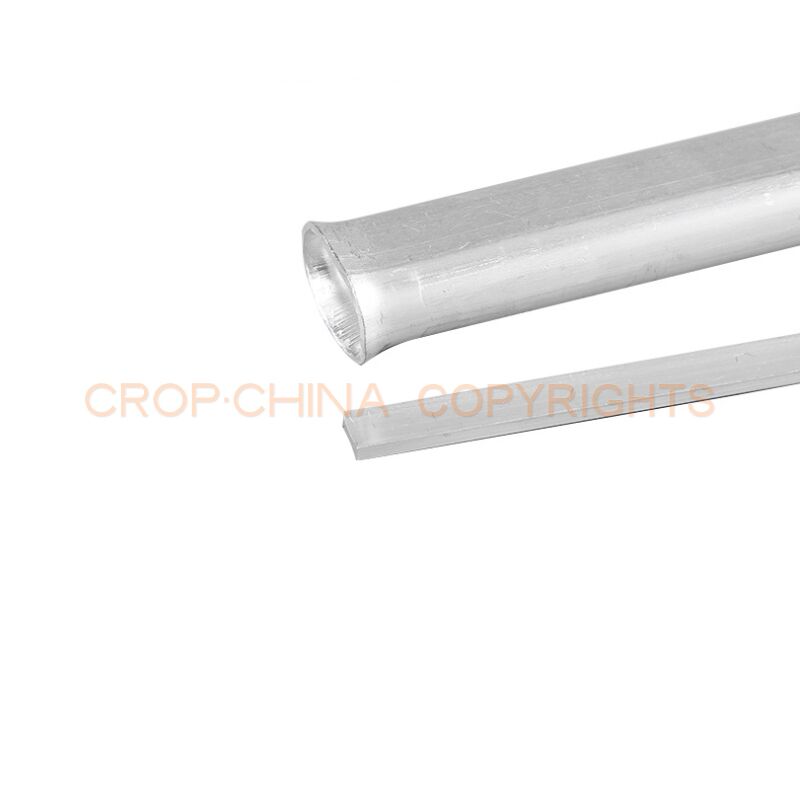

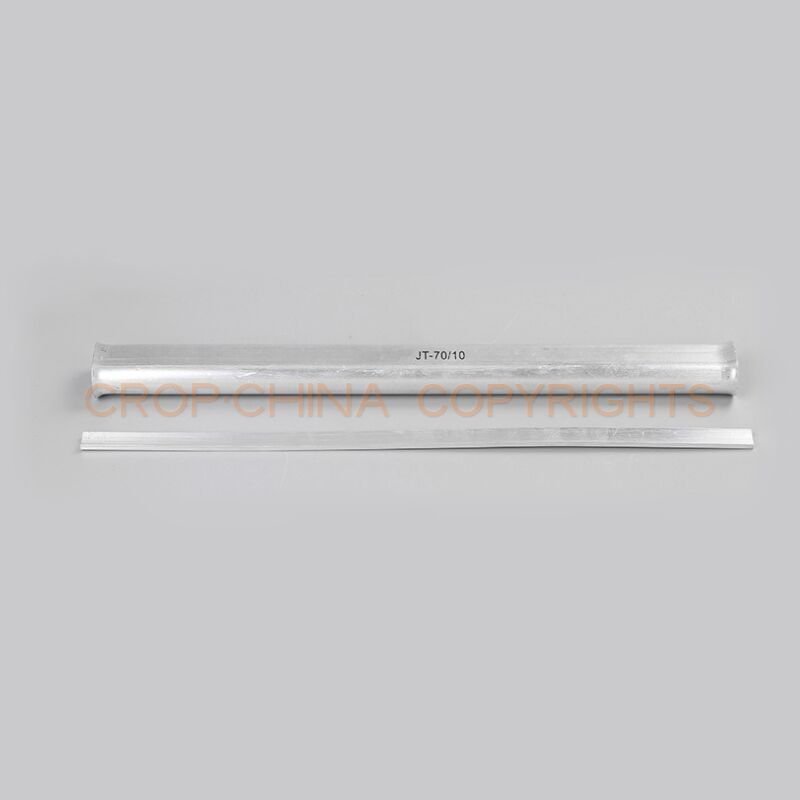

Description of high strength compression splice
High strength compression splice are also named joint sleeve,splice joint are used for splicing or repairing conductor of overhead transmission and distribution lines.tension joint provide a reliable,economical,and easy to install splicing method for overhead transmission and distribution lines.
compression splice for ACSR conductor not only satisfy the basic tension requirements, but also deal with the problems of “cold flow” of aluminum and the oxide file which forms on the strands.The DC resistance of cable sleeve must be less than that of the equi-length conductor,the temperature rise of all joint sleeve must be less than the splicing conductor.The slip strength of the compressive sleeve must be less than 95% of the rated strength of conductor.
Features of compression splice
Easy to install,just for use with CRIMP tools only.
For ACSR,compact,5005,6201 and ACAR partial tension (40% tension rating) conductor jumper splicing.
Aluminum alloy conductor recommendations include 5005 and ACAR having the same diameter as a given ACSR conductor shown below. In addition, compressed (compact) conductor sizes within the same decimal conductor range are recommended.
Suitable conductor of joint sleeve
ACSR conductor
Material of splice joint
Sleeve of inner: Aluminum
Sleeve of outer: Aluminum

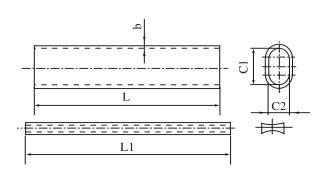

| Type | Suitable Conductor | Dimensions (mm) | Grip Strength (> kN) | ||||
|---|---|---|---|---|---|---|---|
| b | C1 | C2 | L | L1 | |||
| JTB-35/6 | LGJ-35/6 | 2.1 | 18.6 | 8.8 | 170 | 180 | 12 |
| JTB-50/8 | LGJ-50/8 | 2.3 | 22.0 | 10.5 | 210 | 220 | 16 |
| JTB-70/10 | LGJ-70/10 | 2.6 | 26.0 | 12.5 | 250 | 260 | 22 |
| JTB-95/15 | LGJ-95/15 | 2.6 | 31.0 | 15.0 | 260 | 270 | 33 |
| JTB-95/20 | LGJ-95/20 | 2.6 | 31.5 | 15.2 | 260 | 270 | 35 |
| JTB-120/7 | LGJ-120/7 | 3.1 | 33.0 | 16.0 | 300 | 310 | 26 |
| JTB-120/20 | LGJ-120/20 | 3.1 | 35.0 | 17.0 | 300 | 310 | 39 |
| JTB-150/8 | LGJ-150/8 | 3.1 | 36.0 | 17.5 | 310 | 320 | 31 |
| JTB-150/20 | LGJ-150/20 | 3.1 | 37.0 | 18.0 | 310 | 320 | 44 |
| JTB-150/25 | LGJ-150/25 | 3.1 | 39.0 | 19.0 | 310 | 320 | 51 |
| JTB-185/10 | LGJ-185/10 | 3.4 | 40.0 | 19.5 | 350 | 360 | 39 |
| JTB-185/25 | LGJ-185/25 | 3.4 | 43.0 | 21.0 | 350 | 360 | 56 |
| JTB-185/30 | LGJ-185/30 | 3.4 | 43.0 | 21.0 | 350 | 360 | 61 |
| JTB-210/10 | LGJ-210/10 | 3.6 | 43.0 | 21.0 | 360 | 370 | 43 |
| JTB-210/25 | LGJ-210/25 | 3.6 | 44.0 | 21.0 | 360 | 370 | 63 |
| JTB-210/35 | LGJ-210/35 | 3.6 | 45.0 | 22.0 | 400 | 410 | 71 |
| JTB-240/30 | LGJ-240/30 | 3.9 | 48.0 | 23.5 | 370 | 380 | 72 |
| JTB-240/40 | LGJ-240/40 | 3.9 | 48.0 | 23.5 | 460 | 470 | 79 |
