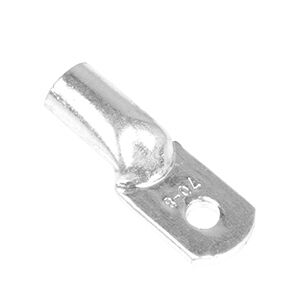

Cable terminal JGA copper tinned new type
Description
Cable terminal JGA suitable for the connection of copper conductor section from 25 to 630sqmm.
Cable terminal JGA made of 99.9% pure copper tube T2 and with tinned coating.
Working temperature:-55℃ to 150℃
| Model | Cable mm² | Stud Hole | B | D | A | C | J |
| JGA-25-8 | 25 | 8 | 12 | 14 | 7.2 | 9.5 | 33 |
| JGA-35-8 | 35 | 8 | 14 | 16 | 8.2 | 11 | 38 |
| JGA-50-10 | 50 | 10 | 16 | 18 | 9.5 | 12.5 | 45 |
| JGA-70-10 | 70 | 10 | 20 | 21 | 11.2 | 14.5 | 52 |
| JGA-95-12 | 95 | 12 | 23 | 25 | 13.4 | 17 | 58 |
| JGA-120-12 | 120 | 12 | 22 | 29 | 15.7 | 20.5 | 63 |
| JGA-150-12 | 150 | 12 | 26 | 32 | 17 | 22.5 | 70 |
| JGA-185-16 | 185 | 16 | 32 | 35 | 18.4 | 24 | 75 |
| JGA-240-16 | 240 | 16 | 38 | 40 | 21.4 | 28 | 90 |
| JGA-300-16 | 300 | 16 | 42 | 45 | 23.8 | 31 | 98 |
| JGA-400-16 | 400 | 16 | 44 | 50 | 27.6 | 35 | 110 |
| JGA-500-16 | 500 | 16 | 48 | 56 | 30.6 | 39 | 120 |
| JGA-630-20 | 630 | 20 | 56 | 65 | 34 | 45 | 140 |
