Description

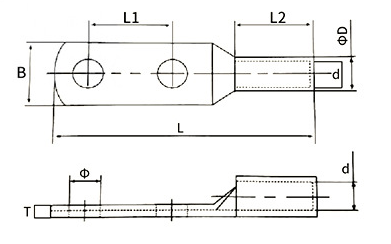

Model | Dimension(mm) | ||||||
---|---|---|---|---|---|---|---|
φ | D | d | L | L1 | L2 | T | |
SC2-6-4 | 4 | 6 | 4.3 | 75 | 35 | 17 | 1.7 |
SC2-10-6 | 6 | 7.5 | 5.5 | 80 | 40 | 19 | 2 |
SC2-16-6 | 6 | 8 | 6 | 100 | 45 | 25 | 2 |
SC2-25-8 | 8 | 9.5 | 7 | 100 | 45 | 25 | 2.5 |
SC2-35-10 | 10 | 11 | 8.5 | 105 | 45 | 30 | 2.5 |
SC2-50-12 | 12 | 13 | 10.2 | 110 | 45 | 35 | 2.8 |
SC2-70-12 | 12 | 15 | 12 | 120 | 45 | 35 | 3 |
SC2-95-12 | 12 | 17 | 14 | 130 | 45 | 40 | 3 |
SC2-120-12 | 12 | 19.5 | 16 | 135 | 45 | 42 | 3.5 |
SC2-150-12 | 12 | 21 | 17.2 | 135 | 45 | 45 | 3.8 |
SC2-185-12 | 12 | 22 | 18.2 | 150 | 45 | 50 | 3.8 |
SC2-240-12 | 12 | 26 | 22 | 150 | 45 | 50 | 4 |
SC2-300-12 | 12 | 30.5 | 25 | 165 | 45 | 60 | 5.5 |
SC2-400-12 | 12 | 35.5 | 30 | 180 | 45 | 60 | 5.5 |
SC2-500-12 | 12 | 38 | 31 | 180 | 45 | 65 | 7 |
SC2-630-12 | 12 | 44 | 36 | 200 | 45 | 70 | 8 |
